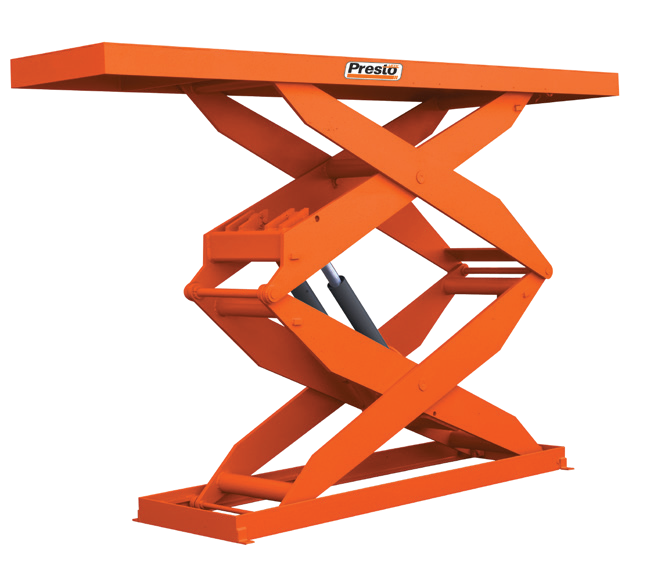

DXS Compact Double-Scissor Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

DXS Compact Double-Scissor Lift Tables — manufacturer catalog illustrationDXS Compact Double-Scissor Lift Tables — manufacturer catalog illustrationDXS Compact Double-Scissor Lift Tables — manufacturer catalog illustration

Specifications & options

Model / configurationLoad CapacityRaised HeightLowered HeightStd. Base & PlatformMaximum PlatformRise TimeStandard MotorStd. Voltage/ Phase/HzShipping Weight
DXS30-5500 lbs36-3/4"6-3/4"16 x 24"30 x 36"16 sec1/3 HP115/1/60350 lbs
DXS30-101000 lbs36-3/4"6-3/4"16 x 24"30 x 36"18 sec1/3 HP115/1/60360 lbs
DXS36-101000 lbs43-1/2"7-1/2"24 x 36"36 x 48"40 sec1/2 HP115/1/60460 lbs
DXS36-151500 lbs43-1/2"7-1/2"24 x 36"36 x 48"42 sec1/2 HP115/1/60480 lbs
DXS48-101000 lbs55-1/2"7-1/2"24 x 48"36 x 60"50 sec1/2 HP115/1/60600 lbs
DXS48-151500 lbs55-1/2"7-1/2"24 x 48"36 x 60"54 sec1/2 HP115/1/60650 lbs
DXS48-202000 lbs57-1/2"9-1/2"24 x 40"36 x 54"42 sec1 HP115/1/60800 lbs
DXS48-404000 lbs60"12"30 x 42"48 x 60"16 sec3 HP230, 460/3/601250 lbs
DXS64-252500 lbs76-1/2"12-1/2"24 x 53"42 x 66"16 sec3 HP230, 460/3/601100 lbs
DXS60-505000 lbs74"14"30 x 53"48 x 66"30 sec3 HP230, 460/3/601800 lbs
DXS72-202000 lbs84-1/2"12-1/2"20 x 53"36 x 66"92 sec1 HP115/1/601250 lbs
DXS72-505000 lbs86"14"32 x 57"54 x 72"36 sec3 HP230, 460/3/602000 lbs
ManufacturerPresto
Catalog rangeDXS Compact Double-Scissor Lift Tables
Documented configurations12

Source: Presto General Catalog 2026, PDF page 23. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

DXS tables use stacked scissor geometry to raise compact decks across several travel and capacity groups.

Use individual rows, including the listed 5000 lb DXS72-50 rather than the lower maximum in the prose. DXS30 has powered lowering; other models are power up and gravity down. DXS36-20 has an optional 18 x 32 in minimum deck/base requiring a remote power unit.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 23. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a DXS Compact Double-Scissor Lift Tables configuration?

Use individual rows, including the listed 5000 lb DXS72-50 rather than the lower maximum in the prose. DXS30 has powered lowering; other models are power up and gravity down. DXS36-20 has an optional 18 x 32 in minimum deck/base requiring a remote power unit.

What should I provide for a DXS Compact Double-Scissor Lift Tables quote?

For DXS Compact Double-Scissor Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
