| Model / configuration | Lifting Capacity | Vertical Travel | Raised Height | Platform W x D | Backrest W x H | Wheels | Lifting Speed Empty | Battery Power | Battery Charger | Shipping Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| FLNB200 | 200 lbs | 37" | 38 3/4" | 20" x 16" | 20" x 22" | 8" x 2" | 10 sec | (2) 12V 7Ahr | 115 Volt | 115 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | FLNB200 Elevating Hand Truck |
| Documented configurations | 1 |
| Rated capacity | 200 lbs |
| Vertical Travel | 37" |
| Raised Height | 38 3/4" |
| Platform W x D | 20" x 16" |
| Backrest W x H | 20" x 22" |
| Wheels | 8" x 2" |
| Lifting Speed Empty | 10 sec |
| Battery Power | (2) 12V 7Ahr |
| Battery Charger | 115 Volt |
| Shipping Weight | 115 lbs |
Source: Presto General Catalog 2026, PDF page 3. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

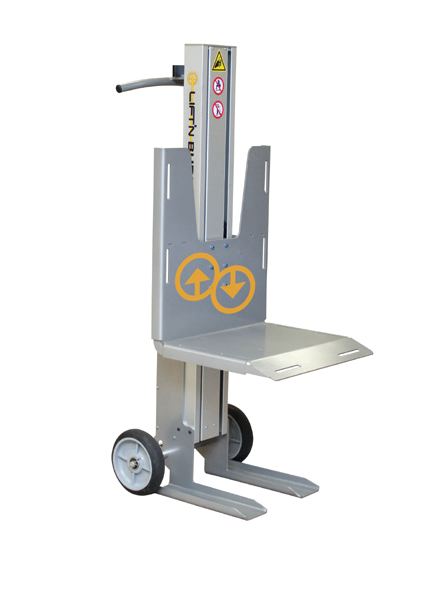

Lift and transport cartons on a powered two-wheel hand truck with a lifting platform and tall backrest.
Check the 20 x 16 in platform against the load footprint and the 37 in travel against the loading height. FLNB200 is rated at 200 lb and uses two 12V batteries.
Reference: Presto General Catalog 2026, PDF page 3. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Check the 20 x 16 in platform against the load footprint and the 37 in travel against the loading height. FLNB200 is rated at 200 lb and uses two 12V batteries.
For FLNB200 Elevating Hand Truck, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
