Equipment details
Presto M800 Hand-Pump Straddle Stackers
M800 stackers raise loads through a hand-operated hydraulic pump on an adjustable-fork straddle chassis.
- Manufacturer
- Presto
- Catalog range
- M800 Hand-Pump Straddle Stackers
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Dimensions H x W x L | Base Legs I.D. / O.D. | Wheel Dia. Front/Rear | Shipping Weight |
|---|---|---|---|---|---|---|---|
| M152 | 1000 lbs | 52" | 5-1/4" | 66 x 25 x 38" | 15" / 21" | 5" / 4" | 270 lbs |
| M166 | 1000 lbs | 66" | 5-1/4" | 80 x 25 x 38" | 15" / 21" | 5" / 4" | 290 lbs |
| M178 | 1000 lbs | 78" | 5-1/4" | 92 x 25 x 38" | 15" / 21" | 5" / 4" | 300 lbs |
| M352 | 1000 lbs | 52" | 5-1/4" | 66 x 33 x 44" | 24" / 30" | 5" / 4" | 350 lbs |
| M366 | 1000 lbs | 66" | 5-1/4" | 80 x 33 x 44" | 24" / 30" | 5" / 4" | 370 lbs |
| M378 | 1000 lbs | 78" | 5-1/4" | 92 x 33 x 44" | 24" / 30" | 5" / 4" | 390 lbs |
| M252 | 1000 lbs | 52" | 5-1/4" | 66 x 27 x 42" | 15" / 21" | 5" / 4" | 340 lbs |
| M266 | 1000 lbs | 66" | 5-1/4" | 80 x 27 x 42" | 15" / 21" | 5" / 4" | 360 lbs |
| M278 | 1000 lbs | 78" | 5-1/4" | 92 x 27 x 42" | 15" / 21" | 5" / 4" | 390 lbs |
| M452 | 1000 lbs | 50" | 3-1/4" | 66 x 33 x 49" | 26" / 32" | 5" / 4" | 370 lbs |
| M466 | 1000 lbs | 64" | 3-1/4" | 80 x 33 x 49" | 26" / 32" | 5" / 4" | 390 lbs |
| M478 | 1000 lbs | 76" | 3-1/4" | 92 x 33 x 49" | 26" / 32" | 5" / 4" | 410 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | M-Series Foot-Pump Manual Stackers |
| Documented configurations | 12 |
| Rated capacity | 1000 lbs |
| Wheel Dia. Front/Rear | 5" / 4" |
Source: Presto General Catalog 2026, PDF page 8. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

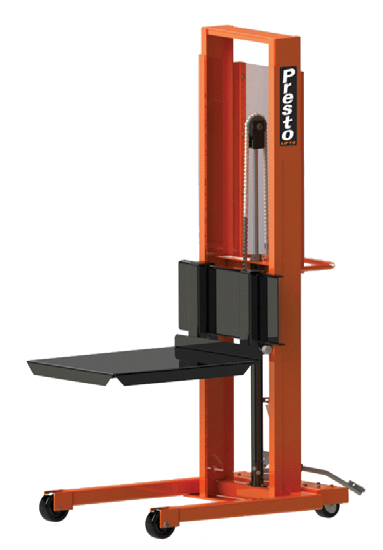

M-series stackers use a foot-operated hydraulic pump and controlled lowering for manual material positioning.
M100 and M300 have platforms; M200 and M400 have adjustable forks. Load-center requirements vary by series. Compare fork or deck geometry, straddle clearance and raised height together.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 8. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a M-Series Foot-Pump Manual Stackers configuration?
M100 and M300 have platforms; M200 and M400 have adjustable forks. Load-center requirements vary by series. Compare fork or deck geometry, straddle clearance and raised height together.
What should I provide for a M-Series Foot-Pump Manual Stackers quote?
For M-Series Foot-Pump Manual Stackers, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
