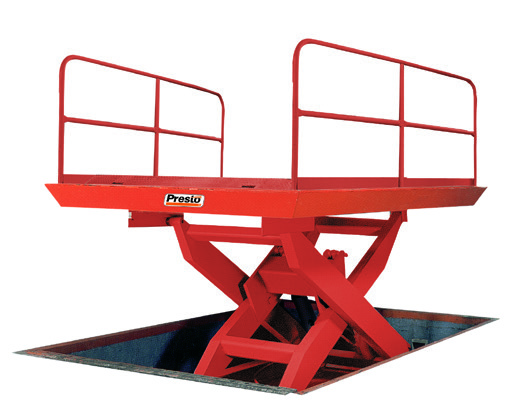

Presto ECOA HLD SizzrDok Loading Dock Lifts
HLD SizzrDok provides heavy-duty loading platforms with multiple deck-size arrangements within each capacity series.
- Manufacturer
- Presto
- Catalog range
- ECOA HLD SizzrDok Loading Dock Lifts
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Vertical Travel (in) | Capacity (lbs.) | Maximum axle load — ends (lb) | Maximum axle load — sides (lb) | Standard Platform Size W x L (in) | Maximum Platform Size W x L (in) | Low Height (in) | Raised Height (in) | Up Speed Approx. (sec) | Standard Motor (HP) | Ship Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PDL-60-50 | 59 | 5000 | 2500 | 2500 | 72 x 96 | 96 x 120 | 8 | 67 | 27 | 3.2 | 2800 |
| PDL-60-60 | 59 | 6000 | 3000 | 3000 | 72 x 96 | 96 x 120 | 8 | 67 | 27 | 3.2 | 2900 |
| PDL-60-80 | 59 | 8000 | 6000 | 4000 | 72 x 96 | 96 x 120 | 10 | 69 | 42 | 3.2 | 3200 |
| PDL-60-100 | 59 | 10000 | 7500 | 5000 | 72 x 120 | 96 x 144 | 16 | 75 | 34 | 5 | 5000 |
| PDL-60-120 | 59 | 12000 | 9000 | 6000 | 72 x 120 | 96 x 144 | 16 | 75 | 36 | 5 | 5200 |
| PDL-60-160 | 59 | 16000 | 12000 | 8000 | 72 x 120 | 96 x 144 | 16 | 75 | 50 | 5 | 5500 |
| PDL-60-200 | 59 | 20000 | 15000 | 10000 | 72 x 132 | 96 x 144 | 22 | 81 | 60 | 5 | 7900 |
| Manufacturer | Presto |
|---|---|
| Catalog range | PDL Loading Dock Lift Platforms |
| Documented configurations | 7 |
| Vertical Travel (in) | 59 |
Source: Presto General Catalog 2026, PDF page 36. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
PDL lifts provide permanent pit- or pad-mounted freight transfer between loading elevations, in standard- and heavy-duty groups.
Check travel, deck size and end/side axle loads for the truck crossing the platform. Lifting capacity is a separate rating. Include approach heights, pit or pad details and electrical supply in the quote.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 36. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a PDL Loading Dock Lift Platforms configuration?
Check travel, deck size and end/side axle loads for the truck crossing the platform. Lifting capacity is a separate rating. Include approach heights, pit or pad details and electrical supply in the quote.
What should I provide for a PDL Loading Dock Lift Platforms quote?
For PDL Loading Dock Lift Platforms, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
