| Model / configuration | Load Capacity | Raised Height | Lowered Height | Platform Size | Shipping Weight |
|---|---|---|---|---|---|
| PL36 | 2000 lbs | 36" | 24" | 24 x 36" | 315 lbs |
| PL48 | 2000 lbs | 48" | 30" | 24 x 36" | 330 lbs |
| PL60 | 2000 lbs | 60" | 36" | 24 x 36" | 350 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | PL Hydraulic Cantilever Tables |
| Documented configurations | 3 |
| Rated capacity | 2000 lbs |
| Platform Size | 24 x 36" |
Source: Presto General Catalog 2026, PDF page 17. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

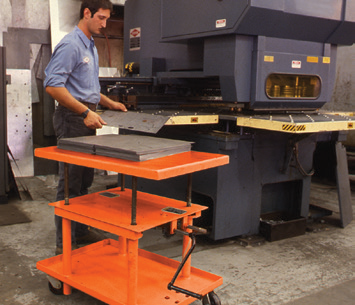

PL hydraulic tables use a cantilever platform and mobile chassis to provide access beneath and around the work surface.
Choose PL36, PL48 or PL60 by raised height and platform dimensions. Review the 1000 lb rating and load position with the workpiece, including overhang and transfer needs.
Reference: Presto General Catalog 2026, PDF page 17. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Choose PL36, PL48 or PL60 by raised height and platform dimensions. Review the 1000 lb rating and load position with the workpiece, including overhang and transfer needs.
For PL Hydraulic Cantilever Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
Equipment details
BP post tables raise a solid work surface through a battery-operated post-lift mechanism, leaving access around the table for assembly.
Equipment details
P-series mechanical post tables provide a manually adjusted work surface for material placement and workstation setup.
