| Model / configuration | Load Capacity | Raised Height | Lowered Height | Dimensions H x W x L | Fork O.D. | Fork Dimensions | Base/Legs I.D./O.D. | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| PPS2600-62NAS | 2600 lbs | 62" | 2-3/4" | 79 x 48-58 x 68" | 12-1/2" - 27" | 4" x 42" | 40-48" / 50-58" | 1340 lbs |
| PPS2600-101AS | 2600 lbs | 101" | 2-3/4" | 73 - 123 x 48-58 x 72" | 12-1/2" - 27" | 4" x 42" | 40-48" / 50-58" | 1585 lbs |
| PPS2600-125AS | 2600 lbs | 125" | 2-3/4" | 85 - 147 x 48-58 x 73" | 12-1/2" - 27" | 4" x 42" | 40-48" / 50-58" | 1630 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | PowerStak PPS2600 Straddle Stackers |
| Documented configurations | 3 |
| Rated capacity | 2600 lbs |
| Lowered Height | 2-3/4" |
| Fork O.D. | 12-1/2" - 27" |
| Fork Dimensions | 4" x 42" |
| Base/Legs I.D./O.D. | 40-48" / 50-58" |
Source: Presto General Catalog 2026, PDF page 4. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

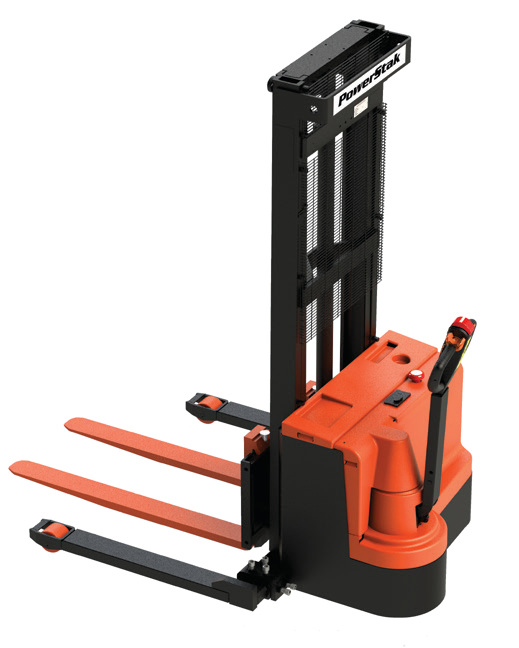

PPS2600 straddle stackers combine powered travel and lifting with adjustable base legs and forged forks.
Choose mast height for the rack level and verify leg clearance around the pallet. All three rows list 2600 lb capacity at a 24 in load center. Use the table's leg dimensions when selecting a configuration; the section heading gives a broader range. Source photographs identify older PPS2200 examples and illustrate the equipment layout; confirm the PPS2600 configuration.
Reference: Presto General Catalog 2026, PDF page 4. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Choose mast height for the rack level and verify leg clearance around the pallet. All three rows list 2600 lb capacity at a 24 in load center. Use the table's leg dimensions when selecting a configuration; the section heading gives a broader range. Source photographs identify older PPS2200 examples and illustrate the equipment layout; confirm the PPS2600 configuration.
For PowerStak PPS2600 Straddle Stackers, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
Equipment details

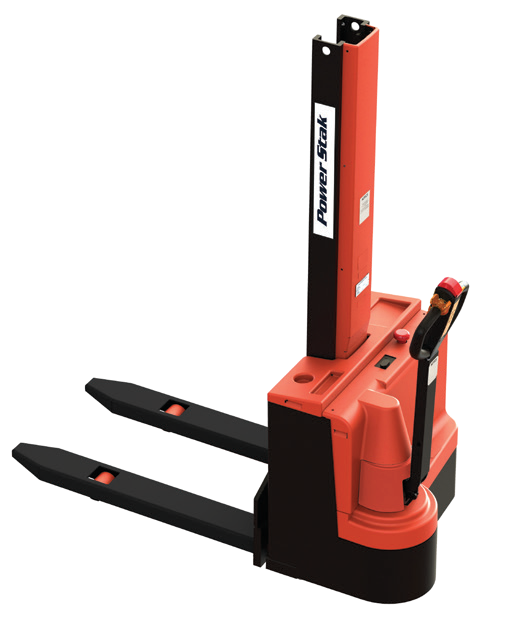

The PPS2600 fork-over range provides fully powered handling for open-bottom pallets and skids, with two overall fork-width choices.
Equipment details

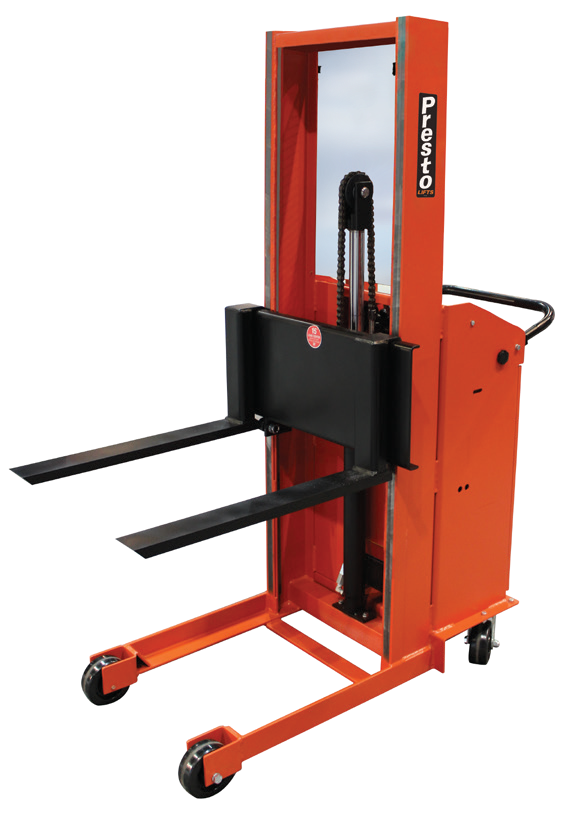

B600 stackers provide battery lifting on a manually moved non-straddle base, with 1000 and 2000 lb variants.
Equipment details

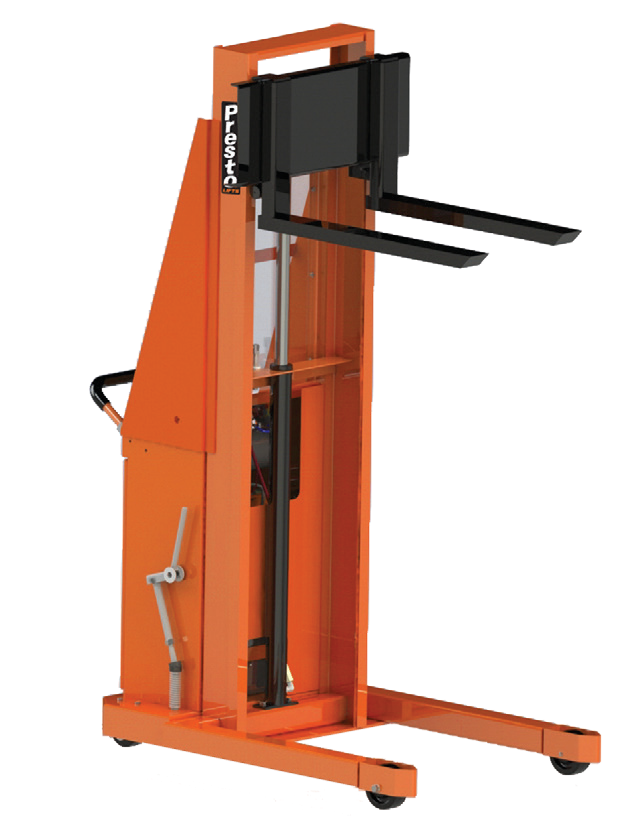

B800 and BT800 straddle stackers use fixed or telescoping masts for powered pallet lifting.
