Equipment details

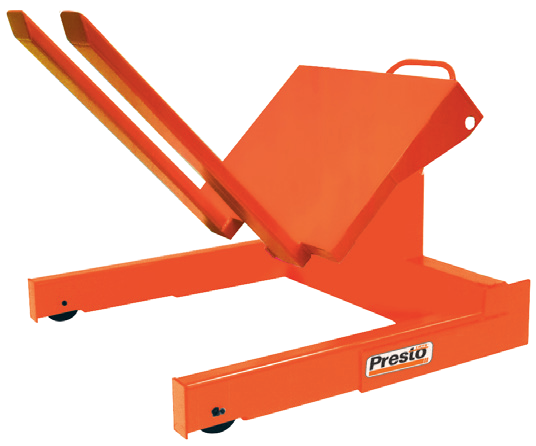

Presto ZRT Floor-Level Container Tilters
ZRT accepts containers close to the floor and rotates them through a large angle to improve access to their contents.
- Manufacturer
- Presto
- Catalog range
- ZRT Floor-Level Container Tilters
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Tilt Capacity | Lowered Height | Degree of Tilt | Dimensions W x L | Fork Length | Fork O.D. | Lifting Speed | Shipping Weight |
|---|---|---|---|---|---|---|---|---|
| PT-20 | 2000 lbs | 3-1/2" | 85˚ | 34 x 54" | 40" | 24-1/2" | 37 sec | 700 lbs |
| PT-40 | 4000 lbs | 3-1/2" | 85˚ | 34 x 61" | 40" | 26-1/8" | 30 sec | 900 lbs |
| PTS50-20 | 2000 lbs | 3-1/2" | 85˚ | 57 x 54" | 40" | 24" | 37 sec | 950 lbs |
| PTS50-40 | 4000 lbs | 3-1/2" | 85˚ | 57 x 58" | 40" | 25" | 30 sec | 1150 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | PT and PTS Portable Container Tilters |
| Documented configurations | 4 |
| Lowered Height | 3-1/2" |
| Degree of Tilt | 85˚ |
| Fork Length | 40" |
Source: Presto General Catalog 2026, PDF page 28. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
PT and PTS use battery-powered rotation on a mobile chassis, with straddle configurations for containers that have reinforcing leg bars.
Select non-straddle or 50 in inside-width straddle geometry before comparing load ratings. The source lists 85° tilt and a floor lock; check support at the full working angle.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 28. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a PT and PTS Portable Container Tilters configuration?
Select non-straddle or 50 in inside-width straddle geometry before comparing load ratings. The source lists 85° tilt and a floor lock; check support at the full working angle.
What should I provide for a PT and PTS Portable Container Tilters quote?
For PT and PTS Portable Container Tilters, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
