Equipment details
Presto Stacker Roll and Coil Rams
Ram attachments replace forks for handling rolls and coils, with round and square sections for different stacker back plates.
- Manufacturer
- Presto
- Catalog range
- Stacker Roll and Coil Rams
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Attachment / control | Documented specifications | Compatibility |
|---|---|---|---|
| RC-10 | Hand remote control | Coil cord; factory installed | Confirm host stacker and cord configuration |
| RC-20 | Hand remote control | Coil cord; factory installed | Confirm host stacker and cord configuration |
| FC-10 | Foot remote control | Coil cord; factory installed | Confirm host stacker and cord configuration |

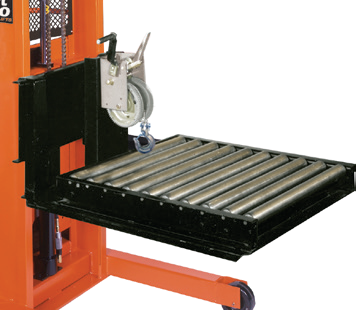

| P-6 | Die puller | 27 x 30 in roller area; 32 x 30 in slip-on platform; 1000 lb capacity; 185 lb weight | 24 in load center required |

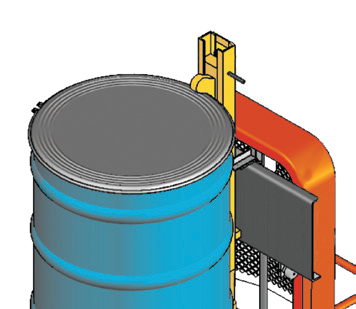

| DG-30 | Drum grabber | 30 or 55 gallon steel or fiber drums; parrot-beak mechanism | Back plate of straddle fork model stacker |

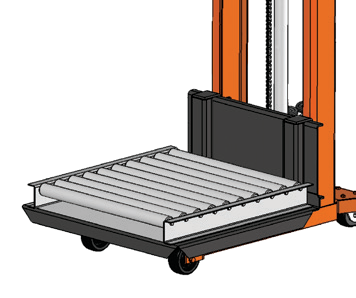

| R-5 | Roller bed | 27 x 30 in roller area; 32 x 36 in slip-on platform; 1000 lb capacity; 145 lb weight; rollers on 3 in centers | 24 in load center required |
| Manufacturer | Presto |
|---|---|
| Catalog range | Stacker Controls and Handling Attachments |
| Documented configurations | 6 |
Source: Presto General Catalog 2026, PDF page 13. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
Named stacker options include remote controls, a die puller, a drum grabber and a roller bed for specialized handling tasks.
P-6 and R-5 require a 24 in load center and are listed at 1000 lb capacity. DG-30 handles 30 or 55 gallon steel or fiber drums; no load rating is stated for it on this page. Confirm every attachment against the host model.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 13. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a Stacker Controls and Handling Attachments configuration?
P-6 and R-5 require a 24 in load center and are listed at 1000 lb capacity. DG-30 handles 30 or 55 gallon steel or fiber drums; no load rating is stated for it on this page. Confirm every attachment against the host model.
What should I provide for a Stacker Controls and Handling Attachments quote?
For Stacker Controls and Handling Attachments, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
