| Model / configuration | Load Capacity (lb) | Platform Height (in, source reference) | Platen Height (in, source reference) | Degree of Tilt (degrees) | Min. Platform | Max. Platform | Max. Platen | Standard Voltage |
|---|---|---|---|---|---|---|---|---|
| UT90-10-L | 1000 | 8.5 | 6" | 90 | 24" x 32" | 48" x 72" | 48" x 48" | 115/1/60 |
| UT90-20-L | 2000 | 8.5 | 6" | 90 | 36" x 42" | 72" x 72" | 72" x 48" | 115/1/60 |
| UT90-40-L | 4000 | 8.5 | 6" | 90 | 36" x 42" | 72" x 60" | 72" x 36" | 115/1/60 |
| UT90-60-L | 6000 | 10.5 | 6" | 90 | 32" x 48" | 72" x 54 | 72" x 30" | 115/1/60 |
| UT90-10-H | 1000 lbs | 25" | 6" | 90° | 24" x 48" | 48" x 60" | 48" x 48" | 115/1/60 |
| UT90-20-H | 2000 lbs | 25" | 6" | 90° | 36" x 48" | 48" x 84 | 48" x 48" | 460/3/60 |
| UT90-40-H | 4000 lbs | 25" | 6" | 90° | 36" x 48" | 48" x 84 | 48" x 48" | 460/3/60 |
| UT90-60-H | 6000 lbs | 25" | 6" | 90° | 36" x 48" | 48" x 84 | 48" x 48" | 460/3/60 |
| UT90-80-H | 8000 lbs. | 25" | 6" | 90° | 48 x 48" | 60" x 96 | 60" x 60" | 460/3/60 |
| UT90-100-H | 10000 lbs | 25" | 6" | 90° | 48 x 48" | 60" x 96 | 60" x 60" | 460/3/60 |
| HUE-02-90 | 2000 lbs | 8.5 | 8.5 | 90° | 36" x 36" | 24" x 36" | 48" x 48" | 460/3/60 |
| HUE-04-90 | 4000 lbs | 8.5 | 8.5 | 90° | 36" x 36" | 24" x 36" | 48" x 48" | 460/3/60 |
| HUE-06-90 | 6000 lbs | 10.5 | 10.5 | 90° | 36" x 36" | 24" x 36" | 48" x 48" | 460/3/60 |
| HUE-08-90 | 8000 lbs | 10.5 | 10.5 | 90° | 36" x 36" | 30 x 50" | 48" x 72" | 460/3/60 |
| HUE-10-90 | 10000 lbs | 10.5 | 10.5 | 90° | 36" x 36" | 30 x 50" | 48" x 48" | 460/3/60 |
| Manufacturer | Presto |
|---|---|
| Catalog range | UT90 and ECOA HUE 90-Degree Upenders |
| Documented configurations | 15 |
Source: Presto General Catalog 2026, PDF page 30. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

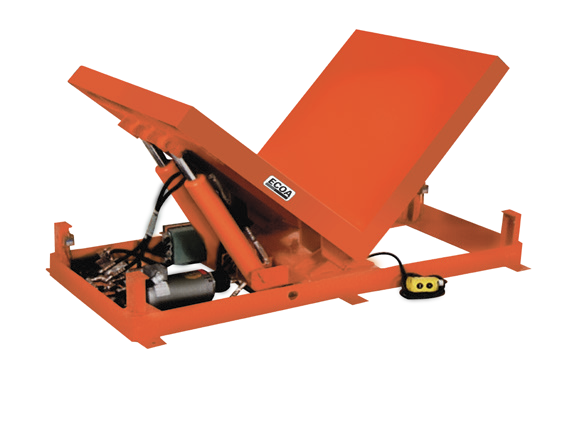

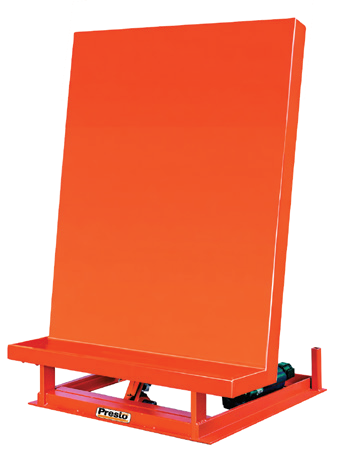

UT90 and ECOA HUE rotate supported loads through 90° for orientation changes, with different platform and platen arrangements.
Compare load rating against both supporting surfaces. The source measures the starred platform and platen heights when parallel to the floor. Some HUE minimum/maximum deck dimensions conflict in the source table; obtain the current selected-model drawing before setting transfer heights or choosing a deck.
Reference: Presto General Catalog 2026, PDF page 30. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare load rating against both supporting surfaces. The source measures the starred platform and platen heights when parallel to the floor. Some HUE minimum/maximum deck dimensions conflict in the source table; obtain the current selected-model drawing before setting transfer heights or choosing a deck.
For UT90 and ECOA HUE 90-Degree Upenders, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
