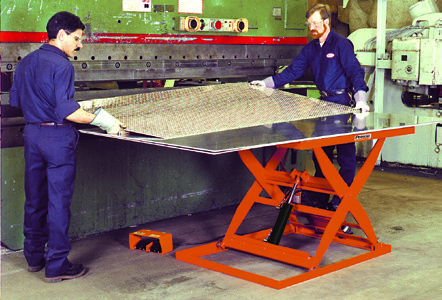

XL Standard-Duty Scissor Lift Tables — manufacturer catalog illustration

Open an image to inspect its original detail.

XL Standard-Duty Scissor Lift Tables — manufacturer catalog illustration

Specifications & options

Model / configurationLoad CapacityRaised HeightLowered HeightEnd/Side CapacityStd. Base & PlatformMax PlatformLifting SpeedStd. MotorStd. Voltage/ Phase/HzShipping Weight
XL24-202000 lbs31"7-1/4"2000 lbs24 x 36"48 x 60"15 sec1 HP115/1/60550 lbs
XL24-404000 lbs31"7-1/4"4000 lbs24 x 36"48 x 60"27 sec1 HP115/1/60570 lbs
XL24-606000 lbs31"7-1/4"4500 lbs24 x 36"48 x 60"40 sec1 HP115/1/60620 lbs
XL36-202000 lbs43"7-1/4"2000 lbs24 x 48"48 x 72"17 sec1 HP115/1/60690 lbs
XL36-303000 lbs43"7-1/4"3000 lbs24 x 48"48 x 72"30 sec1 HP115/1/60720 lbs
XL36-404000 lbs43"7-1/4"3500 lbs24 x 48"48 x 72"38 sec1 HP115/1/60750 lbs
XL36-505000 lbs43"7-1/4"3500 lbs24 x 48"48 x 72"22 sec1-1/2 HP230, 460/3/60770 lbs
XL36-606000 lbs43"7-1/4"3500 lbs24 x 48"48 x 72"30 sec1-1/2 HP230, 460/3/60790 lbs
XL36-808000 lbs45"9"4000 lbs30 x 60"54 x 84"21 sec3 HP230, 460/3/601350 lbs
XL48-202000 lbs55"7-1/4"2000 lbs24 x 64"48 x 88"19 sec1-1/2 HP230, 460/3/60850 lbs
XL48-404000 lbs55"7-1/4"3500 lbs24 x 64"48 x 88"32 sec1-1/2 HP230, 460/3/60900 lbs
XL48-606000 lbs55"7-1/4"3500 lbs24 x 64"48 x 88"39 sec1-1/2 HP230, 460/3/60950 lbs
XL48-808000 lbs57"9"4000 lbs24 x 66"48 x 96"30 sec3 HP230, 460/3/601350 lbs
XL60-202000 lbs70"10"1000 lbs24 x 86"48 x 120"10 sec3 HP230, 460/3/601300 lbs
XL60-404000 lbs70"10"2000 lbs24 x 86"48 x 120"20 sec3 HP230, 460/3/601375 lbs
XL60-606000 lbs70"10"3000 lbs24 x 86"48 x 120"30 sec3 HP230, 460/3/601450 lbs
XL60-808000 lbs70"10"4000 lbs24 x 86"48 x 120"42 sec3 HP230, 460/3/601700 lbs
ManufacturerPresto
Catalog rangeXL Standard-Duty Scissor Lift Tables
Documented configurations17

Source: Presto General Catalog 2026, PDF page 20. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

XL stationary hydraulic tables cover multiple travel and capacity groups, with model-specific limits for enlarged platforms.

Verify end/side loading separately from total capacity. Check the selected motor and voltage/phase row; platform enlargement does not make all configurations suitable for the same off-center transfer load.

Documentation & drawings

Reference: Presto General Catalog 2026, PDF page 20. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a XL Standard-Duty Scissor Lift Tables configuration?

Verify end/side loading separately from total capacity. Check the selected motor and voltage/phase row; platform enlargement does not make all configurations suitable for the same off-center transfer load.

What should I provide for a XL Standard-Duty Scissor Lift Tables quote?

For XL Standard-Duty Scissor Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
