SKU 7-13764
GKS Robot 40 Lift Battery powered remote controlled transport system with integrated lift table
Battery powered remote controlled transport system with integrated lift table
- Power source
- Battery powered
- Loading height
- 9.8 inch
Open an image to inspect its original detail.
Specifications & options
| Model / configuration | Load Capacity | Raised Height | Lowered Height | Standard Platform | Maximum Platform | Lifting Strokes | Shipping Weight |
|---|---|---|---|---|---|---|---|
| XP24-600 | 600 lbs | 33" | 10" | 20 x 32" | 20 x 32" | 25 | 260 lbs |
| XP24-10 | 1000 lbs | 33" | 9-1/4" | 24 x 36" | 30 x 42" | 35 | 410 lbs |
| XP24-15 | 1500 lbs | 33" | 9-1/4" | 24 x 36" | 30 x 42" | 55 | 415 lbs |
| XP24-20 | 2000 lbs | 41-1/2" | 17-1/2" | 24 x 36" | 48 x 48" | 85 | 750 lbs |
| XP36-10 | 1000 lbs | 45" | 9-1/4" | 24 x 48" | 30 x 54" | 46 | 440 lbs |
| XP36-15 | 1500 lbs | 45" | 9-1/4" | 24 x 48" | 30 x 54" | 69 | 445 lbs |
| XP36-20 | 2000 lbs | 53-1/2" | 17-1/2" | 24 x 48" | 48 x 60" | 130 | 860 lbs |
| WXP24-10 | 1000 lbs | 33-1/4" | 9-1/4" | 36 x 36" | 42 x 42" | 35 | 450 lbs |
| WXP24-15 | 1500 lbs | 33-1/4" | 9-1/4" | 36 x 36" | 42 x 42" | 55 | 455 lbs |
| WXP36-10 | 1000 lbs | 45-1/4" | 9-1/4" | 36 x 48" | 48 x 54" | 65 | 480 lbs |
| WXP36-15 | 1500 lbs | 45-1/4" | 9-1/4" | 36 x 48" | 48 x 54" | 69 | 485 lbs |
| Manufacturer | Presto |
|---|---|
| Catalog range | XP and WXP Portable Manual Lift Tables |
| Documented configurations | 11 |
Source: Presto General Catalog 2026, PDF page 19. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

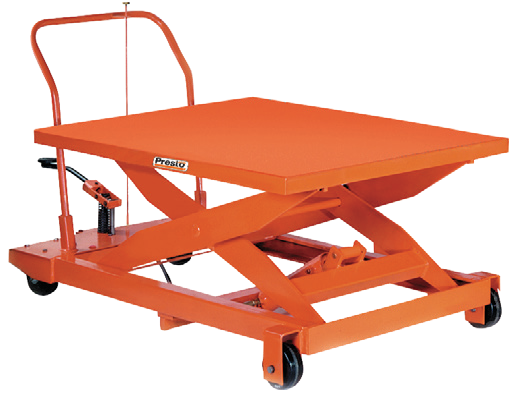

XP and WXP provide a wheeled work surface raised by a foot pump and lowered through a hand release.
Compare lift strokes, deck size and capacity. The compact XP24-600 has a different travel specification from larger XP24 units. Include floor conditions and caster requirements in the quote.
Documentation & drawings
Reference: Presto General Catalog 2026, PDF page 19. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a XP and WXP Portable Manual Lift Tables configuration?
Compare lift strokes, deck size and capacity. The compact XP24-600 has a different travel specification from larger XP24 units. Include floor conditions and caster requirements in the quote.
What should I provide for a XP and WXP Portable Manual Lift Tables quote?
For XP and WXP Portable Manual Lift Tables, include the selected model or configuration, quantity, load size and weight, operating requirements, delivery address and needed-by date. Request current drawings, freight and installation details for that selection.
