| MODEL NUMBER | MAXIMUM ROLL WIDTH | TRAY WIDTH | SERVICE RANGE | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|
| HYD-ROLL-16 | 98" | 31½" | 4" to 33½" | 880 lb. | 190 |
| HYD-ROLL-47 | 197" | 47¼" | 4" to 33½" | 880 lb. | 205 |
| HYD-ROLL-47-LP | 197" | 47¼" | 3 1/8" to 33½" | 880 lb. | 205 |
| Maximum Roll Width | 98"; 197" |
|---|---|
| Tray Width | 31½"; 47¼" |
| Service Range | 4" to 33½"; 3 1/8" to 33½" |
| Uniform Capacity | 880 lb. |
Source: 2018 catalog, page 140. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists HYD-ROLL-16 through HYD-ROLL-47-LP within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Maximum Roll Width: 98"; 197"; Tray Width: 31½"; 47¼". These values cover multiple models; consult the individual row for the model being quoted.

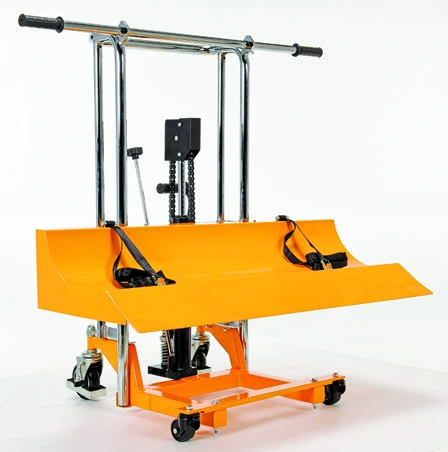

The catalog entry describes foot-pump actuation. Check the configuration table and quote details to establish which features apply to your selection.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 140. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 3 model references for this family. The first listed model is HYD-ROLL-16. Compare the model rows and confirm the required configuration when quoting.
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
