| TYPE | MODEL NUMBER | DESCRIPTION | WHEEL CHOCK (W x H x L) | WEIGHT (POUND) |
|---|---|---|---|---|
| A | LWC-15 | LAMINATED RUBBER (HANDLE) | 7 1/2" x 8" x 8" | 13 |
| B | LWC-14 | LAMINATED RUBBER (HANDLE) | 9 1/2" x 5½" x 10 1/ | 8" 17 |
| C | LWC-14M | LAMINATED RUBBER | (HANDLE W/RUBBER GRIPS) 9 1/2" x 5½" x 10 1/ | 8" 19 |

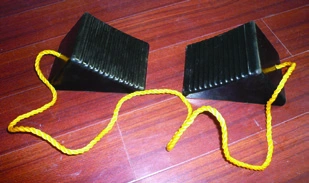

| D | RWC-2-PR | MOLDED RUBBER (W/64"L ROPE CONNECTED) | 5" x 4" x 8" | 10 |
| E | RWC-3 | MOLDED RUBBER (HANDLE) | 8" x 4" x 8" | 6 |
| F | RWC-5 | MOLDED RUBBER (MOLDED HANDLE) | 4" x 6" x 8" | 5 |

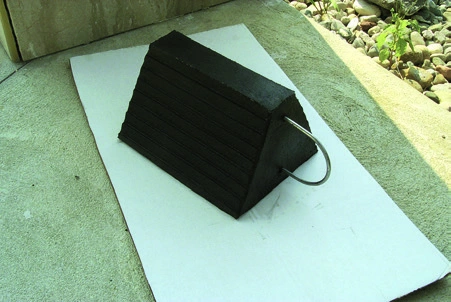

| G | RWC-8 | MOLDED RUBBER (EYEBOLT) | 9¼" x 6" x 8" | 11 |

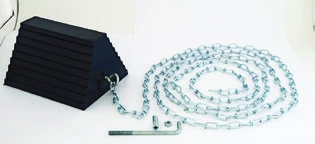

| H | RWC-8/OH-15-HD | MOLDED RUBBER | (2) CHOCKS & (2) 15' CHAINS 9¼" x 6" x 8" | 32 |
| I | RWC-8-HDL | MOLDED RUBBER (HANDLE) | 9¼" x 6" x 8" | 12 |
| J | ORWC-8-HDL | MOLDED RUBBER (ORANGE) | 9¼" x 6" x 8" | 11 |

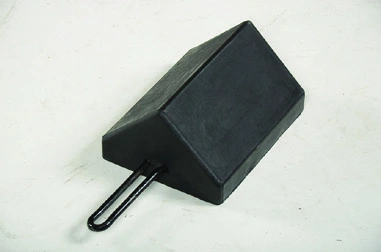

| K | RWC-9-U | MOLDED RUBBER ("U" HANDLE) | 9¼" x 6" x 8" | 11 |

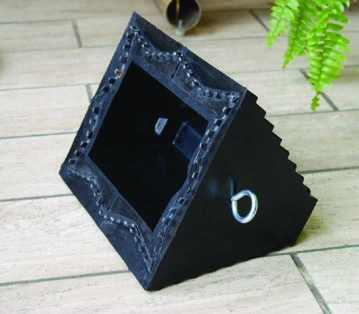

| L | RWC-8-SBS | MOLDED RUBBER (SERRATED BOTTOM) | 9¼" x 6" x 8" | 10 |
| M | RWC-10-HDL | MOLDED RUBBER (POSITIONING HANDLE) | 9 1/2" x 4 7/8" x 7 3/8 | " 12 |
| N | RWC-11 | MOLDED RUBBER | 7" x 7¾" x 10" | 11 |
| O | RWC-25 | MOLDED RUBBER (JUMBO) | 16" x 8" x 12" | 25 |

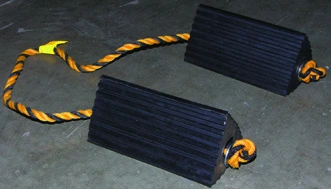

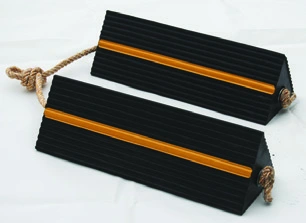

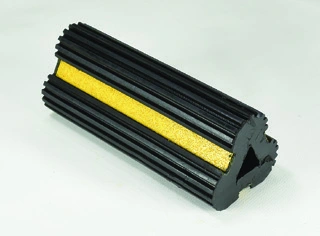

| P R EX-4 S EX-11 T EX-13 U AC-13 W AC-18 * | RMC-4 | EXTRUDED RUBBER EXTRUDED RUBBER EXTRUDED RUBBER EXTRUDED RUBBER AIRLINE CHOCK WITH ROPE AIRLINE CHOCK WITH ROPE TRUCK MOUNTED WHEEL CHOCK HOLDER AVAILABLE, model TMCH-RWC-8, SEE PAGE 41 | 6½" x 4¾" x 4¼" 10" x 3¾" x 4½" 8½" x 6" x 8½" 12" x 5¾" x 6½" 10" x 4½" x 5" 18" x 5½" x 6" | 5 5 14 18 12 36 |
| K) RWC-9-U S) EX-11 | T) EX-13 | SERRATED BOTTOM L) RWC-8-SBS M) RWC-10-HDL U) AC-13 | N) RWC-11 O) RWC-25 W) AC-18 |
Structured specifications are not listed in the source catalog. Refer to the product information above and ask our team to confirm the required configuration.
Source: 2018 catalog, page 39. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.
The catalog lists LWC-15 through AC-18 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 39. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 19 model references for this family. The first listed model is LWC-15. Compare the model rows and confirm the required configuration when quoting.
Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
