Specifications & options

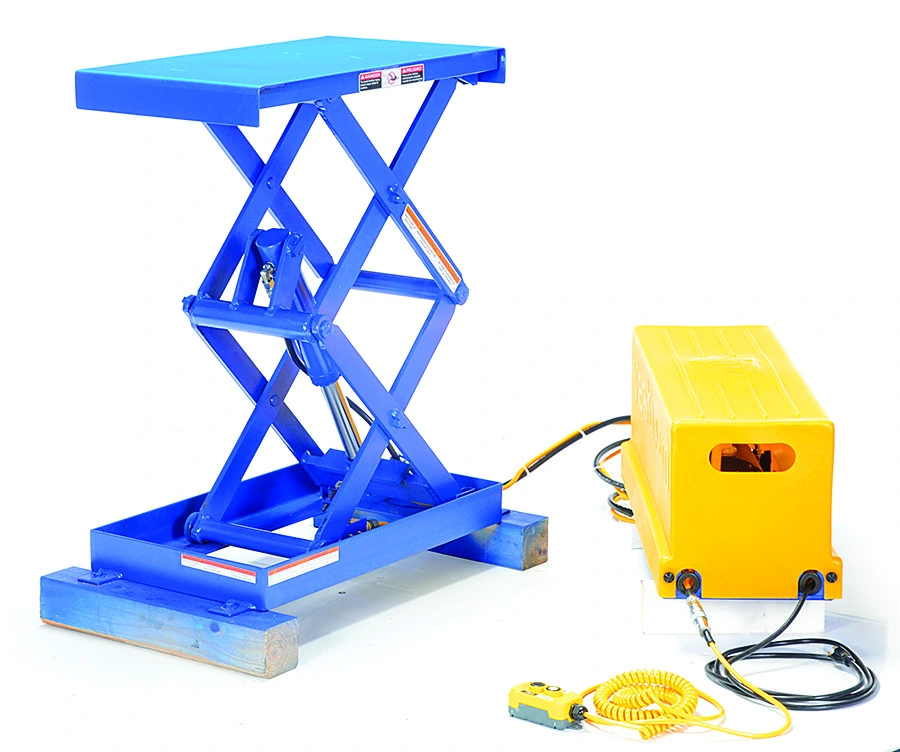

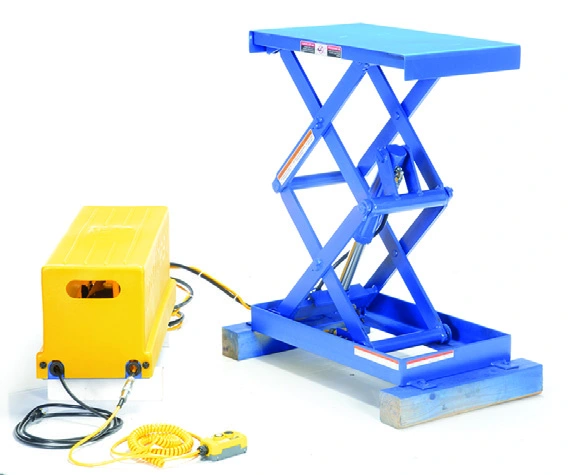

| MODEL NUMBER | DOUBLE SHORTY NARROW SCISSOR LIFT TABLES | PLATFORM SIZE (W x L) | *UNIFORM CAPACITY | RAISED HEIGHT | LOWERED HEIGHT | VOLTAGE PHASE | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|
| EHLTSD-1228-05-35 | 12" x 28" | 500 lb. | 35" | 7" | 460/3 | 300 | |
| EHLTSD1628-1-35 | 16" x 28" | 1,000 lb. | 35" | 7" | 460/3 | 350 | |
| EHLTSD2436-1-35 | 24" x 36" | 1,000 lb. | 35" | 7" | 460/3 | 400 |
| Platform Size (W X L) | 12" x 28"; 16" x 28"; 24" x 36" |
|---|---|
| *Uniform Capacity | 500 lb.; 1,000 lb. |
| Raised Height | 35" |
| Lowered Height | 7" |
| Voltage Phase | 460/3 |
Source: 2018 catalog, page 97. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The catalog lists EHLTSD-1228-05-35 through EHLTSD2436-1-35 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Platform Size (W X L): 12" x 28"; 16" x 28"; 24" x 36"; *Uniform Capacity: 500 lb.; 1,000 lb.. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 97. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for shorty scissor lift tables?
The catalog records 3 model references for this family. The first listed model is EHLTSD-1228-05-35. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right shorty scissor lift tables configuration?
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
