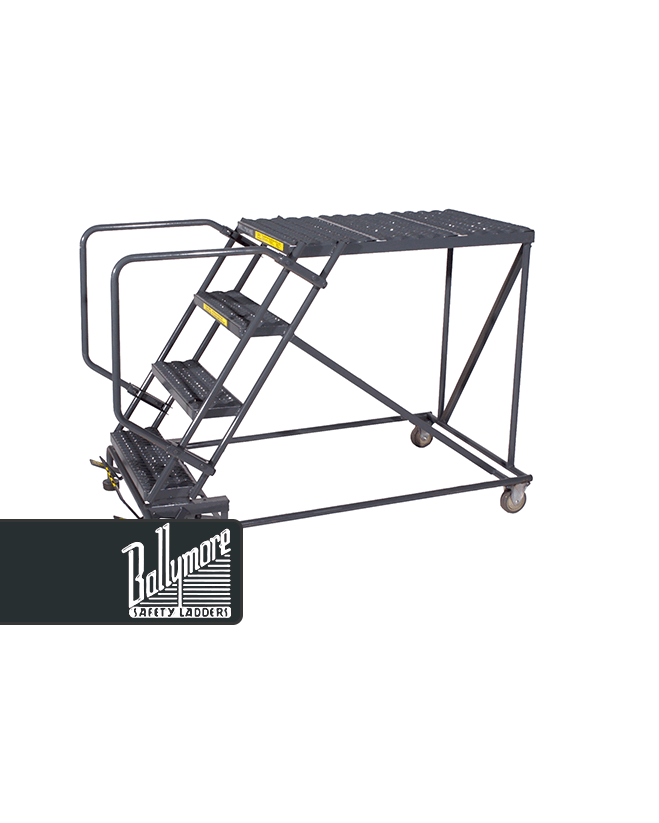

Ballymore manufacturer image listed for SEP7-3636. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.
Specifications & options
| Model / reference | Steps including top step | Platform height (in) | Platform width (in) | Platform length (in) | Handrails | Weight (lb) | Base W x D (in) |
|---|---|---|---|---|---|---|---|
| SNR3-24-36 | 3 | 30” | 24” | 36 | Without handrails | 105 | 33 x 48 |
| SNR3-24-48 | 3 | 30” | 24” | 48 | Without handrails | 127 | 33 x 60 |
| SNR3-24-60 | 3 | 30” | 24” | 60 | Without handrails | 149 | 33 x 72 |
| SNR3-24-72 | 3 | 30” | 24” | 72 | Without handrails | 171 | 33 x 84 |
| SNR3-36-36 | 3 | 30” | 36” | 36 | Without handrails | 121 | 38 x 48 |
| SNR3-36-48 | 3 | 30” | 36” | 48 | Without handrails | 143 | 38 x 60 |
| SNR3-36-60 | 3 | 30” | 36” | 60 | Without handrails | 150 | 38 x 72 |
| SNR3-36-72 | 3 | 30” | 36” | 72 | Without handrails | 187 | 38 x 84 |
| SNR4-24-36 | 4 | 40” | 24” | 36 | Without handrails | 121 | 33 x 54 |
| SNR4-24-48 | 4 | 40” | 24” | 48 | Without handrails | 143 | 33 x 66 |
| SNR4-24-60 | 4 | 40” | 24” | 60 | Without handrails | 165 | 33 x 78 |
| SNR4-24-72 | 4 | 40” | 24” | 72 | Without handrails | 187 | 33 x 90 |
| SNR4-36-36 | 4 | 40” | 36” | 36 | Without handrails | 138 | 38 x 54 |
| SNR4-36-48 | 4 | 40” | 36” | 48 | Without handrails | 160 | 38 x 66 |
| SNR4-36-60 | 4 | 40” | 36” | 60 | Without handrails | 182 | 38 x 78 |
| SNR4-36-72 | 4 | 40” | 36” | 72 | Without handrails | 204 | 38 x 90 |
| SEP3-24-36 | 3 | 30” | 24” | 36 | With handrails | 136 | 33 x 48 |
| SEP3-24-48 | 3 | 30” | 24” | 48 | With handrails | 151 | 33 x 60 |
| SEP3-24-60 | 3 | 30” | 24” | 60 | With handrails | 172 | 33 x 72 |
| SEP3-24-72 | 3 | 30” | 24” | 72 | With handrails | 193 | 33 x 84 |
| SEP3-36-36 | 3 | 30” | 36” | 36 | With handrails | 153 | 38 x 48 |
| SEP3-36-48 | 3 | 30” | 36” | 48 | With handrails | 178 | 38 x 60 |
| SEP3-36-60 | 3 | 30” | 36” | 60 | With handrails | 202 | 38 x 72 |
| SEP3-36-72 | 3 | 30” | 36” | 72 | With handrails | 226 | 38 x 84 |
| SEP4-24-36 | 4 | 40” | 24” | 36 | With handrails | 151 | 33 x 54 |
| SEP4-24-48 | 4 | 40” | 24” | 48 | With handrails | 165 | 33 x 66 |
| SEP4-24-60 | 4 | 40” | 24” | 60 | With handrails | 186 | 33 x 78 |
| SEP4-24-72 | 4 | 40” | 24” | 72 | With handrails | 207 | 33 x 90 |
| SEP4-36-36 | 4 | 40” | 36” | 36 | With handrails | 167 | 38 x 54 |
| SEP4-36-48 | 4 | 40” | 36” | 48 | With handrails | 193 | 38 x 66 |
| SEP4-36-60 | 4 | 40” | 36” | 60 | With handrails | 217 | 38 x 78 |
| SEP4-36-72 | 4 | 40” | 36” | 72 | With handrails | 240 | 38 x 90 |
| SEP5-24-36 | 5 | 50” | 24” | 36 | With handrails | 165 | 33 x 60 |
| SEP5-24-48 | 5 | 50” | 24” | 48 | With handrails | 178 | 33 x 72 |
| SEP5-24-60 | 5 | 50” | 24” | 60 | With handrails | 199 | 33 x 84 |
| SEP5-24-72 | 5 | 50” | 24” | 72 | With handrails | 220 | 33 x 96 |
| SEP5-36-36 | 5 | 50” | 36” | 36 | With handrails | 182 | 38 x 60 |
| SEP5-36-48 | 5 | 50” | 36” | 48 | With handrails | 206 | 38 x 72 |
| SEP5-36-60 | 5 | 50” | 36” | 60 | With handrails | 230 | 38 x 84 |
| SEP5-36-72 | 5 | 50” | 36” | 72 | With handrails | 253 | 38 x 96 |
| SEP6-24-36 | 6 | 60” | 24” | 36 | With handrails | 178 | 33 x 66 |
| SEP6-24-48 | 6 | 60” | 24” | 48 | With handrails | 193 | 33 x 78 |
| SEP6-24-60 | 6 | 60” | 24” | 60 | With handrails | 215 | 33 x 90 |
| SEP6-24-72 | 6 | 60” | 24” | 72 | With handrails | 237 | 33 x 102 |
| SEP6-36-36 | 6 | 60” | 36” | 36 | With handrails | 198 | 38 x 66 |
| SEP6-36-48 | 6 | 60” | 36” | 48 | With handrails | 220 | 38 x 78 |
| SEP6-36-60 | 6 | 60” | 36” | 60 | With handrails | 245 | 38 x 90 |
| SEP6-36-72 | 6 | 60” | 36” | 72 | With handrails | 270 | 38 x 102 |
| SEP7-24-36 | 7 | 70” | 24” | 36 | With handrails | 193 | 33 x 73 |
| SEP7-24-48 | 7 | 70” | 24” | 48 | With handrails | 209 | 33 x 85 |
| SEP7-24-60 | 7 | 70” | 24” | 60 | With handrails | 230 | 33 x 97 |
| SEP7-24-72 | 7 | 70” | 24” | 72 | With handrails | 251 | 33 x 108 |
| SEP7-36-36 | 7 | 70” | 36” | 36 | With handrails | 215 | 38 x 73 |
| SEP7-36-48 | 7 | 70” | 36” | 48 | With handrails | 237 | 38 x 85 |
| SEP7-36-60 | 7 | 70” | 36” | 60 | With handrails | 273 | 38 x 97 |
| SEP7-36-72 | 7 | 70” | 36” | 72 | With handrails | 308 | 38 x 108 |
| Documented model configurations | 56 |
|---|---|
| Catalog feature / option | 800 LB. CAPACITY |
| Catalog feature / option | Also available in aluminum and stainless steel |
| Catalog feature / option | 36” high handrails with midrail |
| Catalog feature / option | Also available in aluminum and stainless steel. |
| Catalog feature / option | Add platform length to model # when ordering Heavy Duty Mobile Work Platforms increase productivity by simplifying maintenance operations. |
| Catalog feature / option | Stockrooms Now Available with Side or Rear Exits 800 Lb. Capacity! |
Source: 2026 ladder and access catalog, PDF page 27. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
Heavy-Duty Single-Entry Mobile Work Platforms is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: RUGGED 2” X 1”; 800 LB. CAPACITY; Also available in aluminum and stainless steel; Sturdy 1” tubular steel rails; Self cleaning slip resistant serrated grating; Easy to use heavy duty pedal activated lockstep with large 4” casters; 36” high handrails with midrail; Gray powder coat finish; Ships unassembled in a box; Designed to accommodate more than one worker.; Also available in aluminum and stainless steel.; Add platform length to model # when ordering Heavy Duty Mobile Work Platforms increase productivity by simplifying maintenance operations.; Manufacturers; Assembly Lines; Warehouses; Distribution Centers; Maintenance Operations; Stockrooms Now Available with Side or Rear Exits 800 Lb. Capacity!.
Model and option notes: MODEL WITH HANDRAILS.
Documentation & drawings
Reference: 2026 ladder and access catalog, PDF page 27. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a model or configuration?
Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
Are the catalog specifications current?
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
How do I request a quote?
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
