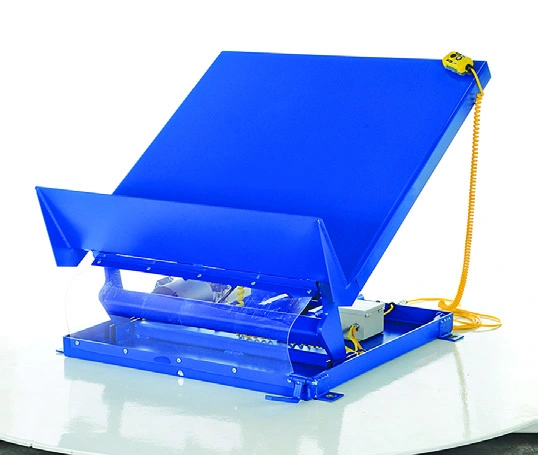

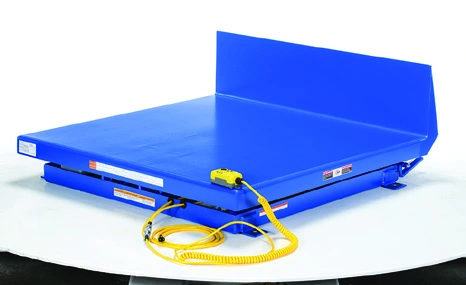

Single Scissor Lift & Tilt Tables catalog equipment view

Open an image to inspect its original detail.

Single Scissor Lift & Tilt Tables catalog equipment viewSingle Scissor Lift & Tilt Tables catalog equipment view

Specifications & options

MODEL NUMBERPLATFORM SIZE (W x L)UNIFORM CAPACITYLEVEL HEIGHTMAXIMUM TILTPOWER UNITWEIGHT (POUND)
UNI-2448-224" x 48"2,000 lb.8"40°EXTERNAL606
UNI-3648-236" x 48"2,000 lb.8"40°INTERNAL640
UNI-4048-240" x 48"2,000 lb.8"40°INTERNAL696
UNI-4848-248" x 48"2,000 lb.8"40°INTERNAL735
UNI-5448-254" x 48"2,000 lb.8"40°INTERNAL885
UNI-2448-424" x 48"4,000 lb.8"40°EXTERNAL631
UNI-3648-436" x 48"4,000 lb.8"40°INTERNAL665
UNI-4048-440" x 48"4,000 lb.8"40°INTERNAL723
UNI-4848-448" x 48"4,000 lb.8"40°INTERNAL743
UNI-5448-454" x 48"4,000 lb.8"40°INTERNAL910
UNI-9648-496" x 48"4,000 lb.8"40°INTERNAL1269
UNI-4848-648" x 48"6,000 lb.8"40°INTERNAL763
UNI-5448-654" x 48"6,000 lb.8"40°INTERNAL935
Platform Size (W X L)24" x 48"; 36" x 48"; 40" x 48"; 48" x 48"; 54" x 48"; 96" x 48"
Uniform Capacity2,000 lb.; 4,000 lb.; 6,000 lb.
Level Height8"
Maximum Tilt40°
Power UnitEXTERNAL; INTERNAL

Source: 2018 catalog, page 101. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.

The catalog lists UNI-2448-2 through UNI-5448-6 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Platform Size (W X L): 24" x 48"; 36" x 48"; 40" x 48"; 48" x 48"; 54" x 48"; 96" x 48"; Uniform Capacity: 2,000 lb.; 4,000 lb.; 6,000 lb.. These values cover multiple models; consult the individual row for the model being quoted.

Power details mentioned in the catalog entry include 2HP, 60 Hz. Confirm which apply to the selected model or optional power package.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 101. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for single scissor lift & tilt tables?

The catalog records 13 model references for this family. The first listed model is UNI-2448-2. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right single scissor lift & tilt tables configuration?

Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
