| Model / reference | Dump Height (in) | Base | Drum Capabilities (in) / Type | Drum Capabilities (in) / Diameter | Drum Capabilities (in) / Height | Casters | Dimensions L x W x H (in) | Capacity (lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| F80163A3 | 36 | Stationary | Universal | up to 25 | 26 - 43 | - | 52 x 36 x 60 | 1,500 | 450 |
| F80162A2 | 36 | Portable | Universal | up to 25 | 26 - 43 | (4) 3" Phenolic: 2 Swivel, 2 Rigid | 52 x 36 x 60 | 1,500 | 480 |
| F80161A1 | 48 | Stationary | Universal | up to 25 | 26 - 43 | - | 52 x 36 x 66 | 1,500 | 490 |
| F80160A0 | 48 | Portable | Universal | up to 25 | 26 - 43 | (4) 3" Phenolic: 2 Swivel, 2 Rigid | 52 x 36 x 66 | 1,500 | 520 |
| F80159A9 | 60 | Stationary | Universal | up to 25 | 26 - 43 | - | 52 x 36 x 72 | 1,500 | 520 |
| F80158A8 | 60 | Portable | Universal | up to 25 | 26 - 43 | (4) 3" Phenolic: 2 Swivel, 2 Rigid | 52 x 36 x 72 | 1,500 | 550 |
| Documented model configurations | 6 |
|---|---|
| Drum Capabilities (in) / Type | Universal |
| Drum Capabilities (in) / Diameter | up to 25 |
| Drum Capabilities (in) / Height | 26 - 43 |
| Capacity (lb) | 1,500 |
| Catalog feature / option | Used with variety of drums up to 25” diameter and 26" to 43” in height. |
| Catalog feature / option | Operate using convenient handheld pendant with magnetic back, controlling the 20 amp, 110 volt motor. |
| Catalog feature / option | Simply load containers at floor level. |
Source: 2025 storage and handling catalog, PDF page 32. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

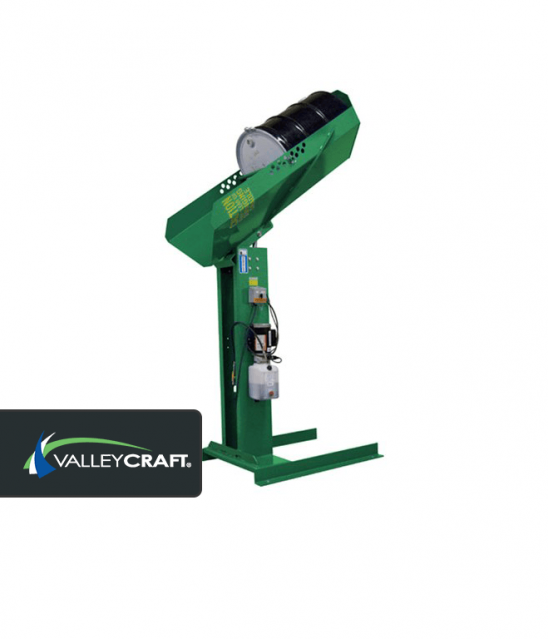

Low-Level Stationary Hydraulic Drum Dumpers is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Efficiently dump a variety of material.; Improve safety by utilizing a powered lift and dump.; Available as a stationary or portable unit.; Used with variety of drums up to 25” diameter and 26" to 43” in height.; Compatible with steel, plastic, and fiber drums.; Hold down bar secures drum, adjustable on 1½” increments.; Operate using convenient handheld pendant with magnetic back, controlling the 20 amp, 110 volt motor.; Heavy duty steel chute with fully welded steel frame.; Predrilled mounting holes provide ability to bolt unit to the floor for added stability.; Simply load containers at floor level.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 32. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
