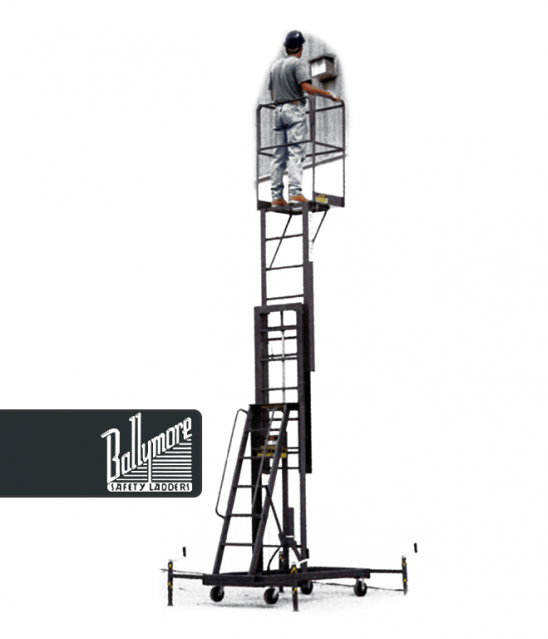

Ballymore BL-315 manufacturer configuration image

Ballymore manufacturer image listed for BL-315. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.

Specifications & options

Working Height (Feet)20, 21
Platform Max Height (Feet)14, 15
Platform Min Height (Feet)6.33
Platform Width (Feet)1.67, 2.33
Platform Length (Feet)1.67, 5.33

Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.

PRODUCT INFORMATION

Equipment overview

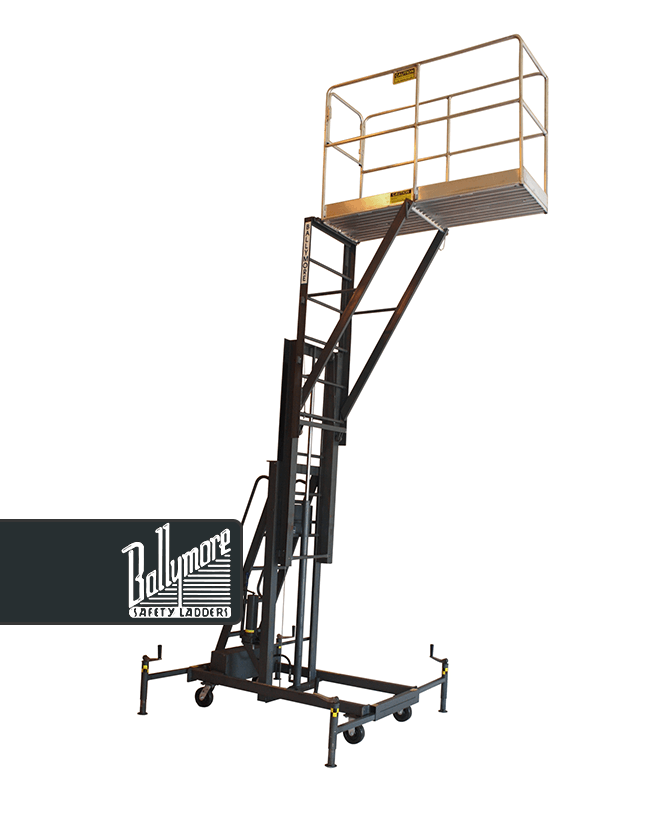

Manually propelled one worker lift. Totally enclosed platform with 42” guardrails, mid rails, and gate. 4” toe boards and skid resistant mat. Two platform styles available: Standard platform with steel deck (BL-315), cantilevered platform with aluminum deck (BL-C14). Built in ladder with flat, skid resistant treads and grab rails provides access to platform in fully lowered position, while anti-skid rungs provide access to platform when lift is raised. Compact base frame rolls on two swivel and two rigid 6” casters. Rails fold down for doorway passage and easy storage. Base is 32” wide by 65” long, outriggers extend to 68” wide. Leveling jacks secure lift to the floor. Hydraulic hand pump provides easy lifting. Also available with powder coat safety orange finish. Three available power options: Convenient plug in 120V, AC Independent 12V, DC deep cycle system complete with battery and charger. Air hydraulic power requiring 90 CFM with 90 PSI pressure. – 300 lbs. rated capacity – Meets/exceeds ANSI safety standards

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 09-02-0023?

Working Height (Feet): 20, 21; Platform Max Height (Feet): 14, 15; Platform Min Height (Feet): 6.33. Confirm the complete selected configuration before ordering.

How do I request a quote for 09-02-0023?

Include the product name and SKU 09-02-0023, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
