SKU BALLYPAL 45M-TD
Trailer Tugger — 45M-TD
Trailer Tugger — 45M-TD. WEIGHT CAPACITY: 10,000. LIFT HEIGHT: 4.5”. FORK LENGTH: 45.3”.
- WEIGHT CAPACITY
- 10,000
- LIFT HEIGHT
- 4.5”
Open an image to inspect its original detail.
Specifications & options
| Model / reference |
|---|
| SM2500 |
| Driving motor | DC Motor 24V, 300W |
|---|---|
| Traction capacity | 2,500kg | 5,550lbs |
| Travel speed | 0-6 km/h |
| Speed controller | Curtis band and speed and acceleration are freely programmable |
| Battery | Build-in 24V/80A |
| Charger | Build-in 24V/10A |
| Tires | Solid ø 250mm x 85mm |10” x 3.5” |
| Net weight incl. battery | 220 kg | 485 lbs |
| Width | 500 mm | 19.6” |
| Length without hook | 930 mm | 37” (handle in the lowerest position) |
| Handle height | 1020-1545 mm | 40” x 61” |
| Overall height | 900 mm | 35” |
| Standard provided with | Battery, battery charger, standard hook |
Source: 2019 sanitary equipment catalog, PDF page 34. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview

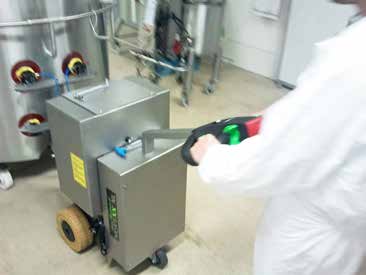

Stainless Steel Electric Tugger — 5,500 lb is presented here with the configurations documented in the 2019 sanitary equipment catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Can be used in a wide variety of applications; Very compact design makes the machine extremely manoeuvrable; Very easy to connect the hook to the object in an instant with almost no effort; High quality Curtis Speed Controller, which is programmable according to your needs; Increased employee productivity; Powered lift available.
The source describes standard and custom equipment. Confirm the current construction, control system, finish, installation details and selected operating limits with your quote.
Documentation & drawings
Reference: 2019 sanitary equipment catalog, PDF page 34. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a model or configuration?
Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
Are the catalog specifications current?
These specifications come from the 2019 sanitary equipment catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
How do I request a quote?
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
