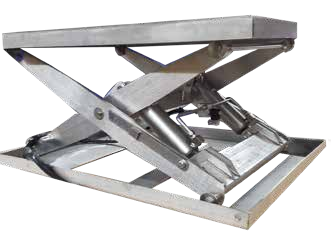

Stainless Steel Ergonomic Lift Tables — catalog equipment photograph

Open an image to inspect its original detail.

Stainless Steel Ergonomic Lift Tables — catalog equipment photographStainless Steel Ergonomic Lift Tables — catalog equipment photographStainless Steel Ergonomic Lift Tables — catalog equipment photographStainless Steel Washdown Lift Tables — catalog equipment photographStainless Steel Washdown Lift Tables — catalog equipment photographStainless Steel Washdown Lift Tables — catalog equipment photographStainless Steel Washdown Lift Tables — catalog equipment photograph

Specifications & options

Model / referenceConstruction / applicationCapacityPlatform sizesBase sizesLower HeightRaised HeightMotor HPMotor weight
SL SS30-20 — Construction / application: Bolt-together ergonomic; Capacity: 2,000 lbs; Platform sizes: 44” x 48”Bolt-together ergonomic2,000 lbs44” x 48”36” x 48”8”38”1550lbs
SL SS30-25 — Construction / application: Bolt-together ergonomic; Capacity: 2,500 lbs; Platform sizes: 44” x 48”Bolt-together ergonomic2,500 lbs44” x 48”36” x 48”8”38”1625lbs
SL SS30-40Bolt-together ergonomic4,000 lbs44” x 48”36” x 48”8”38”1.5775lbs
SL SS30-60Bolt-together ergonomic6,000 lbs44” x 48”36” x 48”12”42”1.5975lbs
SL SS30-80Bolt-together ergonomic8,000 lbs44” x 48”36” x 48”12”42”21,250lbs
SL SS30-20 — Construction / application: Welded washdown; Capacity: 2,000 lbs; Platform sizes: 40” x 48”Welded washdown2,000 lbs40” x 48”40” x 48”8”40”1.5550lbs
SL SS30-25 — Construction / application: Welded washdown; Capacity: 6,000 lbs; Platform sizes: 40” x 48”Welded washdown6,000 lbs40” x 48”40” x 48”8”40”1.5625lbs
SL SS30-30Welded washdown10,000 lbs40” x 48”40” x 48”8”40”1.5775lbs
Documented model configurations8
Catalog feature / optionValue priced 2,000 and 2,500 lbs capacity
Catalog feature / optionNorth American 304L and 316L stainless steel
Catalog feature / optionSanitary design with full pan base and platform formed to eliminate welds
Catalog feature / option36” and 40“ lift heights
Catalog feature / optionRotating platforms, tilting platforms
Catalog feature / optionCapacities from 500 to 10,000 lbs

Source: 2019 sanitary equipment catalog, PDF pages 3, 4. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Stainless Steel Ergonomic and Washdown Lift Tables is presented here with the configurations documented in the 2019 sanitary equipment catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: Value priced 2,000 and 2,500 lbs capacity; North American 304L and 316L stainless steel; Bolt together design eliminates cracks, crevices and pin holes where bacteria can form and reduced down time; Sanitary design with full pan base and platform formed to eliminate welds; Nickel plated or stainless cylinders; Nema4x hand controls; 36” and 40“ lift heights; Stainless hydraulic cylinders; Sanitation package 6” adjustable legs to make floor around lift easer to clean; Rotating platforms, tilting platforms; Portable and semi portable; Polished tig welds; Safety railing with gates; Air powered | Self propelled; Double and triple lifts; Custom sizes; Capacities from 500 to 10,000 lbs.

The source describes standard and custom equipment. Confirm the current construction, control system, finish, installation details and selected operating limits with your quote.

Documentation & drawings

Reference: 2019 sanitary equipment catalog, PDF pages 3, 4. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2019 sanitary equipment catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
