Specifications & options

Source: 2026 ladder and access catalog, PDF page 23. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

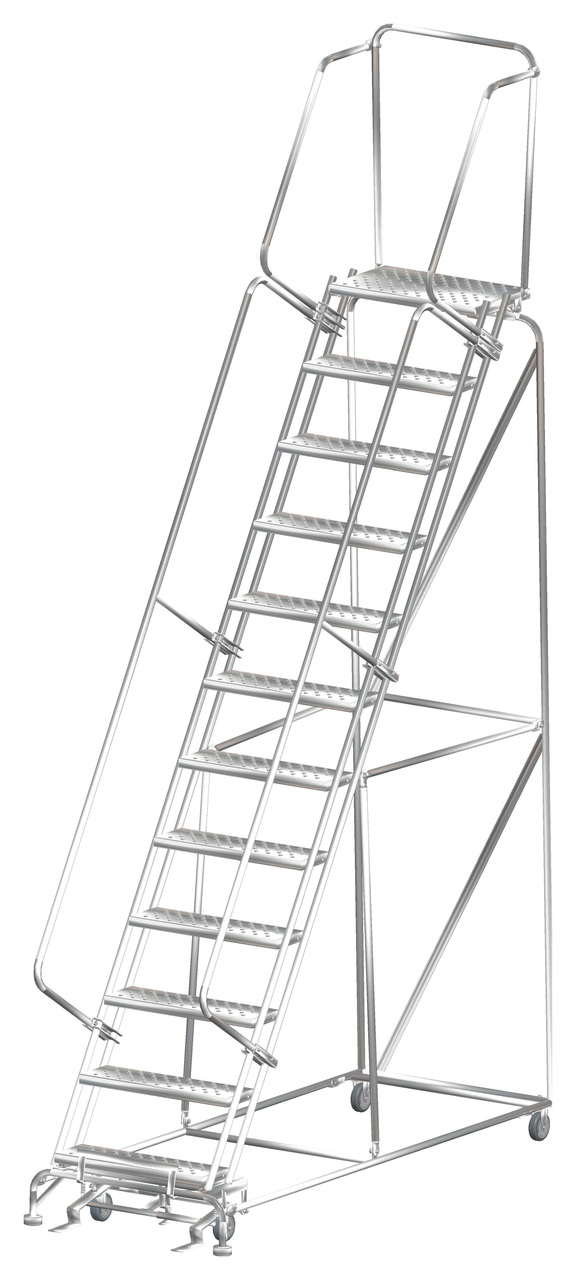

Stainless Steel Rolling Ladder Configurations is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: 450 LB. CAPACITY; Ideal for wash down and corrosive environments; Type T304 Stainless Steel construction; 1-3 step ladders are all welded and have a 10” deep top step; 4-12 step ladders have 14” deep top step standard; Deeper top steps available on all models; Bead blasted for uniform finish; Casters for lock step ladders are stainless steel; Spring Loaded casters are stainless and springs are carbon steel.

Model and option notes: 24” WIDE STEP; DERS ovide and; * Fold-N-Store Capacity = 350 Lbs.; * Eligible for UPS. Tilt and roll casters add 5” to base length; SS1N* - 1 STEP NO RAILS 12 12 18 x 20 24 SS2N* - 2 STEP NO RAILS 19 19 20 x 19 28 SS3N* - 3 STEP NO RAILS 28.5 28.5 20 x 25 35 SS220 SSTR220 2 STEP 19 49 20 x 19 40 SS320 SSTR320 3 STEP 28.5 58.5 20 x 25 46 SS420 SSTR420 4 STEP 40 73 20 x 38 70 SS520 SSTR520 5 STEP 50 83 20 x 44 77 SS624 SSTR624 6 STEP 60 93 24 x 50 81 SS724 - 7 STEP 70 103 24 x 56 95 24” WIDE STEP; SS2N30* - 2 STEP NO RAILS 19 19 30 x 19 40 SS3N30* - 3 STEP NO RAILS 28.5 28.5 30 x 25 44 SS230 SSTR230 2 STEP 19 49 30 x 19 43 SS330 SSTR330 3 STEP 28.5 58.5 30 x 25 55 SS430 SSTR430 4 STEP 40 73 30 x 38 85 SS530 SSTR530 5 STEP 50 83 30 x 44 92 SS630 SSTR630 6 STEP 60 93 30 x 50 105 SS730 - 7 STEP 70 103 30 x 56 115; AVAILABLE TREAD TYPES Please specify when ordering; Perforated Tread (P).
