| Model / reference | Lift operation | Type | Rated Capacity | Max. Fork Height | Min. Fork Height | Size of Fork | Width Overall Fork | Length of Fork | Fork Roller | Steering Wheel | Battery | Lifting Motor | Net Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ACS154M — Lift operation: Electric; Type: Electric; Rated Capacity: 1,000kg | 2,204lb | Electric | Electric | 1,000kg | 2,204lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 540mm | 21” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | 12V/60AH | 0.8 KW | 155kg | 341lb |
| ACS1068M — Lift operation: Electric; Type: Electric; Rated Capacity: 1,000kg | 2,204lb | Electric | Electric | 1,000kg | 2,204lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 680mm | 26.7” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | 12V/60AH | 0.8 KW | 160kg | 352lb |
| ACS1554M — Lift operation: Electric; Type: Electric; Rated Capacity: 1,500kg | 3,306lb | Electric | Electric | 1,500kg | 3,306lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 540mm | 21” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | 12V/60AH | 0.8 KW | 160kg | 352lb |
| ACS1558M — Lift operation: Electric; Type: Electric; Rated Capacity: 1,500kg | 3,306lb | Electric | Electric | 1,500kg | 3,306lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 680mm | 26.7” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | 12V/60AH | 0.8 KW | 165kg | 286.6lb |
| ACS154M — Lift operation: Manual; Type: Manual; Rated Capacity: 1,000kg | 2,204lb | Manual | Manual | 1,000kg | 2,204lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 540mm | 21” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | — | — | 120kg | 264lb |
| ACS1068M — Lift operation: Manual; Type: Manual; Rated Capacity: 1,000kg | 2,204lb | Manual | Manual | 1,000kg | 2,204lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 680mm | 26.7” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | — | — | 125kg | 275lb |
| ACS1554M — Lift operation: Manual; Type: Manual; Rated Capacity: 1,500kg | 3,306lb | Manual | Manual | 1,500kg | 3,306lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 540mm | 21” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | — | — | 125kg | 275lb |
| ACS1558M — Lift operation: Manual; Type: Manual; Rated Capacity: 1,500kg | 3,306lb | Manual | Manual | 1,500kg | 3,306lb | 800mm | 315” | 85 ± 2mm | 33.5” ± 0.75” | 160mm x 50mm | 63” x 19.6” | 680mm | 26.7” | 1150mm | 452.7” | 80mm x 70mm | 31.4” x 27.5” | 180mm x 50mm | 70.8” x 19.6” | — | — | 130kg | 286.6lb |
| Documented model configurations | 8 |
|---|---|
| Max. Fork Height | 800mm | 315” |
| Min. Fork Height | 85 ± 2mm | 33.5” ± 0.75” |
| Size of Fork | 160mm x 50mm | 63” x 19.6” |
| Length of Fork | 1150mm | 452.7” |
| Fork Roller | 80mm x 70mm | 31.4” x 27.5” |
| Steering Wheel | 180mm x 50mm | 70.8” x 19.6” |
| Catalog feature / option | No decrease of capacity |
Source: 2019 sanitary equipment catalog, PDF page 11. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

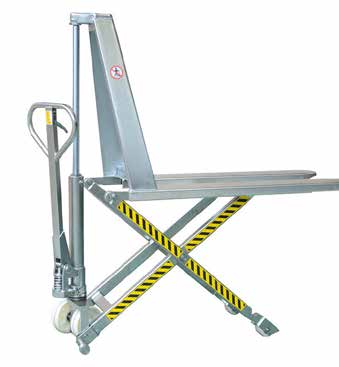

Stainless Steel Manual and Electric High-Lift Scissor Trucks is presented here with the configurations documented in the 2019 sanitary equipment catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: World class quality and performance; For use in meat and other food industry, dairy canning and all areas where corrosive acids and saline solutions are used; Single stage cylinder; No decrease of capacity; No risk of leakage; No dangerous dropping of second stage cylinder; With built-in charger or built-out charger on customer’s request; Custom Paint; For using in meat and other food industry, dairy canning and all areas where corrosive acids and saline solutions are used.
The source describes standard and custom equipment. Confirm the current construction, control system, finish, installation details and selected operating limits with your quote.
Reference: 2019 sanitary equipment catalog, PDF page 11. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2019 sanitary equipment catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
