Steel Machine Rollers & Accessories catalog equipment view

Open an image to inspect its original detail.

Steel Machine Rollers & Accessories catalog equipment viewSteel Machine Rollers & Accessories catalog equipment viewSteel Machine Rollers & Accessories catalog equipment view

Specifications & options

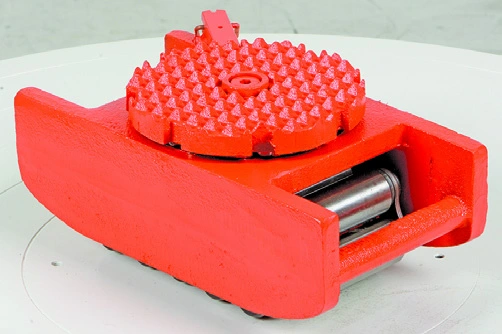

MACHINE ROLLERS MODEL NUMBERBODY SIZE (W x L)OVERALL HEIGHTUNIFORM STATIC CAPACITYTYPE OF TOPWEIGHT (POUND)
VHMS-23½" x 8"3¼"2,000 lb.SWIVEL11
VHMS-85½" x 10"4 7/16"8,000 lb.SWIVEL31
VHMS-155¾" x 10½"4 7/8"15,000 lb.SWIVEL38
VHMS-306½" x 12¾"5"30,000 lb.SWIVEL51
MACHINE ROLLER KIT MODEL NUMBERDESCRIPTIONWEIGHT (POUND)

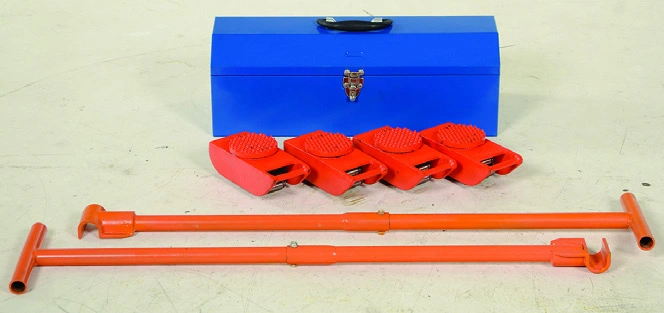

VHMS-2-KIT(4) VHMS-2 & (2)VHMH-36-1 STEERING BARS61

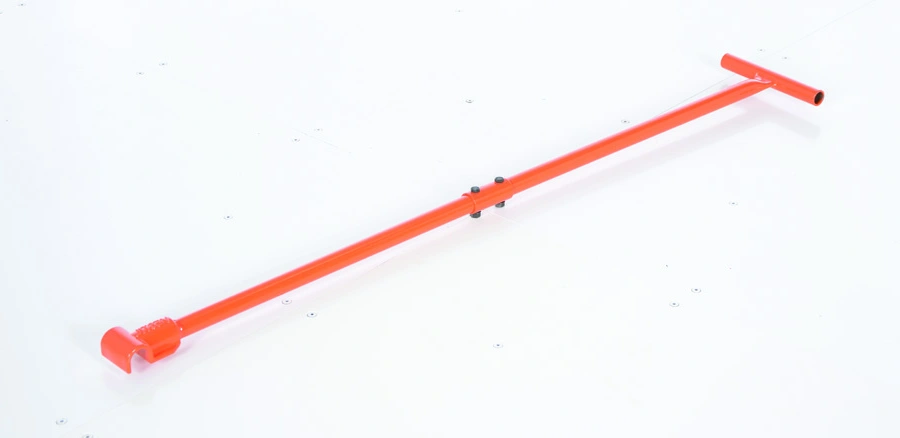

MACHINE ROLLER HANDLES MODEL NUMBERDESCRIPTIONUSE WITHHANDLE LENGTHWEIGHT (POUND)
VHMH-36-1STEERING BARVHMS-236"10
VHMH-48-1STEERING BARVHMS-248"12
VHMH-36-2STEERING BARVHMS-8/15/3036"15
VHMH-48-2STEERING BARVHMS-8/15/3048"17
VHMH-TB-2TURNING BARVHMS-8/15/3036"18
Body Size (W X L)3½" x 8"; 5½" x 10"; 5¾" x 10½"; 6½" x 12¾"
Overall Height3¼"; 4 7/16"; 4 7/8"; 5"
Uniform Static Capacity2,000 lb.; 8,000 lb.; 15,000 lb.; 30,000 lb.
Type Of TopSWIVEL
Use WithVHMS-2; VHMS-8/15/30
Handle Length36"; 48"

Source: 2018 catalog, page 372. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

The catalog lists VHMS-2 through VHMH-TB-2 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Body Size (W X L): 3½" x 8"; 5½" x 10"; 5¾" x 10½"; 6½" x 12¾"; Overall Height: 3¼"; 4 7/16"; 4 7/8"; 5". These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 372. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for steel machine rollers & accessories?

The catalog records 10 model references for this family. The first listed model is VHMS-2. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right steel machine rollers & accessories configuration?

Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
