EGA manufacturer photograph from Die Shelves/Pallet Rack Decking for Pallet Rack Beams. Confirm the model and selected configuration with your quote.
| Model / reference | Configuration | Depth | Width | Weight (lb) |
|---|---|---|---|---|
| M25DS-3034-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 30" | 34" | 43 |
| M25DS-3046-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 30" | 46" | 52 |
| M25DS-3058-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 30" | 58" | 60 |
| M25DS-3634-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 36" | 34" | 52 |
| M25DS-3646-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 36" | 46" | 62 |
| M25DS-3658-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 36" | 58" | 72 |
| M25DS-4234-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 42" | 34" | 61 |
| M25DS-4246-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 42" | 46" | 72 |
| M25DS-4258-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 42" | 58" | 84 |
| M25DS-4834-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 48" | 34" | 80 |
| M25DS-4846-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 48" | 46" | 94 |
| M25DS-4858-LD | Die Shelves for Pallet Rack Beams - 2,500 Lbs. Capacity [Made in USA] | 48" | 58" | 107 |
| Published model references | 12 |
|---|
Source: EGA Products product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

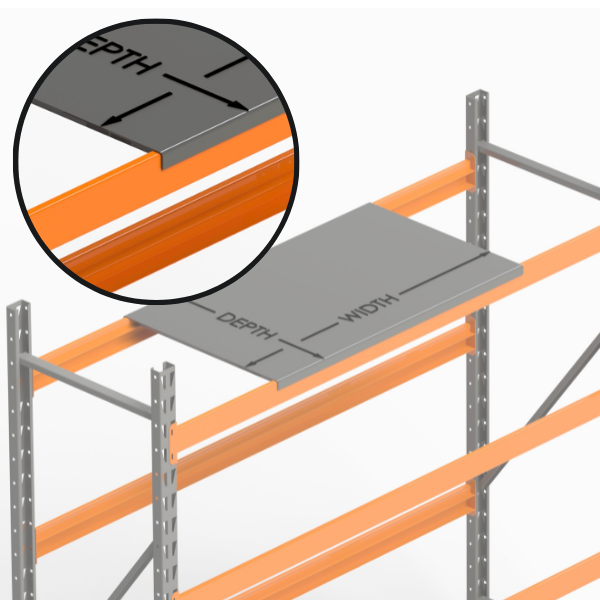

Add a solid shelf surface to a compatible pallet rack bay. These steel die shelves are listed by depth and width so the deck can be matched to the rack arrangement and stored load.

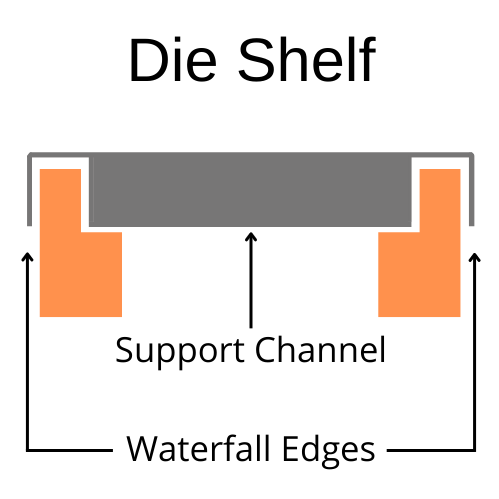

The source identifies standard 1-5/8-inch step beams as the intended support. Deck capacity does not establish the capacity of the rack beams or the complete rack; provide both the rack information and the load distribution for review.
The manufacturer lists 12 model references on this page. Keep the selected reference with its configuration and specifications; a listed height or capacity for one row does not apply automatically to every option.
For a steel pallet rack die shelves and decking quote, include beam profile, bay width, rack depth, concentrated loads and existing rack capacity. Factory Equipment will review the request and respond as quickly as possible.
Manufacturer reference: EGA Die Shelves/Pallet Rack Decking for Pallet Rack Beams reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Start with beam profile, bay width, rack depth, concentrated loads and existing rack capacity. Compare the model rows and request the exact reference so the required configuration can be confirmed.
No. Supplier photos are configuration examples. The model reference, comparison row and current drawing determine the arrangement being requested.
Choose a reference in the model selector and use the quote link. Include quantity, application, delivery location and required timing. Our team will review the details and respond as quickly as possible.
