Equipment details
In-Rack Sprinkler Protector Guards
Shield exposed in-rack sprinkler locations with a guard matched to the rack geometry. This family includes guards for several rack depths and a single…
- Published model references
- 4
EGA manufacturer photograph from Pallet Rack Post Protectors. Confirm the model and selected configuration with your quote.
Specifications & options

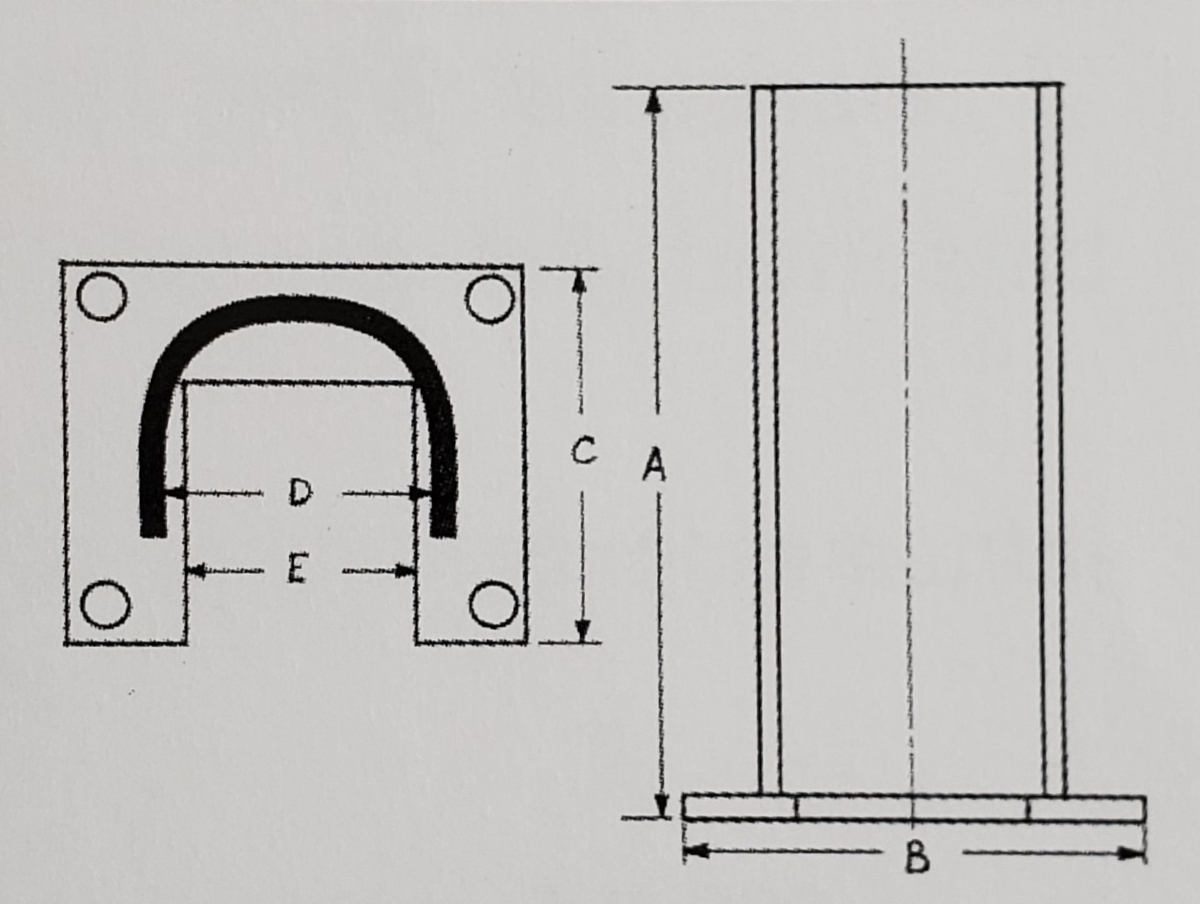

| Model / reference | Configuration | Your column size | A overall height | B plate width | C plate depth | D column opening | E base plate opening | Wt |
|---|---|---|---|---|---|---|---|---|
| 5208 | Post Protectors | 3 | 8" | 7 5/8 | 6 | 4 | 3 3/8 | 7 |
| 5212 | Post Protectors | 3 | 12" | 7 5/8 | 6 | 4 | 3 3/8 | 10 |
| 5218 | Post Protectors | 3 | 18" | 7 5/8 | 6 | 4 | 3 3/8 | 14 |
| 5224 | Post Protectors | 3 | 24" | 7 5/8 | 6 | 4 | 3 3/8 | 19 |
| 5236 | Post Protectors | 3 | 36" | 7 5/8 | 6 | 4 | 3 3/8 | 28 |
| 5248 | Post Protectors | 3 | 48" | 7 5/8 | 6 | 4 | 3 3/8 | 35 |
| 6208 | Post Protectors | 4 | 8" | 7 5/8 | 6 | 5 | 4 3/8 | 8 |
| 6212 | Post Protectors | 4 | 12" | 7 5/8 | 6 | 5 | 4 3/8 | 11 |
| 6218 | Post Protectors | 4 | 18" | 7 5/8 | 6 | 5 | 4 3/8 | 16 |
| 6224 | Post Protectors | 4 | 24" | 7 5/8 | 6 | 5 | 4 3/8 | 21 |
| 6236 | Post Protectors | 4 | 36" | 7 5/8 | 6 | 5 | 4 3/8 | 32 |
| 6248 | Post Protectors | 4 | 48" | 7 5/8 | 6 | 5 | 4 3/8 | 36 |
| Published model references | 12 |
|---|---|
| B plate width | 7 5/8 |
| C plate depth | 6 |
Source: EGA Products product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
Place a steel guard around a rack post or other exposed base where material-handling traffic needs separation from the structure. Compare the guard dimensions with the post and the surrounding aisle.
The source describes 1/4-inch steel plate, models for different column sizes and floor anchoring with 1/2-inch fasteners supplied separately. Existing damage to a rack requires assessment of the rack itself; installing a guard does not repair it.
The manufacturer lists 12 model references on this page. Keep the selected reference with its configuration and specifications; a listed height or capacity for one row does not apply automatically to every option.
For a steel pallet rack post protectors quote, include post dimensions, guard height, floor anchoring, traffic clearance and quantity. Factory Equipment will review the request and respond as quickly as possible.
Documentation & drawings
Manufacturer reference: EGA Pallet Rack Post Protectors reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a model from steel pallet rack post protectors?
Start with post dimensions, guard height, floor anchoring, traffic clearance and quantity. Compare the model rows and request the exact reference so the required configuration can be confirmed.
Does the photograph show every option for steel pallet rack post protectors?
No. Supplier photos are configuration examples. The model reference, comparison row and current drawing determine the arrangement being requested.
How do I request steel pallet rack post protectors?
Choose a reference in the model selector and use the quote link. Include quantity, application, delivery location and required timing. Our team will review the details and respond as quickly as possible.
