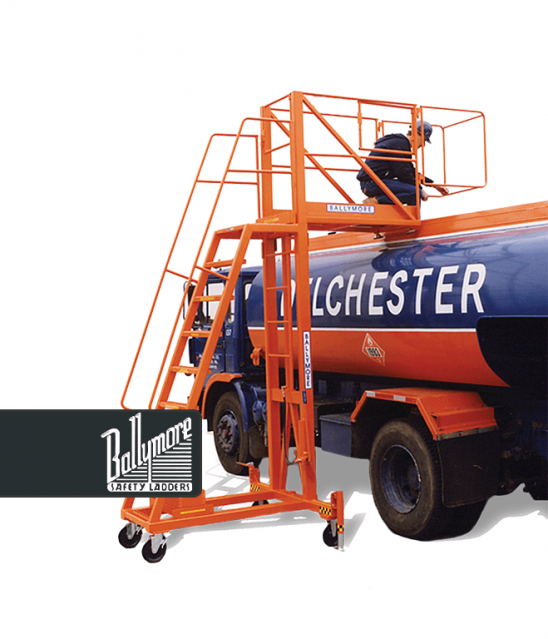

Ballymore TT-711 manufacturer configuration image

Ballymore manufacturer image listed for TT-711. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.

Specifications & options

Model / referencePlatform MaxHeight MinPlatform LengthPlatform WidthUnderclearance HeightWeight Lbs.
TT-91313’ 8”9’ 4”48”24”Adjustable 9’ to 13’1525
TT-913F13’ 8”9’ 4”48”24”Non-Adjustable 9’to 13’1450
TT-7-1111’ 8”7’ 4”48”24”Adjustable 7’ to 11’1450
TT-11-1515’ 8”11’ 4”48”24”Adjustable 11’ to 15’1625
Documented model configurations4
Platform Length48”
Platform Width24”
Catalog feature / option300 LB. CAPACITY
Catalog feature / option9’ to 13’ adjustable work height
Catalog feature / option48” long cantilevered platform
Catalog feature / optionHydraulic hand pump raises & lowers cantilevered platform
Catalog feature / optionOpen serrated grating steps and deck tread
Catalog feature / optionFull rails on both sides, gates at each end of platform
Catalog feature / optionFixed platform height available
Catalog feature / optionPlatform duplex receptacle

Source: 2026 ladder and access catalog, PDF page 25. Confirm the current selected configuration with your quote.

PRODUCT INFORMATION

Equipment overview

Adjustable Tank-Top Work Platforms is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.

Catalog features and options: 300 LB. CAPACITY; 9’ to 13’ adjustable work height ; Provides easy access to tank trucks, railroad cars & other cantilevered applications ; Great for clearing snow and ice off tops of trailers; Manually propelled for use on hard level surfaces ; 48” long cantilevered platform; Hydraulic hand pump raises & lowers cantilevered platform; Open serrated grating steps and deck tread; Slip resistant climbing rungs 28”W x 60”L base, fixed outriggers spread to 69”; Full rails on both sides, gates at each end of platform; 2 swivel & 2 rigid 8” casters for use on hard surfaces ; Two adjustable stabilizing jacks secure lifts to ground; Fixed platform height available; Gray powder coat finish (Standard) Adjustable Height Cantilevered Platforms provide safe access to Tank Trucks, Railroad Cars, Conveyor Systems, Machinery or other applications with limited access.; Tool Tray; Fluorescent tube holder; Platform duplex receptacle ; Removable 30” extension rail optional (Shown) ; Safety Orange Powder Coat Optional; For outdoor applications primer undercoat and powder coat finish is recommended..

Documentation & drawings

Reference: 2026 ladder and access catalog, PDF page 25. The tables reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

How do I choose a model or configuration?

Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.

Are the catalog specifications current?

These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.

How do I request a quote?

Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
