| MODEL NUMBER | WIDTH | LENGTH | PROJECTION | COLOR | # OF HOLES & SIZE | WEIGHT (POUND) |
|---|---|---|---|---|---|---|

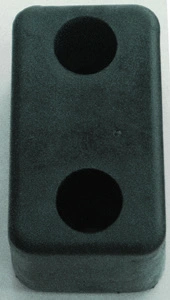

| TB-10 | 3" | 6" | 2 15/16" | BLACK | 2, 5/8" | 3 |
| TB-20 | 3½" | 6" | 3½" | BLACK | 2, 5/8" | 5 |

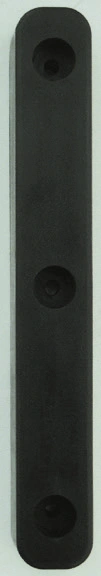

| TB-70 | 2" | 16" | 2" | BLACK | 3, 1/2" | 3 |

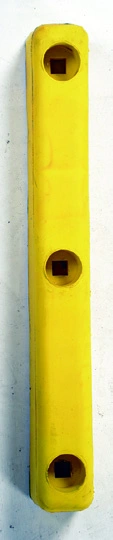

| TB-70-Y | 2" | 16" | 2" | YELLOW | 3, 1/2" | 3 |
| TB-90 | 5 5/8" | 7 5/8" | 3¾" | BLACK | 4, 5/8" | 6 |
| AS-125 | (1) 1/2" x 5", USE WITH TB-10, TB-20, TB-70, TB-70-Y | 1 | ||||
| AS-125-4PK | (4) 1/2" x 5", USE WITH TB-10, TB-20, TB-70, TB-70-Y | 4 | ||||
| AS-584 | (1) 5/8" x 4", USE WITH MODEL TB-90 | 1 | ||||
| AS-584-4PK | (4) 5/8" x 4", USE WITH MODEL TB-90 | 4 |
| Width | 3"; 3½"; 2"; 5 5/8" |
|---|---|
| Length | 6"; 16"; 7 5/8"; (1) 5/8" x 4", USE WITH MODEL TB-90; (4) 5/8" x 4", USE WITH MODEL TB-90 |
| Projection | 2 15/16"; 3½"; 2"; 3¾"; (1) 1/2" x 5", USE WITH TB-10, TB-20, TB-70, TB-70-Y; (4) 1/2" x 5", USE WITH TB-10, TB-20, TB-70, TB-70-Y |
| Color | BLACK; YELLOW |
| # Of Holes & Size | 2, 5/8"; 3, 1/2"; 4, 5/8" |
Source: 2018 catalog, page 45. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists TB-10 through AS-584-4PK within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Width: 3"; 3½"; 2"; 5 5/8"; Length: 6"; 16"; 7 5/8"; (1) 5/8" x 4", USE WITH MODEL TB-90; (4) 5/8" x 4", USE WITH MODEL TB-90. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 45. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 9 model references for this family. The first listed model is TB-10. Compare the model rows and confirm the required configuration when quoting.
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
