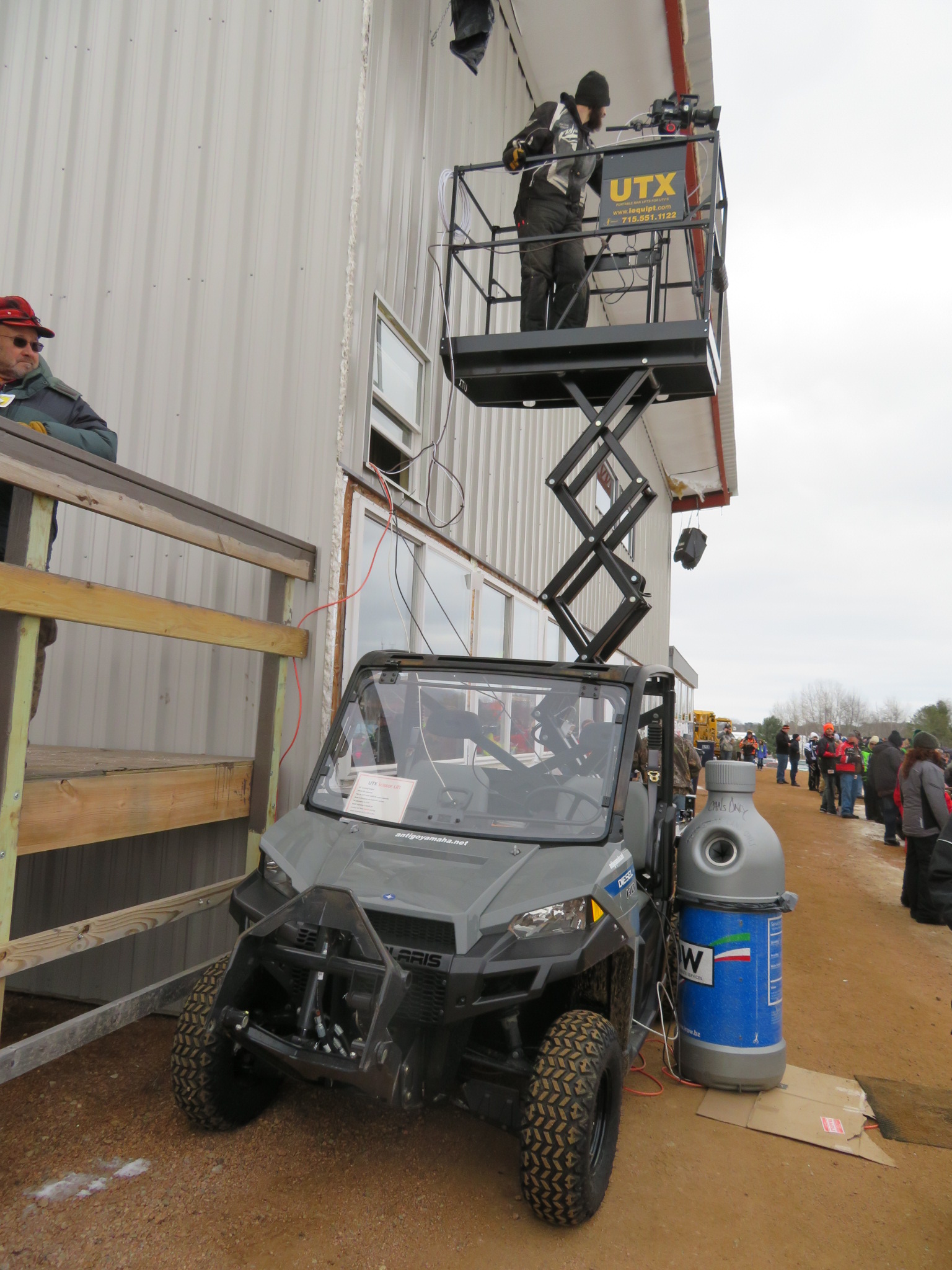

UTX 30 Utility Vehicle Scissor Lift

Original catalog photograph. Confirm the selected model and configuration with your quote.

Specifications & options

Power supply12 VDC

Source: existing product information. Confirm current specifications, supplier-listed approvals and optional configurations with your quote.

PRODUCT INFORMATION

Equipment overview

UTX 30 Utility Vehicle Scissor Lift

Visual & Audible Alarms & Lockout

Outrigger Legs for Stability

Non-slip Platform & Steps

Overload Alarm & Lockout

Tilt Alarm & Lockout

Stability Alarm and Lockout

Emergency Lowering Valve

Emergency Stop

Push to Enable Function

UTX 30 Utility Vehicle Scissor Lift Specifications:

UTX30 Max Work Height 18’ (5.5m)

UTX30 Max Deck Height 12’ (3.7m)

UTX30 Max Load 500 lbs. (227kg)

Length 30” (76.2cm)

Width 60” (152.4cm)

Guard Rail Ht. 45” (114cm)

Toe Board 4”(10cm)

12 VDC System with Heavy Duty Group 31 Battery

On Board Battery Charger

Fork Lift Loadable

Wt. 925 lbs. (420 kg) UTX30

Easily removed for storageUTX 30 Utility Vehicle Scissor Lif

Self-powered with charger

Quick and easy manual leveling

Can be leveled to lift on uneven ground

Can be fitted to most utility UTVs

4 standard jacks included

Easy moving from one place to the next. Less than 3 minutes to remove and store the UTX using the 4 jacks. There are just 2 bolts!

UTX 30 Utility Vehicle Scissor Lift Options & Accessories:

Electric Jacks

Electric Jack Remote Control

Power Driver Jacks

Fenders

Quick Lock System

Utility Box

Compatible Utility Vehicles UTX30:

Columbia Payloader – with and without dump capability

Kubota RTV 2017 – with dump capability

Polaris Ranger 2016, 2017 – with dump capability

John Deere 825i and 625i 2016 – no dump capability

Arctic Cat HDX 2017 – no dump capability

Bobcat 3600 2016 – no dump capability

Can Am Defender 2016 – no dump capability

Honda Pioneer 2017 – no dump capability

Yamaha Super hauler 2016
