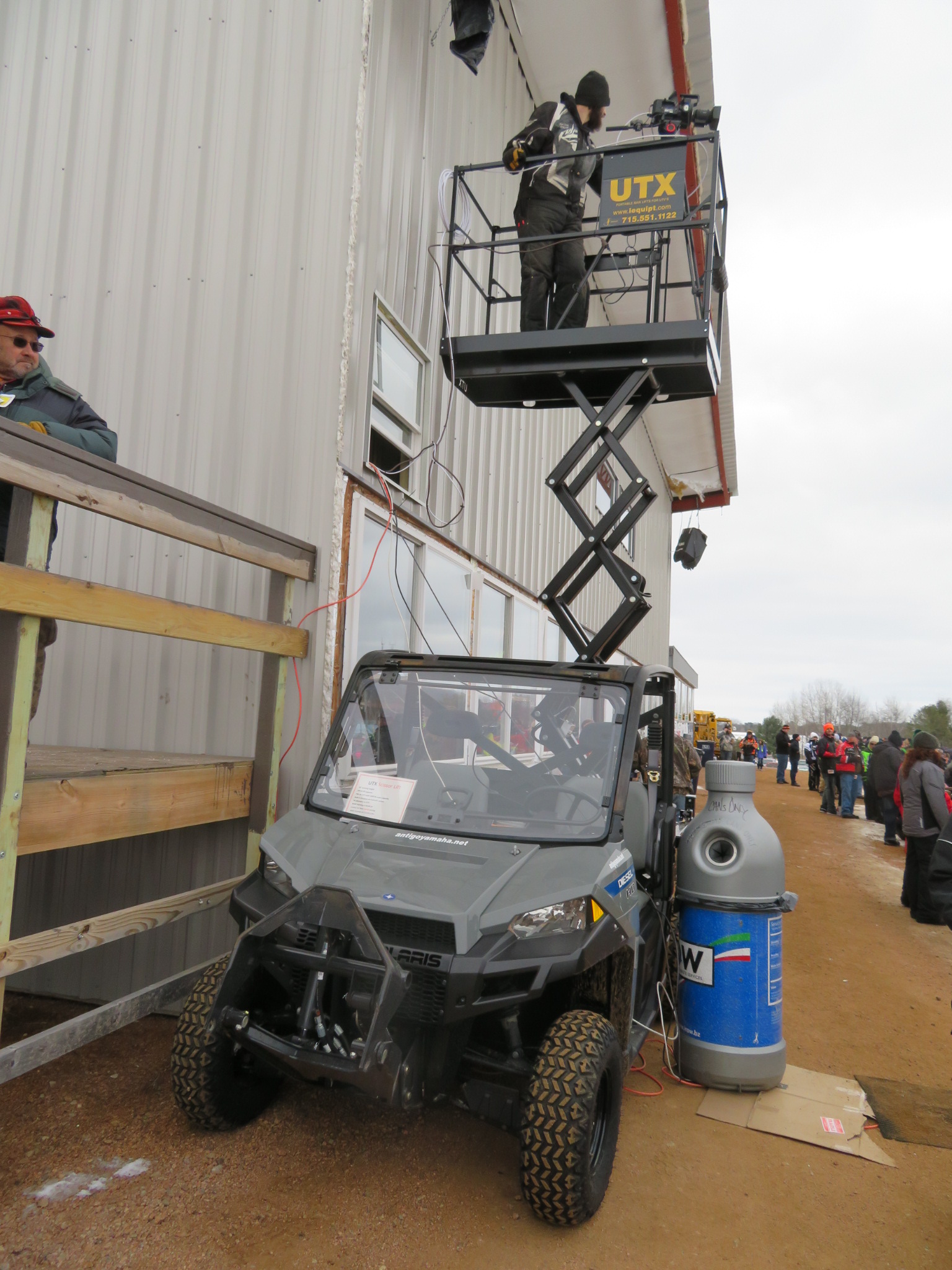

UTX 44 Utility Vehicle Scissor Lift

Original catalog photograph. Confirm the selected model and configuration with your quote.

Specifications & options

Power supply12 VDC

Source: existing product information. Confirm current specifications, supplier-listed approvals and optional configurations with your quote.

PRODUCT INFORMATION

Equipment overview

UTX 44 Utility Vehicle Scissor Lift

Visual & Audible Alarms & Lockout

Outrigger Legs for Stability

Non-slip Platform & Steps

Overload Alarm & Lockout

Tilt Alarm & Lockout

Stability Alarm and Lockout

Emergency Lowering Valve

Emergency Stop

Push to Enable Function

UTX 44 Utility Vehicle Scissor Lift Specifications:

UTX44 Max Work Height 19’ (5.8m)

UTX44 Max Deck Height 13’ (4.0m)

Wt. 1085 lbs. (493 kg) UTX44

UTX44 Max Load 600 lbs. (273kg)

Length 44” (112cm) UTX44

Width 60” (152.4cm)

Guard Rail Ht. 45” (114cm)

Toe Board 4”(10cm)

12 VDC System with Heavy Duty Group 31 Battery

On Board Battery Charger

Fork Lift Loadable

Easily removed for storage

Self-powered with charger

Quick and easy manual leveling

Can be leveled to lift on uneven ground

Can be fitted to most utility UTVs

4 standard jacks included

Easy moving from one place to the next. Less than 3 minutes to remove and store the UTX using the 4 jacks. There are just 2 bolts!

UTX 44 Utility Vehicle Scissor Lift Options & Accessories:

Electric Jacks

Electric Jack Remote Control

Power Driver Jacks

Fenders

Quick Lock System

Utility Box

Compatible Utility Vehicles UTX44:

Columbia Payloader – with and without dump capability

Kubota RTV 2017 – with dump capability

Polaris Ranger 2016, 2017 – with dump capability

John Deere 825i and 625i 2016 – no dump capability

Arctic Cat HDX 2017 – no dump capability

Bobcat 3600 2016 – no dump capability

Can Am Defender 2016 – no dump capability

Honda Pioneer 2017 – no dump capability

Yamaha Super hauler 201

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 12742?

The technical table lists specifications explicitly stated in the existing product information. Confirm the selected configuration and current supplier documentation with your quote.

How do I request a quote for 12742?

Include the product name and SKU 12742, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
