Open an image to inspect its original detail.
| Model / reference | Capacity (cu yd) | Fork Pocket Size L x W x H (in) | Distance Between Fork Pockets (in) | Casters | Dimensions L x W x H (in) | Capacity (lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| F89679 | 1/2 | 30 x 6 x 21/4 | 191/4 | (4) 6” Phenolic: 2 Rigid, 2 Swivel | 49 x 32 x 30 | 2,000 | 150 |
| F89680 | 1 | 30 x 6 x 21/4 | 191/4 | (4) 6” Phenolic: 2 Rigid, 2 Swivel | 56 x 32 x 45 | 2,000 | 210 |
| Documented model configurations | 2 |
|---|---|
| Fork Pocket Size L x W x H (in) | 30 x 6 x 21/4 |
| Distance Between Fork Pockets (in) | 191/4 |
| Casters | (4) 6” Phenolic: 2 Rigid, 2 Swivel |
| Capacity (lb) | 2,000 |
| Catalog feature / option | Fork pockets allow for efficient forklift transportation. |
| Catalog feature / option | Use individually or in tandem with Forklift Attachment for Hydraulic Powered Self-Dumping System. |
Source: 2025 storage and handling catalog, PDF page 28. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

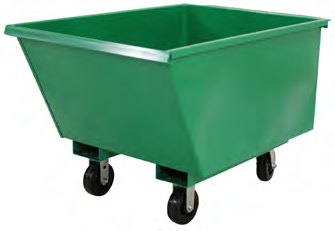

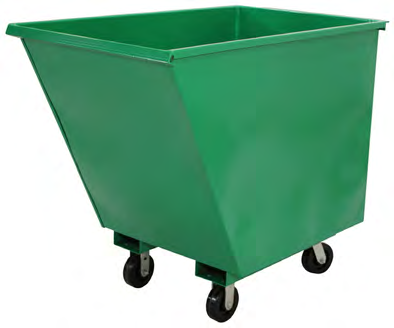

Mobile Waste Hoppers is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Ideal for storing, transporting, and dumping a variety of material.; Fork pockets allow for efficient forklift transportation.; Full width handle for easy push/pull maneuvering.; Use individually or in tandem with Forklift Attachment for Hydraulic Powered Self-Dumping System.; Heavy duty 14 gauge steel construction.; Leak-proof continuous solid welds.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 28. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
