| Model / reference | Style | Base | Height (in) | Lift (in) / Height | Lift (in) / Distance | Power Source / Drive | Power Source / Lift | Wheels / Lift | Dimensions L x W x H (in) / Lift | Capacity (lb) / Lift | Weight (lb) / Lift |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F88567B5 | Manual | Straddle | 78 | 71 | 58 | Manual | Manual | (2) 6” Wheels & (2) 4” Casters: 2 Rigid, 2 Swivel | 43 x 30 x 78 | 800 | 355 |
| F88568B4 | Manual | Straddle | 90 | 84 | 71 | Manual | Manual | (2) 6” Wheels & (2) 4” Casters: 2 Rigid, 2 Swivel | 43 x 30 x 90 | 800 | 380 |
| F88553C1 | Semi- Powered | Straddle | 78 | 71 | 58 | Manual | 12V Battery | (2) 6” Wheels & (2) 4” Casters: 2 Rigid, 2 Swivel | 43 x 30 x 78 | 800 | 465 |
| F88561C1 | Semi- Powered | Straddle | 90 | 84 | 71 | Manual | 12V Battery | (2) 6” Wheels & (2) 4” Casters: 2 Rigid, 2 Swivel | 43 x 30 x 90 | 800 | 490 |
| F87022B6 | Semi- Powered | Straddle | 78 | 71 | 58 | Manual | Pneumatic | (2) 6” Wheels & (2) 4” Casters: 2 Rigid, 2 Swivel | 43 x 30 x 78 | 800 | 355 |
| F87040B4 | Semi- Powered | Straddle | 90 | 84 | 71 | Manual | Pneumatic | (2) 6” Wheels & (2) 4” Casters: 2 Rigid, 2 Swivel | 43 x 30 x 90 | 800 | 380 |
| Documented model configurations | 6 |
|---|---|
| Base | Straddle |
| Power Source / Drive | Manual |
| Wheels / Lift | (2) 6” Wheels & (2) 4” Casters: 2 Rigid, 2 Swivel |
| Capacity (lb) / Lift | 800 |
| Catalog feature / option | Platforms, forks, and drum attachments available; interchangeable. |
| Catalog feature / option | Standalone unit (no forklift required). |
Source: 2025 storage and handling catalog, PDF page 37. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

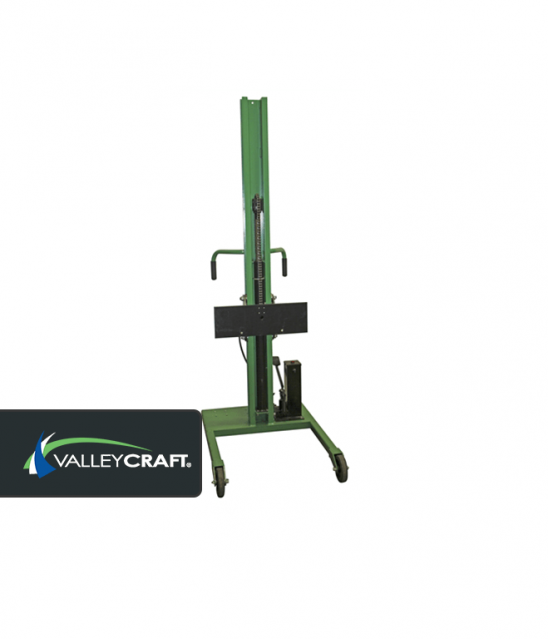

Manual-Drive Interchangeable-Attachment Steel Lifts is presented here with the configurations documented in the 2025 storage and handling catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Solves a variety of material handling needs with one base unit.; Base unit works with a variety of optional attachments.; Platforms, forks, and drum attachments available; interchangeable.; Ergonomically lift and/or rotate a variety of material.; Easily maneuver supplies throughout facilities.; Lift up to 84” in less than 30 seconds.; Standalone unit (no forklift required).; Fully powered options have up to 2.5 MPH of drive speed.; Fully and Semi-Powered units have a lift speed of 3.4" per second.; Heavy gauge steel construction.; Premium powder coat paint finish.; Ships fully assembled, ready to use..
Reference: 2025 storage and handling catalog, PDF page 37. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2025 storage and handling catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
