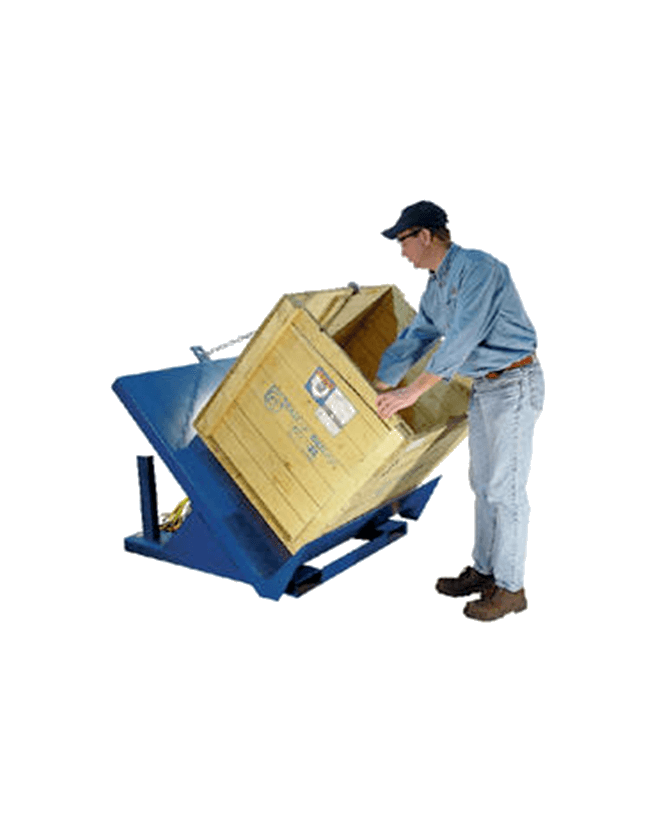

Vestil EM1-200-4250-2 manufacturer product photograph

Vestil manufacturer photograph: EM1-200-4250-2 shown within this product family. Confirm the selected model, finish and options with your quote.

Specifications & options

Platform Width (Inches)42, 48, 60
Platform Length (Inches)48, 50
Level Height (Inches)24
Voltage460
Phase3
Maximum Degree Of Tilt45, 90
Uniform Capacity (lbs)2000, 4000, 6000
Manufacture Part NumberEM1-200-4250-2, EM1-200-4250-4, EM1-200-4250-6, EM1-200-4848-2, EM1-200-4848-4, EM1-200-4848-6, EM1-200-6050-2, EM1-200-6050-4, EM1-200-6050-6, EM1-500-4250-2, EM1-500-4250-4, EM1-500-4250-6, EM1-500-4848-2, EM1-500-4848-4, EM1-500-4848-6, EM1-500-6050-2, EM1-500-6050-4, EM1-500-6050-6

Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.

PRODUCT INFORMATION

Equipment overview

The model EM1-200 tilts pallets, crates, boxes, or baskets 45° to facilitate easy container loading or unloading. Tables feature all welded steel construction for years of durability. Unique design minimizes pinch points to meet OSHA requirements. Units are equipped with an industrial quality, 56 frame 2 HP motor. This motor delivers best torque with minimal amperage draw for maximum life. Standard voltage is 460V 3 phase, other voltages available. A 24V push button hand control is standard. Survey sheet available on page C55. The model EM1-500 incorporates all of the same quality features found in the Series EM1-200, but features a full 90° of tilt. Unit is ideal for upending products in shipping and receiving operations. Standard with double acting cylinder for controlled tilt and return. Unit must be lagged to floor.

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 31-10-0113?

Platform Width (Inches): 42, 48, 60; Platform Length (Inches): 48, 50; Level Height (Inches): 24. Confirm the complete selected configuration before ordering.

How do I request a quote for 31-10-0113?

Include the product name and SKU 31-10-0113, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
