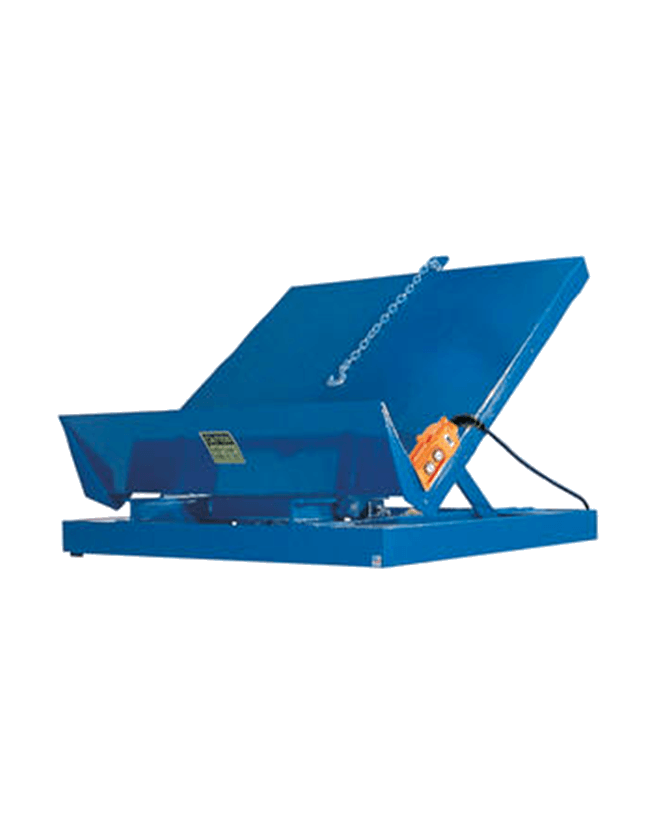

Vestil EHTT manufacturer product photograph

Vestil manufacturer photograph: EHTT shown within this product family. Confirm the selected model, finish and options with your quote.

Specifications & options

Platform Width (Inches)48
Platform Length (Inches)48
Level Height (Inches)10, 8
Voltage460
Phase3
Maximum Degree Of Tilt45
Tilt TypeHinge, Sliding
Uniform Capacity (lbs)4000
Manufacture Part NumberEHTT, EHTT-L

Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.

PRODUCT INFORMATION

Equipment overview

Hinge and Sliding Tilt Tables offer the rugged durability of the standard Efficiency Master line of tilters, plus they offer an extra low platform height. A 12″ lip without side gussets allows for loading and unloading on three sides. Standard features include a 2 HP 460V AC power unit with a 24 volt two button hand held pendant control, other voltages available. A pressure plated pump coupled to an application specific manifold features counterbalanced valves and modulated flow control for maximum efficiency. The Sliding Tilt Table incorporates a patented sliding link-tilt design for maximum stability while occupying minimum space. As the table is tilted, the front edge of the container moves away from the operator. The center-of-gravity of the load remains closer to the center of the frame. Side gussets are required when ordering optional accordion skirt..

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 31-10-0097?

Platform Width (Inches): 48; Platform Length (Inches): 48; Level Height (Inches): 10, 8. Confirm the complete selected configuration before ordering.

How do I request a quote for 31-10-0097?

Include the product name and SKU 31-10-0097, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
