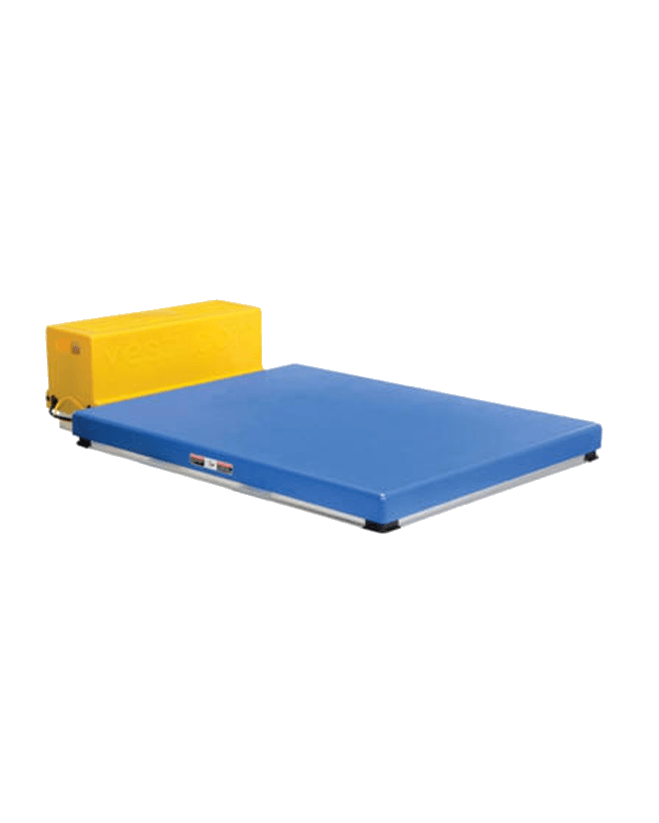

Vestil EHE-2 manufacturer product photograph

Vestil manufacturer photograph: EHE-2 shown within this product family. Confirm the selected model, finish and options with your quote.

Specifications & options

Platform Width (Inches)52.5, 53.5
Platform Length (Inches)55.75, 63
Lowered Height (Inches)3.5, 4.25
Raised Height (Inches)33.5
Voltage115
Phase1
Uniform Capacity (lbs)2000, 3000
Manufacture Part NumberEHE-2, EHE-3, EHU-2, EHU-3

Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.

PRODUCT INFORMATION

Equipment overview

The open center on the “U” Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform. Series EHE center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with steel cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Inside width is 29¾” by 41¼” long. Power supply is 115V single phase with pedestal mounted push buttons.

Documentation & drawings

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

What specifications are listed for 31-10-0040?

Platform Width (Inches): 52.5, 53.5; Platform Length (Inches): 55.75, 63; Lowered Height (Inches): 3.5, 4.25. Confirm the complete selected configuration before ordering.

How do I request a quote for 31-10-0040?

Include the product name and SKU 31-10-0040, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.

Can you confirm freight and delivery timing?

Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
