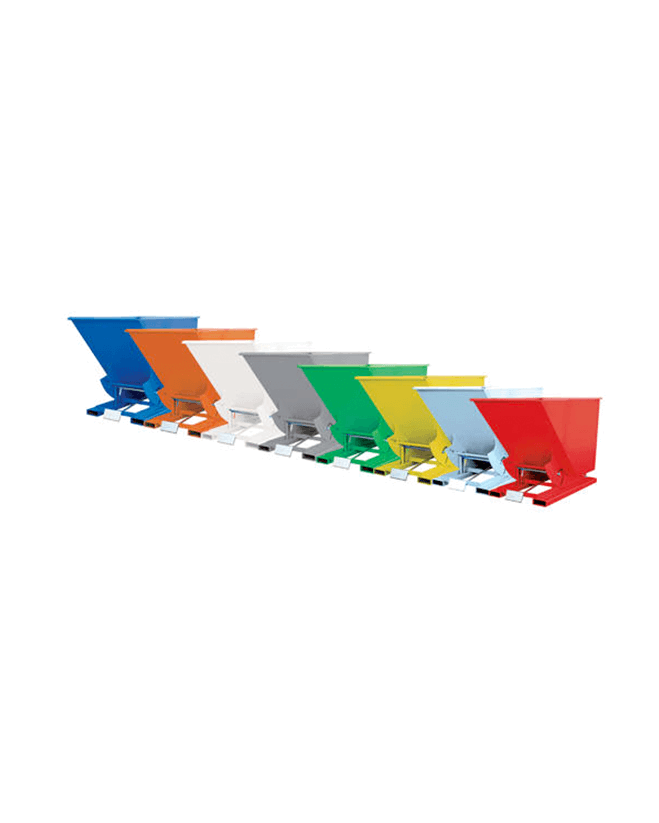

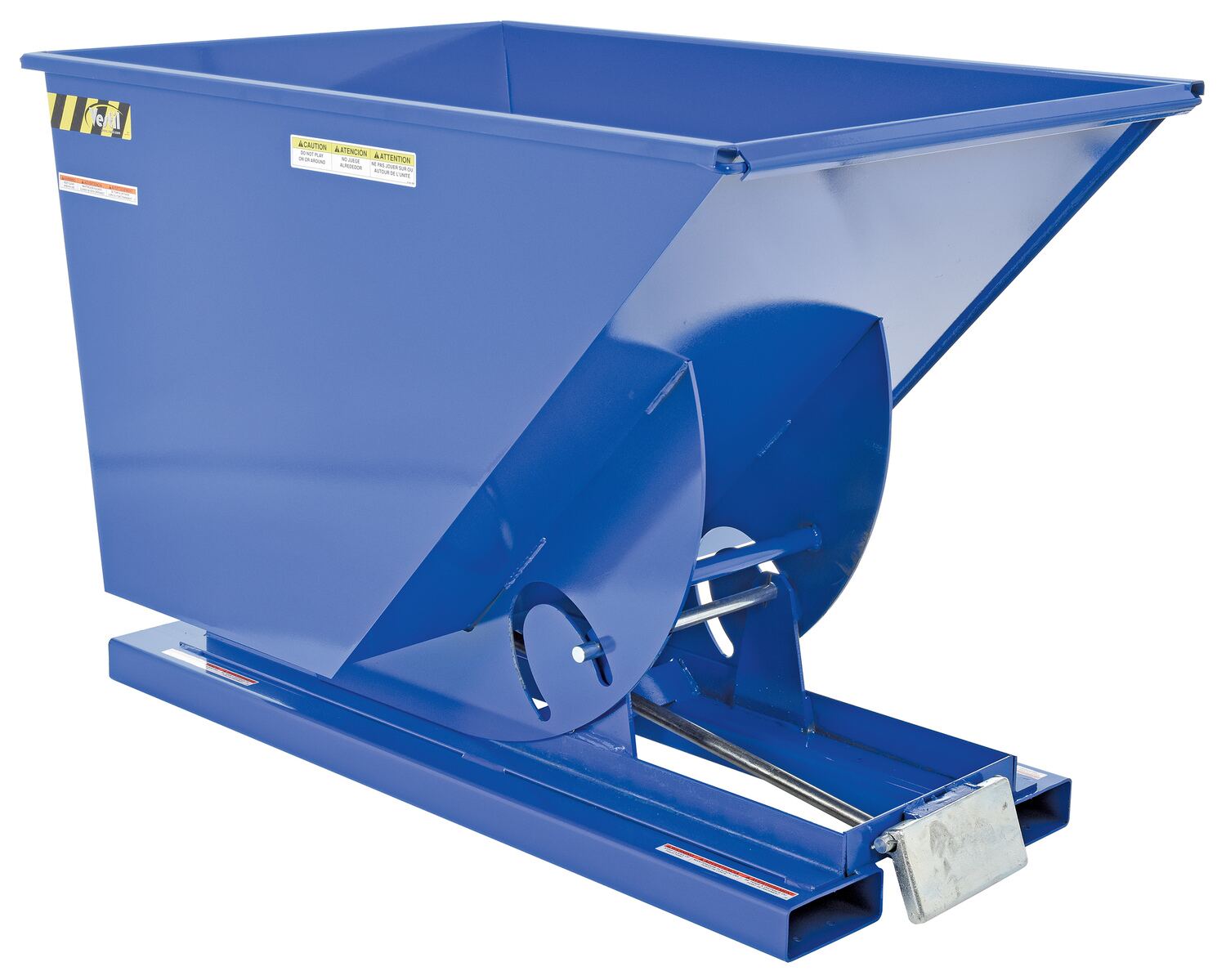

Vestil manufacturer photograph: D-100-HD shown within this product family. Confirm the selected model, finish and options with your quote.
| Size (Cubic Yards) | 0.25, 0.33, 0.75, 1, 1.5, 2, 2.5, 3, 3.5, 4, 5 |
|---|---|
| Width (Inches) | 26, 31.5, 33.5, 41.25, 43.25, 56.25, 64, 69.25, 72.75, 81.5, 86.75 |
| Length (Inches) | 52, 61, 66.75, 69, 79 |
| Height (Inches) | 0.8, 38, 38.5, 43, 50.625, 52, 65 |
| Fork Opening Width (Inches) | 18, 19.75, 28 |
| Rated Capacity (lbs) | 2000, 4000, 6000 |
| Manufacture Part Number | D-100-HD, D-100-LD, D-100-MD, D-150-HD, D-150-LD, D-150-MD, D-200-HD, D-200-LD, D-200-MD, D-25-HD, D-25-LD, D-25-MD, D-250-HD, D-250-LD, D-250-MD, D-300-HD, D-300-LD, D-300-MD, D-33-HD, D-33-LD, D-33-MD, D-350-HD, D-400-HD, D-50-HD, D-50-LD, D-50-MD, D-500-HD, D-75-HD, D-75-LD, D-75-MD |
Specifications reflect the existing supplier catalog. Confirm the selected model and options before ordering.
PRODUCT INFORMATION
Units feature a full 90° dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. A safety restraint is provided to secure the hopper to the fork truck. 22″ L usable fork pockets measure 7″ W x 2″ H. Formed base thickness is 1/4″. Powder coat blue finish. Must be attached to fork truck when dumping
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Size (Cubic Yards): 0.25, 0.33, 0.75, 1, 1.5, 2, 2.5, 3, 3.5, 4, 5; Width (Inches): 26, 31.5, 33.5, 41.25, 43.25, 56.25, 64, 69.25, 72.75, 81.5, 86.75; Length (Inches): 52, 61, 66.75, 69, 79. Confirm the complete selected configuration before ordering.
Include the product name and SKU 12-10-0014, quantity, application, full delivery address and needed-by date. Add required dimensions, load and site constraints where relevant.
Freight and delivery timing need to be confirmed for the selected configuration, quantity and destination. Include access restrictions and unloading requirements with your quote request.
SKU 12-10-0001

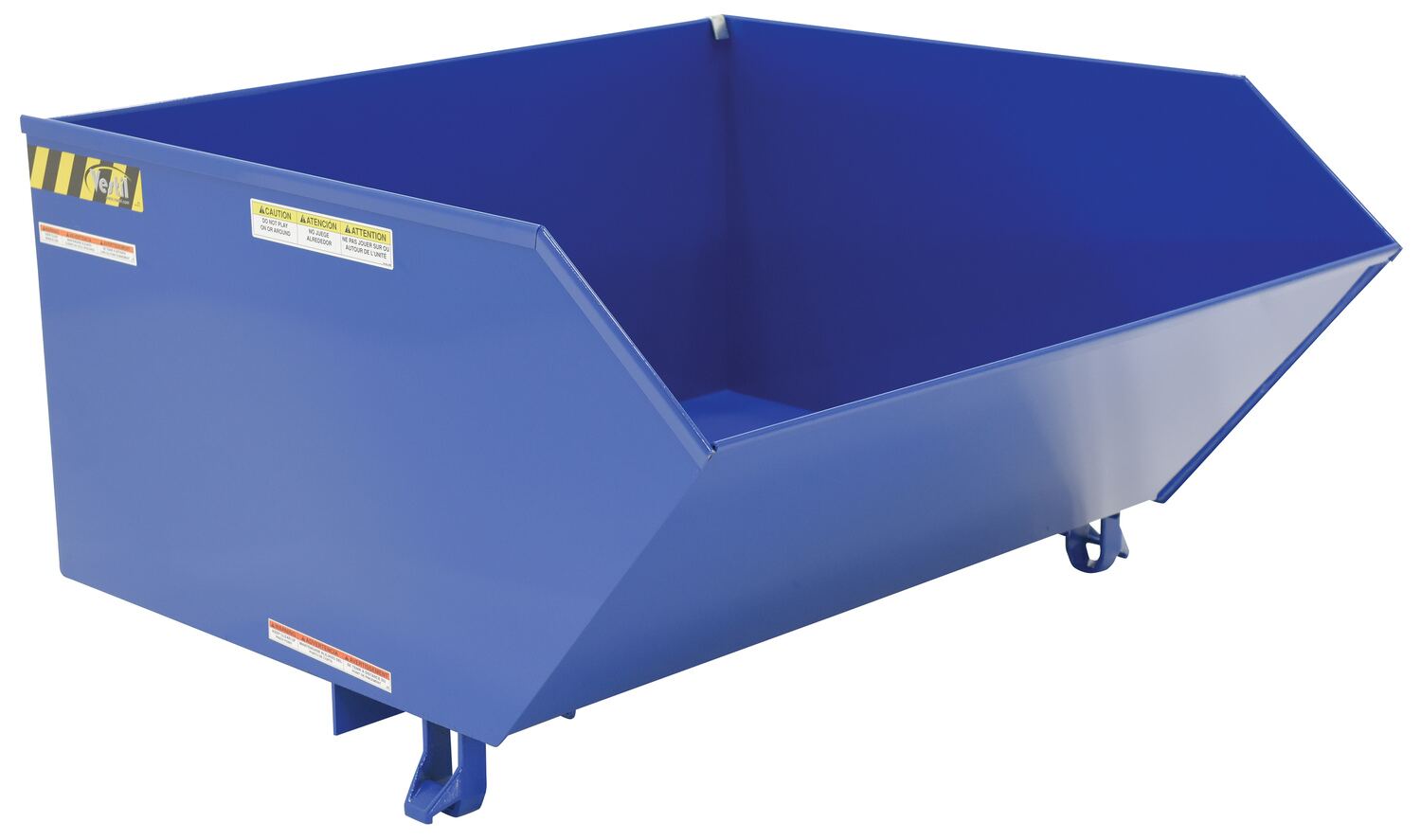

Vestil Low Profile 90 Degree Self Dumping H Style Steel Hoppers. Size (Cubic Yards): 0.25, 1, 1.5, 5; Width (Inches): 24.4375, 24.5625, 24.6875, 48.43…
SKU 12-10-0059

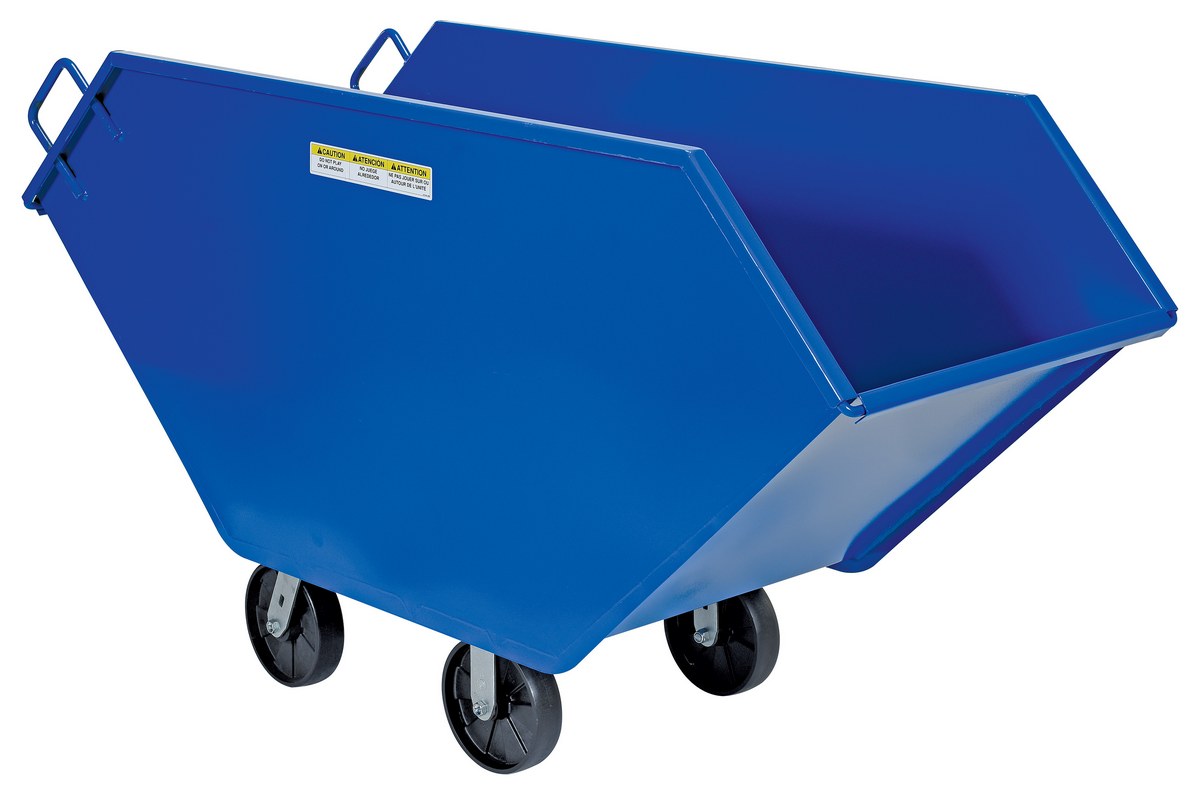

Vestil Chip And Waste Trucks. Size (Cubic Yards): 0.65, 0.83, 1; Width (Inches): 26, 32, 38; Length (Inches): 67. Review the equipment information bel…
SKU 12-10-0056

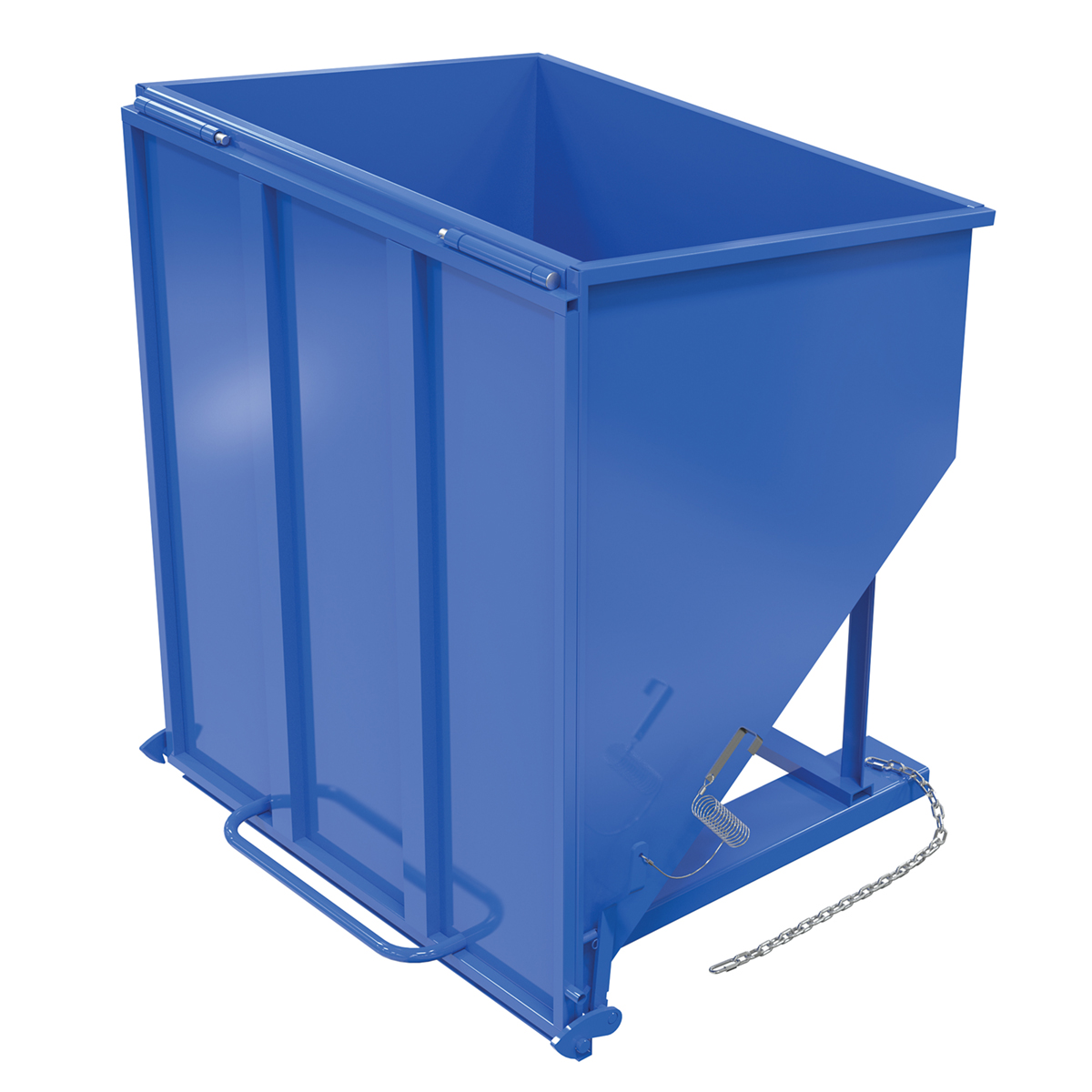

Vestil Steel Chute Hopper. Size (Cubic Yards): 2, 3; Width (Inches): 60.5, 85.75; Length (Inches): 57, 57.25. Review the equipment information below t…
