SKU AWR-28-4A
Aluminum Walk Ramps
Aluminum Walk Ramps: 84 catalog model references. Type: A; B; 4-Wheel Cart: 3,000; 2,800; 2,500; 2,200; 1,900; 1,600; 1,000.
- Type
- A; B
- 4-Wheel Cart
- 3,000; 2,800; 2,500; 2,200; 1,900; 1,600; 1,000
Open an image to inspect its original detail.
Specifications & options
| TYPE | MODEL NUMBER | DIMENSIONS (WIDTH x LENGTH) | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|

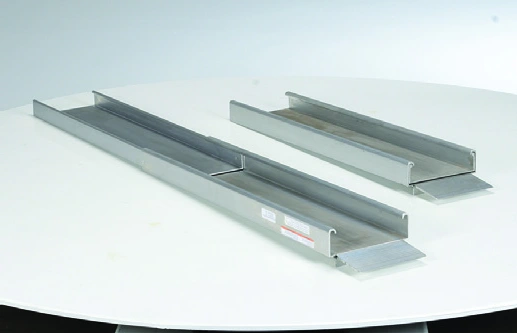

| A | D-TR-72 | 9 9/16" x 76 1/16" | 550 lb. | 38 pr. |
| A | D-TR-88 | 9 9/16" x 88 1/16" | 550 lb. | 44 pr. |

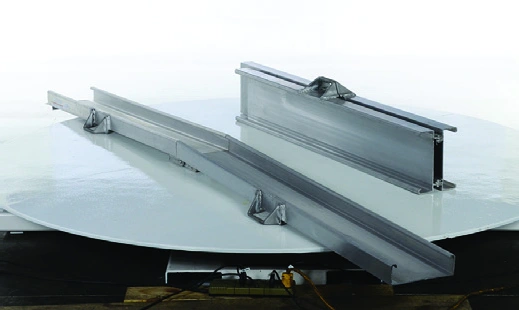

| B | D-FAR-120 | 12 1/16" x 124" | 550 lb. | 78 pr. |

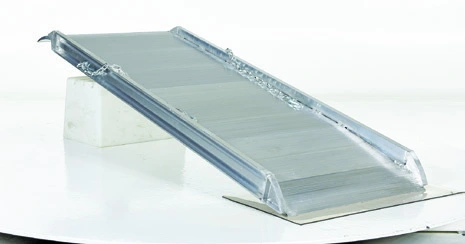

| C | D-AW-88 | 36" x 88" | 500 lb. | 182 |
| C | D-AW-132 | 36" x 132" | 500 lb. | 177 |
| C | D-AW-168 | 36" x 168" | 500 lb. | 227 |
| D | D-ROL-48 | 50 7/16" x 48" | 500 lb. | 52 |
| Type | A; B; C; D |
|---|---|
| Dimensions (Width X Length) | 9 9/16" x 76 1/16"; 9 9/16" x 88 1/16"; 12 1/16" x 124"; 36" x 88"; 36" x 132"; 36" x 168"; 50 7/16" x 48" |
| Uniform Capacity | 550 lb.; 500 lb. |
Source: 2018 catalog, page 31. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists D-TR-72 through D-ROL-48 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Type: A; B; C; D; Dimensions (Width X Length): 9 9/16" x 76 1/16"; 9 9/16" x 88 1/16"; 12 1/16" x 124"; 36" x 88"; 36" x 132"; 36" x 168"; 50 7/16" x 48". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 31. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for wheel chair ramps?
The catalog records 7 model references for this family. The first listed model is D-TR-72. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right wheel chair ramps configuration?
Match wheel and mounting dimensions to the equipment, floor surface and load. Check the selected model’s table rather than applying one wheel’s dimensions to the entire range.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
