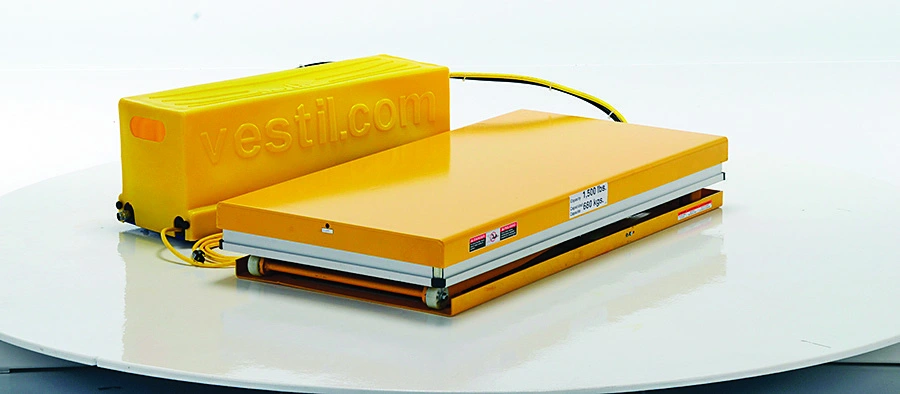

Work Station Electric Hydraulic Scissor Tables catalog equipment view

Open an image to inspect its original detail.

Work Station Electric Hydraulic Scissor Tables catalog equipment view

Specifications & options

MODEL NUMBERPLATFORM SIZE (W x L)UNIFORM CAPACITYRAISED HEIGHTLOWERED HEIGHTTRAVEL TIMEWEIGHT (POUND)
EHLT-WS-2436-1.5-3124" x 36"1,500 lb.31"8 5/8"13 sec.385
EHLT-WS-2448-1.5-3624" x 48"1,500 lb.36"7"13 sec.415
EHLT-WS-3248-1.5-3632" x 48"1,500 lb.36"7"13 sec.430
EHLT-WS-4048-1.5-3640" x 48"1,500 lb.36"7"13 sec.457
EHLT-WS-2436-PSS24" x 36"1,500 lb.36"7"13 sec.400
EHLT-WS-2448-PSS24" x 48"1,500 lb.36"7"13 sec.415
EHLT-WS-4048-PSS40" x 48"1,500 lb.36"7"13 sec.457
TRAVEL TIME BASED ON 3 PHASE POWER
Platform Size (W X L)24" x 36"; 24" x 48"; 32" x 48"; 40" x 48"
Uniform Capacity1,500 lb.
Raised Height31"; 36"
Lowered Height8 5/8"; 7"
Travel Time13 sec.

Source: 2018 catalog, page 99. Confirm current specifications and options for the selected model.

PRODUCT INFORMATION

Equipment overview

Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.

The catalog lists EHLT-WS-2436-1.5-31 through TRAVEL TIME BASED ON 3 PHASE POWER within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.

Configuration details in this range include Platform Size (W X L): 24" x 36"; 24" x 48"; 32" x 48"; 40" x 48"; Uniform Capacity: 1,500 lb.. These values cover multiple models; consult the individual row for the model being quoted.

These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.

Documentation & drawings

Reference: 2018 product catalog, page 99. The model tables above reproduce the documented configurations.

Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.

Request model documentation ↗

Questions about this equipment

Which models are listed for work station electric hydraulic scissor tables?

The catalog records 8 model references for this family. The first listed model is EHLT-WS-2436-1.5-31. Compare the model rows and confirm the required configuration when quoting.

How do I choose the right work station electric hydraulic scissor tables configuration?

Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.

Are these current product specifications?

The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
