Equipment details

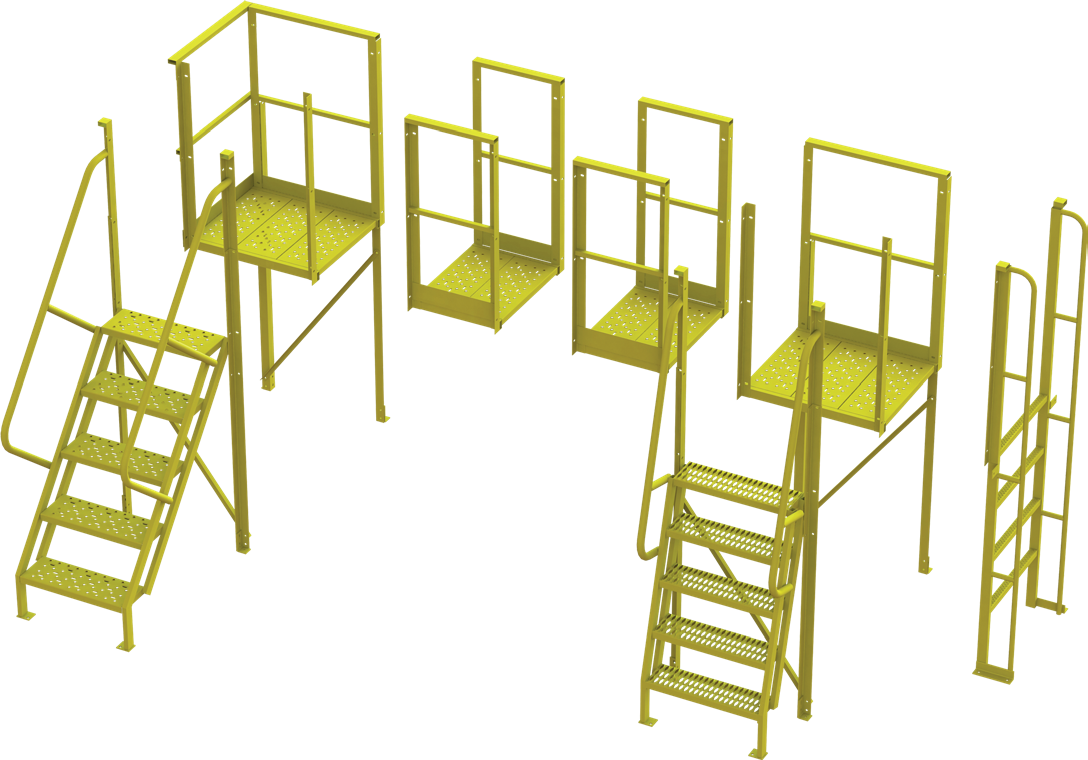

Heavy-Duty Industrial Crossover Ladders
Heavy-Duty Industrial Crossover Ladders. Documented model configurations: 18.
- Documented model configurations
- 18
Open an image to inspect its original detail.
Specifications & options
| Model / reference | # of Steps | Step Width | Step Depth | Platform Height | Overall Height | Base Width | Vertical Clearance | Weight | Platform Length | Platform Width | Handrail Height | Overall Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCL5003246 | 3 | 24" | 10" | 30" | 72" | 26.5" | 28" | 128 | — | — | — | — |
| UCL5004246 | 4 | 24" | 10" | 40" | 82" | 26.5" | 38" | 144 | — | — | — | — |
| UCL5005246 | 5 | 24" | 10" | 50" | 92" | 26.5" | 48" | 200 | — | — | — | — |
| UCL5006246 | 6 | 24" | 10" | 60" | 102" | 26.5" | 58" | 226 | — | — | — | — |
| UCL5007246 | 7 | 24" | 10" | 70" | 112" | 26.5" | 68" | 254 | — | — | — | — |
| UCL5008246 | 8 | 24" | 10" | 80" | 122" | 26.5" | 78" | 281 | — | — | — | — |
| UCL5009246 | 9 | 24" | 10" | 90" | 132" | 26.5" | 88" | 308 | — | — | — | — |
| UCL7503246 | 3 | 24" | 7" | 30" | 72" | 26.5" | 28" | 160 | — | — | — | — |
| UCL7504246 | 4 | 24" | 7" | 40" | 82" | 26.5" | 38" | 140 | — | — | — | — |
| UCL7505246 | 5 | 24" | 7" | 50" | 92" | 26.5" | 48" | 190 | — | — | — | — |
| UCL7506246 | 6 | 24" | 7" | 60" | 102" | 26.5" | 58" | 210 | — | — | — | — |
| UCL7507246 | 7 | 24" | 7" | 70" | 112" | 26.5" | 68" | 240 | — | — | — | — |
| UCL7508246 | 8 | 24" | 7" | 80" | 122" | 26.5" | 78" | 248 | — | — | — | — |
| UCL7509246 | 9 | 24" | 7" | 90" | 132" | 26.5" | 88" | 276 | — | — | — | — |
| UCL9003246 | 3 | 24" | 2.5" | 30" | 72" | 30" | 28" | 104 | — | — | — | — |
| UCL9004246 | 4 | 24" | 2.5" | 40" | 82" | 30" | 38" | 117 | — | — | — | — |
| UCL9005246 | 5 | 24" | 2.5" | 50" | 92" | 30" | 48" | 156 | — | — | — | — |
| UCL9006246 | 6 | 24" | 2.5" | 60" | 102" | 84" | 58" | 168 | — | — | — | — |
| UCL9007246 | 7 | 24" | 2.5" | 70" | 112" | 84" | 68" | 184 | — | — | — | — |
| UCL9008246 | 8 | 24" | 2.5" | 80" | 122" | 84" | 78" | 193 | — | — | — | — |
| UCL9009246 | 9 | 24" | 2.5" | 90" | 132" | 84" | 88" | 214 | — | — | — | — |
| UCB20246 | — | — | — | — | 44" | — | — | — | 20" | 24" | 42" | — |
| UCB30246 | — | — | — | — | 44" | — | — | — | 30" | 24" | 42" | — |
| ULK0324 | — | — | — | — | 30" | — | — | — | — | — | — | 24" |
| ULK0424 | — | — | — | — | 40" | — | — | — | — | — | — | 24" |
| ULK0524 | — | — | — | — | 50" | — | — | — | — | — | — | 24" |
| ULK0624 | — | — | — | — | 60" | — | — | — | — | — | — | 24" |
| ULK0724 | — | — | — | — | 70" | — | — | — | — | — | — | 24" |
| ULK0824 | — | — | — | — | 80" | — | — | — | — | — | — | 24" |
| ULK0924 | — | — | — | — | 90" | — | — | — | — | — | — | 24" |
| UCT03246 | — | — | — | 30" | 72" | — | 28" | — | — | 24" | — | — |
| UCT04246 | — | — | — | 40" | 82" | — | 38" | — | — | 24" | — | — |
| UCT05246 | — | — | — | 50" | 92" | — | 48" | — | — | 24" | — | — |
| UCT06246 | — | — | — | 60" | 102" | — | 58" | — | — | 24" | — | — |
| UCT07246 | — | — | — | 70" | 112" | — | 68" | — | — | 24" | — | — |
| UCT08246 | — | — | — | 80" | 122" | — | 78" | — | — | 24" | — | — |
| UCT09246 | — | — | — | 90" | 132" | — | 88" | — | — | 24" | — | — |
| Documented model configurations | 37 |
|---|---|
| Catalog feature / option | Rail Kit item URK used in place of ladder to close off platform opening Models Shown are for Perforated Treads Grip Strut (2) |
Source: 2026 ladder and access catalog, PDF page 44. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
1,000 lb Industrial Crossover Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: Combine 20” or 30” Bridge spans to create desired horizontal clearance; Leg kit required for spans greater than 90” in length; Rail Kit item URK used in place of ladder to close off platform opening Models Shown are for Perforated Treads Grip Strut (2).
Model and option notes: 75 Incline; 90 Incline.
Documentation & drawings
Reference: 2026 ladder and access catalog, PDF page 44. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a model or configuration?
Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
Are the catalog specifications current?
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
How do I request a quote?
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
