Open an image to inspect its original detail.
| Model / reference | For Step Sizes | Adjustment Range | Overall Height Range | Stowed Height | Platform W x L | Overall Width | Overall Length |
|---|---|---|---|---|---|---|---|
| ALS5090-M | 9 | 50” - 90” | 92” - 132” | 94” | 24” x 48” | 48” | 147” |
| ALS80120-M | 12 | 80” - 120” | 122” - 162” | 122” | 24” x 48” | 48” | 178” |
| ALS5090-A | 9 | 50” - 90” | 92” - 132” | 94” | 24” x 48” | 48” | 147” |
| ALS80120-A | 12 | 80” - 120” | 122” - 162” | 122” | 24” x 48” | 48” | 178” |
| Documented model configurations | 4 |
|---|---|
| Platform W x L | 24” x 48” |
| Overall Width | 48” |
| Catalog feature / option | 500 lb. Rated Capacity |
| Catalog feature / option | Steps articulate as height adjusts |
| Catalog feature / option | Diamond plate platform performance |
Source: 2026 ladder and access catalog, PDF page 33. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

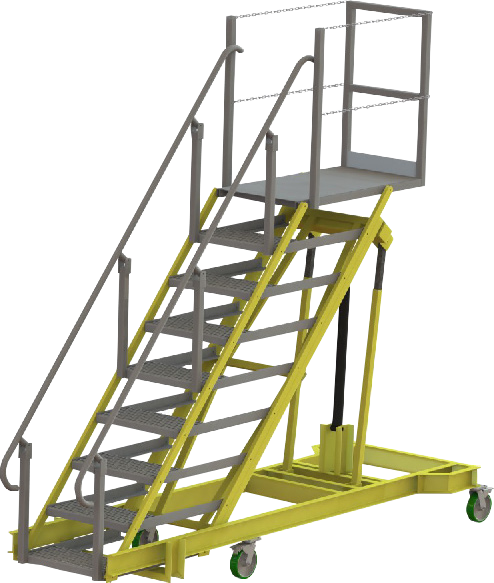

Adjustable-Height Mobile Access Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: 500 lb. Rated Capacity; Steps articulate as height adjusts; 50” - 90” and 80” - 120” range models; Powered and manual models; Diamond plate platform performance; Serrated 11-3/4” deep steps 42” guardrails; Removable chains on right & left guardrails.
Model and option notes: SHOP AIR HYDRAULIC PUMP.
Reference: 2026 ladder and access catalog, PDF page 33. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
