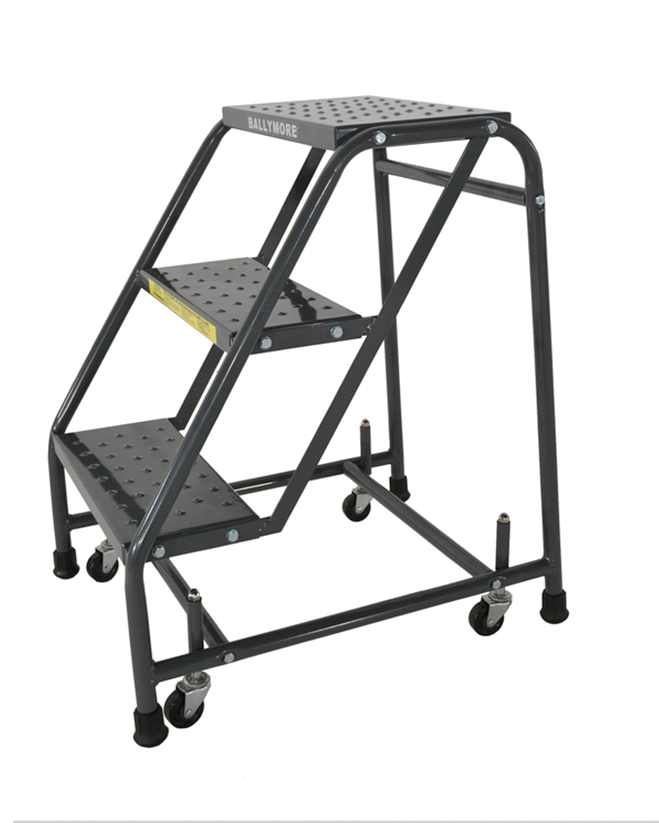

Ballymore manufacturer image listed for H426P. Configuration shown is representative; confirm the selected model, tread, finish and options with your quote.
| Model / reference | Catalog configuration | STEPS INCLUDING TOP STEP / NO HANDRAILS / 1 STEP / 2 STEP / 3 STEP / 4 STEP | HEIGHT INCHES / TOP STEP / NO HANDRAILS / 12 / 19 / 28.5 / 38 | HEIGHT INCHES / OVER ALL / NO HANDRAILS / 12 / 19 / 28.5 / 38 | 16” WIDE STEP / BASE W” x L” / NO HANDRAILS / 18 x 16 / 20 x 19 / 20 x 25 / 20 x 31 | 16” WIDE STEP / WGT Lbs. / NO HANDRAILS / 18 / 22 / 31 / 42 | 24” WIDE STEP / BASE W” x L” / NO HANDRAILS / 26 x 16 / 30 x 19 / 30 x 25 / 30 x 31 | 24” WIDE STEP / WGT Lbs. / NO HANDRAILS / 20 / 28 / 36 / 51 | STEPS INCLUDING TOP STEP |
|---|---|---|---|---|---|---|---|---|---|
| H218u | 16” WIDE STEP / / NO HANDRAILS / 118* / 218* / 318* / 418* | 2 STEP | 19 | 49 | 20 x 19 | 36 | 30 x 19 | 42 | — |
| H226u | 24” WIDE STEP / / NO HANDRAILS / 126* / 226* / 326* / 426* | 2 STEP | 19 | 49 | 20 x 19 | 36 | 30 x 19 | 42 | — |
| H318u | 16” WIDE STEP / / NO HANDRAILS / 118* / 218* / 318* / 418* | 3 STEP | 28.5 | 58.5 | 20 x 25 | 45 | 30 x 25 | 50 | — |
| H326u | 24” WIDE STEP / / NO HANDRAILS / 126* / 226* / 326* / 426* | 3 STEP | 28.5 | 58.5 | 20 x 25 | 45 | 30 x 25 | 50 | — |
| H418u | 16” WIDE STEP / / NO HANDRAILS / 118* / 218* / 318* / 418* | 4 STEP | 38 | 68 | 20 x 31 | 56 | 30 x 31 | 65 | — |
| H426u | 24” WIDE STEP / / NO HANDRAILS / 126* / 226* / 326* / 426* | 4 STEP | 38 | 68 | 20 x 31 | 56 | 30 x 31 | 65 | — |
| FSH418 | 16” WIDE STEP / / NO HANDRAILS / 118* / 218* / 318* / 418* | 4 STEP | 40 | 73 | 20 x 35 | 68 | 30 x 35 | 80 | 4 STEP |
| FSH426 | 24” WIDE STEP / / NO HANDRAILS / 126* / 226* / 326* / 426* | 4 STEP | 40 | 73 | 20 x 35 | 68 | 30 x 35 | 80 | 4 STEP |
| FSH518 | 16” WIDE STEP / / NO HANDRAILS / 118* / 218* / 318* / 418* | 4 STEP | 50 | 83 | 20 x 42 | 75 | 30 x 42 | 87 | 5 STEP |
| FSH526 | 24” WIDE STEP / / NO HANDRAILS / 126* / 226* / 326* / 426* | 4 STEP | 50 | 83 | 20 x 42 | 75 | 30 x 42 | 87 | 5 STEP |
| FSH618 | 16” WIDE STEP / / NO HANDRAILS / 118* / 218* / 318* / 418* | 4 STEP | 60 | 93 | 24 x 49 | 83 | 30 x 49 | 98 | 6 STEP |
| FSH626 | 24” WIDE STEP / / NO HANDRAILS / 126* / 226* / 326* / 426* | 4 STEP | 60 | 93 | 24 x 49 | 83 | 30 x 49 | 98 | 6 STEP |
| FSH718 | 16” WIDE STEP / / NO HANDRAILS / 118* / 218* / 318* / 418* | 4 STEP | 70 | 103 | 24 x 56 | 89 | 30 x 56 | 108 | 7 STEP |
| FSH726 | 24” WIDE STEP / / NO HANDRAILS / 126* / 226* / 326* / 426* | 4 STEP | 70 | 103 | 24 x 56 | 89 | 30 x 56 | 108 | 7 STEP |
| Documented model configurations | 14 |
|---|---|
| Catalog feature / option | 450 lb. capacity |
| Catalog feature / option | Working heights up to 12’ |
| Catalog feature / option | Spring loaded swivel casters retract under user’s weight |
| Catalog feature / option | Specify tread type when ordering |
Source: 2026 ladder and access catalog, PDF page 12. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Spring-Loaded Caster Rolling Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: 450 lb. capacity; Working heights up to 12’; Spring loaded swivel casters retract under user’s weight; 7” deep steps with 10” deep top step on 1 - 4 step models shown with (*) in the chart below; 14” deep top step on 4 - 7 step FSH models; Specify tread type when ordering; 1 - 4 step ladders (*) ship unassembled in a box, and are eligible for UPS shipping; 4 -7 step FSH models ship unassembled; Specify set-up (SU) if required***; Available in all welded construction; Gray powder coat finish.
Model and option notes: step on 1 - 4 step models shown with (*) in the chart below • 14” deep top step on 4 - 7 step; FSH models • Specify tread type when; ordering • 1 - 4 step ladders (*) ship; 1 STEP 12 12 118* 18 x 16 18 126* 26 x 16 20 2 STEP 19 19 218* 20 x 19 22 226* 30 x 19 28 3 STEP 28.5 28.5 318* 20 x 25 31 326* 30 x 25 36 4 STEP 38 38 418* 20 x 31 42 426* 30 x 31 51 WITH HANDRAILS; 2 STEP 19 49 *H218u 20 x 19 36 *H226u 30 x 19 42 3 STEP 28.5 58.5 *H318u 20 x 25 45 *H326u 30 x 25 50 4 STEP 38 68 *H418u 20 x 31 56 *H426u 30 x 31 65 4 STEP 40 73 FSH418 20 x 35 68 FSH426 30 x 35 80 5 STEP 50 83 FSH518 20 x 42 75 FSH526 30 x 42 87 6 STEP 60 93 FSH618 24 x 49 83 FSH626 30 x 49 98 7 STEP 70 103 FSH718 24 x 56 89 FSH726 30 x 56 108; *Eligible for UPS *Handrails may ship in separate box.
Reference: 2026 ladder and access catalog, PDF page 12. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
