| MODEL NUMBER | UNIFORM CAPACITY | OVERALL I-BEAM LENGTH / HEIGHT | I-BEAM FLANGE WIDTH | UNDER I-BEAM USABLE HEIGHT | BASE WIDTH | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| AHS-2-10-12 | 2,000 lb. | 10' / 6" | 4" | 7'6" to 12' | 76 1/8" | 828 |
| AHS-2-10-14 | 2,000 lb. | 10' / 6" | 4" | 8'6" to 14' | 88 1/2" | 898 |
| AHS-2-10-16 | 2,000 lb. | 10' / 6" | 4" | 10'6" to 16' | 88 1/2" | 930 |
| AHS-2-15-7 | 2,000 lb. | 15' / 6" | 4" | 5' to 7' | 46 3/8" | 716 |
| AHS-2-15-9 | 2,000 lb. | 15' / 6" | 4" | 6' to 9' | 58 3/8" | 774 |
| AHS-2-15-10 | 2,000 lb. | 15' / 6" | 4" | 6'6" to 10' | 64 1/4" | 778 |
| AHS-2-15-12 | 2,000 lb. | 15' / 6" | 4" | 7'6" to 12' | 76 1/8" | 875 |
| AHS-2-15-14 | 2,000 lb. | 15' / 6" | 4" | 8'6" to 14' | 88 1/2" | 954 |
| AHS-2-15-16 | 2,000 lb. | 15' / 6" | 4" | 10'6" to 16' | 88 1/2" | 1020 |
| AHS-2-20-12 | 2,000 lb. | 20' / 10 1/8" | 4" | 7'6" to 12' | 76 1/8" | 1074 |
| AHS-2-20-14 | 2,000 lb. | 20' / 10 1/8" | 4" | 8'6" to 14' | 88 1/2" | 1163 |
| AHS-2-20-16 | 2,000 lb. | 20' / 10 1/8" | 4" | 10'6" to 16' | 88 1/2" | 1194 |
| AHS-4-10-12 | 4,000 lb. | 10' / 8 1/8" | 4" | 7'6" to 12' | 76 1/8" | 860 |
| AHS-4-10-14 | 4,000 lb. | 10' / 8 1/8" | 4" | 8'6" to 14' | 88 1/2" | 925 |
| AHS-4-10-16 | 4,000 lb. | 10' / 8 1/8" | 4" | 10'6" to 16' | 88 1/2" | 962 |
| AHS-4-15-7 | 4,000 lb. | 15' / 8 1/8" | 4" | 5' to 7' | 46 3/8" | 739 |
| AHS-4-15-9 | 4,000 lb. | 15' / 8 1/8" | 4" | 6' to 9' | 58 3/8" | 816 |
| AHS-4-15-10 | 4,000 lb. | 15' / 8 1/8" | 4" | 6'6" to 10' | 64 1/4" | 846 |
| AHS-4-15-12 | 4,000 lb. | 15' / 8 1/8" | 4" | 7'6" to 12' | 76 1/8" | 930 |
| AHS-4-15-14 | 4,000 lb. | 15' / 8 1/8" | 4" | 8'6" to 14' | 88 1/2" | 1055 |
| AHS-4-15-16 | 4,000 lb. | 15' / 8 1/8" | 4" | 10'6" to 16' | 88 1/2" | 1068 |
| AHS-4-20-12 | 4,000 lb. | 20' / 12 3/16" | 4" | 7'6" to 12' | 76 1/8" | 1076 |
| AHS-4-20-14 | 4,000 lb. | 20' / 12 3/16" | 4" | 8'6" to 14' | 88 1/2" | 1155 |
| AHS-4-20-16 | 4,000 lb. | 20' / 12 3/16" | 4" | 10'6" to 16' | 88 1/2" | 1204 |
| AHS-6-10-12 | 6,000 lb. | 10' / 8 1/8" | 4" | 7'7" to 12'1" | 77 3/8" | 927 |
| AHS-6-10-14 | 6,000 lb. | 10' / 8 1/8" | 4" | 8'7" to 14'1" | 89 3/4" | 1045 |
| AHS-6-10-16 | 6,000 lb. | 10' / 8 1/8" | 4" | 10'7" to 16'1" | 89 3/4" | 1022 |
| AHS-6-15-7 | 6,000 lb. | 15' / 10 1/8" | 4" | 5'1" to 7'1" | 47 5/8" | 810 |
| AHS-6-15-9 | 6,000 lb. | 15' / 10 1/8" | 4" | 6'1" to 9'1" | 59 5/8" | 894 |
| AHS-6-15-10 | 6,000 lb. | 15' / 10 1/8" | 4" | 6'7" to 10'1" | 65 1/2" | 932 |
| AHS-6-15-12 | 6,000 lb. | 15' / 10 1/8" | 4" | 7'7" to 12'1" | 77 3/8" | 1017 |
| AHS-6-15-14 | 6,000 lb. | 15' / 10 1/8" | 4" | 8'7" to 14'1" | 89 3/4" | 1108 |
| AHS-6-15-16 | 6,000 lb. | 15' / 10 1/8" | 4" | 10'7" to 16'1" | 89 3/4" | 1168 |
| AHS-6-20-12 | 6,000 lb. | 20' / 12 5/16" | 6½" | 7'7" to 12'1" | 77 3/8" | 1413 |
| AHS-6-20-14 | 6,000 lb. | 20' / 12 5/16" | 6½" | 8'7" to 14'1" | 89 3/4" | 1513 |
| AHS-6-20-16 | 6,000 lb. | 20' / 12 5/16" | 6½" | 10'7" to 16'1" | 89 3/4" | 1532 |
| AHS-8-10-12 | 8,000 lb. | 10' / 8 1/8" | 4" | 7'7" to 12'1" | 76 1/2" | 933 |
| AHS-8-10-14 | 8,000 lb. | 10' / 8 1/8" | 4" | 8'6" to 14' | 88 1/4" | 1050 |
| AHS-8-10-16 | 8,000 lb. | 10' / 8 1/8" | 4" | 10'6" to 16' | 88 1/4" | 1121 |
| AHS-8-15-7 | 8,000 lb. | 15' / 10 1/8" | 4" | 5' to 7' | 45 3/4" | 804 |
| AHS-8-15-9 | 8,000 lb. | 15' / 10 1/8" | 4" | 6' to 9' | 57 3/4" | 905 |
| AHS-8-15-10 | 8,000 lb. | 15' / 10 1/8" | 4" | 6'6" to 10' | 63 3/4" | 960 |
| AHS-8-15-12 | 8,000 lb. | 15' / 10 1/8" | 4" | 7'7" to 12'1" | 76 1/2" | 1044 |
| AHS-8-15-14 | 8,000 lb. | 15' / 10 1/8" | 4" | 8'6" to 14' | 88 1/4" | 1132 |
| AHS-8-15-16 | 8,000 lb. | 15' / 10 1/8" | 4" | 10'6" to 16' | 88 1/4" | 1194 |
| AHS-8-20-12 | 8,000 lb. | 20' / 12 5/16" | 6½" | 7'7" to 12'1" | 76 1/2" | 1406 |
| AHS-8-20-14 | 8,000 lb. | 20' / 12 5/16" | 6½" | 8'6" to 14' | 88 5/16" | 1514 |
| AHS-8-20-16 | 8,000 lb. | 20' / 12 5/16" | 6½" | 10'6" to 16' | 88 1/4" | 1582 |
| AHS-10-15-10 | 10,000 lb. | 15' / 12 1/8" | 4" | 6'6" to 10' | 64 1/2" | 1352 |
| AHS-2/4-TLC | TOTAL LOCKING CASTERS | (2,000 & 4,000 LB. CAPACITY CRANES ONLY) (SET OF 4) | ||||

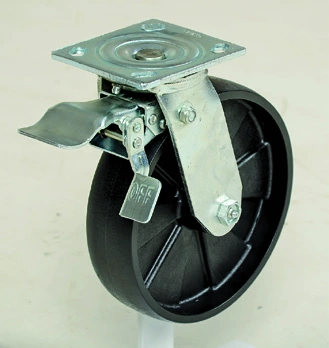

| AHS-6/8-TLC | TOTAL LOCKING CASTERS | (6,000 & 8,000 LB. CAPACITY CRANES ONLY) (SET OF 4) | ||||

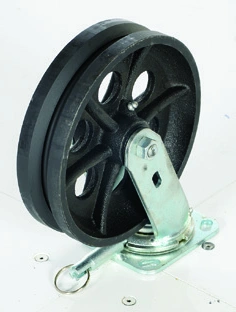

| AHS-2/4-V | 8" x 2" V-GROOVE CASTERS | FOR 2,000 & 4,000 LB. UNITS | (SET OF 4) | |||
| AHS-6/8-V | 8" x 3" V-GROOVE CASTERS | FOR 6,000 & 8,000 LB. UNITS | (SET OF 4) | |||
| AHS-KIT | (2) COME-A-LONG (2) CABLES FOR HEIGHT ADJUSTMENT | (NOT FOR LIFTING) | ||||
| AHS-STLO | STATIONARY LEG OPTION, set of (4) four | (factory installed) | ||||
| AHS-STLO-RF | STATIONARY LEG OPTION, set of (4) four | (field installed) |
| Uniform Capacity | 2,000 lb.; 4,000 lb.; 6,000 lb.; 8,000 lb.; 10,000 lb. |
|---|---|
| I-Beam Flange Width | 4"; 6½"; FOR 2,000 & 4,000 LB. UNITS; FOR 6,000 & 8,000 LB. UNITS; (2) COME-A-LONG (2) CABLES FOR HEIGHT ADJUSTMENT |
Source: 2018 catalog, page 202. Confirm current specifications and options for the selected model.

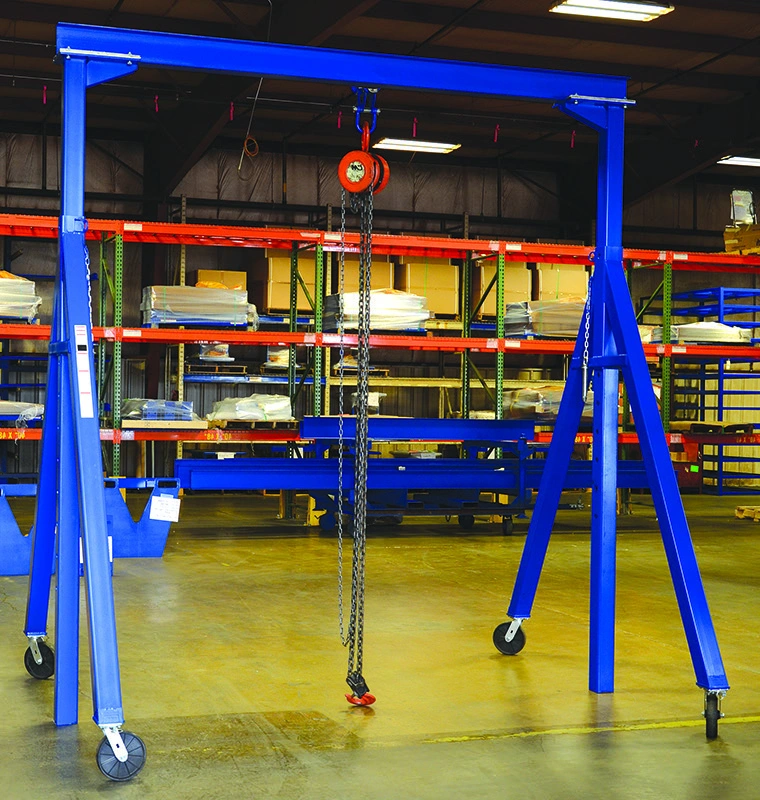

PRODUCT INFORMATION
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The catalog lists AHS-2-10-12 through AHS-STLO-RF within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Uniform Capacity: 2,000 lb.; 4,000 lb.; 6,000 lb.; 8,000 lb.; 10,000 lb.; I-Beam Flange Width: 4"; 6½"; FOR 2,000 & 4,000 LB. UNITS; FOR 6,000 & 8,000 LB. UNITS; (2) COME-A-LONG (2) CABLES FOR HEIGHT ADJUSTMENT. These values cover multiple models; consult the individual row for the model being quoted.
The catalog states that these crane units must not be moved while loaded. Obtain and follow the current model instructions before use.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 202. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 56 model references for this family. The first listed model is AHS-2-10-12. Compare the model rows and confirm the required configuration when quoting.
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
