SKU LM-HP4-S
Hook Plates
Hook Plates: 3 catalog model references. Hook Type: SWIVEL; RIGID; Height W/O Hook: 6".
- Hook Type
- SWIVEL; RIGID
- Height W/O Hook
- 6"
Open an image to inspect its original detail.
Specifications & options
| MODEL NUMBER | DESCRIPTION HOOK TYPE | USABLE FORK POCKET SIZE (W x H) | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|

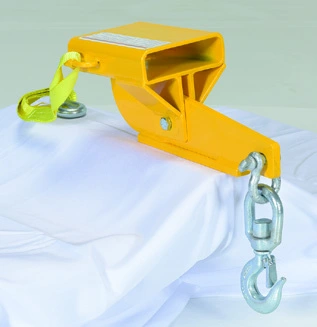

| S-FORK-4/6-RL | SINGLE FORK/RIGID | 6" x 2¼" | 4,000 lb. | 15 |
| S-FORK-4/6-SL | SINGLE FORK/SWIVEL | 6" x 2¼" | 4,000 lb. | 15 |
| D-FORK-4-RL | DOUBLE FORK/RIGID | 7¼" x 2½" | 4,000 lb. | 31 |
| D-FORK-4-SL | DOUBLE FORK/SWIVEL | 7¼" x 2½" | 4,000 lb. | 31 |
| D-FORK-10-SL | DOUBLE FORK/SWIVEL | 6 5/16" x 3½" | 10,000 lb. | 53 |

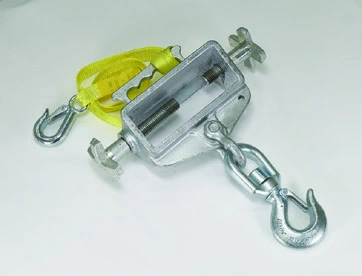

| S-FORK-4-AT | SWIVEL, SINGLE AUTO-TENSION | 5½" x 1 1/2" | 4,000 lb. | 24 |
| Usable Fork Pocket Size (W X H) | 6" x 2¼"; 7¼" x 2½"; 6 5/16" x 3½"; 5½" x 1 1/2" |
|---|---|
| Uniform Capacity | 4,000 lb.; 10,000 lb. |
Source: 2018 catalog, page 190. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
The catalog lists S-FORK-4/6-RL through S-FORK-4-AT within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Usable Fork Pocket Size (W X H): 6" x 2¼"; 7¼" x 2½"; 6 5/16" x 3½"; 5½" x 1 1/2"; Uniform Capacity: 4,000 lb.; 10,000 lb.. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 190. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for hoisting hooks?
The catalog records 6 model references for this family. The first listed model is S-FORK-4/6-RL. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right hoisting hooks configuration?
Start with the load, lifting arrangement and clearance available for the task. Compare each model’s listed operating dimensions and capacity rather than treating the family as one interchangeable configuration.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
