| Model / reference | # of Steps | Platform Height | Overall Height | Step Width | Platform W x L | Base W x D | Weight | DESCRIPTION | KIT MATCHING |
|---|---|---|---|---|---|---|---|---|---|
| UKDSR106246 | 6 | 60" | 102 | 24' | 24" x 10" | 35" x 50" | 201 | — | — |
| UKDSR107246 | 7 | 70" | 112 | 24' | 24" x 10" | 35" x 57" | 245 | — | — |
| UKDSR108246 | 8 | 80" | 122 | 24' | 24" x 10" | 35" x64" | 281 | — | — |
| UKDRS109246 | 9 | 90" | 132 | 24' | 24" x 10" | 35" x 69" | 306 | — | — |
| UKDRS110246 | 10 | 100" | 142 | 24' | 24" x 10" | 35" x 76" | 320 | — | — |
| UKDRS111246 | 11 | 110" | 152 | 24' | 24" x 10" | 35" x 83" | 352 | — | — |
| UKDRS112246 | 12 | 120" | 162 | 24' | 24" x 10" | 35" x 90" | 377 | — | — |
| UKDSR113246 | 13 | 130" | 172 | 24' | 24" x 10" | 40" x 96" | 405 | — | — |
| UKDSR114246 | 14 | 140" | 182 | 24' | 24" x 10" | 40" x 103" | 425 | — | — |
| UKDSR115246 | 15 | 150" | 192 | 24' | 24" x 10" | 40" x 110" | 521 | — | — |
| UP20DTK | — | — | — | — | — | — | — | Adds 10” additional length to top platform (Standard: 20” or Safety Angle: 27” Total) | — |
| UP30DTK | — | — | — | — | — | — | — | Adds 20” additional length to top platform (Standard: 30” or Safety Angle: 37” Total) | — |
| U4AD0612 | — | — | — | — | — | — | — | Enables the ladder to turn within its own radius | 6-12 Step Models |
| U4AD1315 | — | — | — | — | — | — | — | Enables the ladder to turn within its own radius | 13-15 Step Models |
| UKDEC106246 | 6 | 60" | 102 | 24' | 24" x 17" | 35" x 66" | 201 | — | — |
| UKDEC107246 | 7 | 70" | 112 | 24' | 24" x 17" | 35" x 74" | 245 | — | — |
| UKDEC108246 | 8 | 80" | 122 | 24' | 24" x 17" | 35" x 82" | 281 | — | — |
| UKDEC109246 | 9 | 90" | 132 | 24' | 24" x 17" | 35" x 91" | 306 | — | — |
| UKDEC110246 | 10 | 100" | 142 | 24' | 24" x 17" | 35" x 99" | 320 | — | — |
| UKDEC111246 | 11 | 110" | 152 | 24' | 24" x 17" | 35" x 107" | 352 | — | — |
| UKDEC112246 | 12 | 120" | 162 | 24' | 24" x 147" | 35" x 116" | 377 | — | — |
| UKDEC113246 | 13 | 130" | 172 | 24' | 24" x 17" | 40" x 124" | 405 | — | — |
| UKDEC114246 | 14 | 140" | 182 | 24' | 24" x 17" | 40" x 132" | 425 | — | — |
| UKDEC115246 | 15 | 150" | 192 | 24' | 24" x 17" | 40" x 141" | 521 | — | — |
| USPK2 | — | — | — | — | — | — | — | 2 - 50 lb. Capacity Shelves | 6-7 Step Models |
| USPK3 | — | — | — | — | — | — | — | 3 - 50 lb. Capacity Shelves | 8-15 Step Models |
| Documented model configurations | 26 |
|---|---|
| Catalog feature / option | 450 lb. Rated Capacity |
| Catalog feature / option | 7” deep treads (56° models) |
| Catalog feature / option | 10” deep platform (56° models) |
| Catalog feature / option | 17” deep platform (50° models) |
| Catalog feature / option | 8.5” deep treads (56° models) |
Source: 2026 ladder and access catalog, PDF page 43. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION

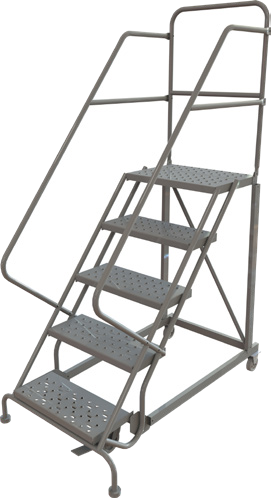

Configurable Steel Rolling Access Ladders is presented here with the configurations documented in the 2026 ladder and access catalog. Use the comparison table to select the required capacity, dimensions and operating arrangement.
Catalog features and options: 450 lb. Rated Capacity; 24” wide steps; 7” deep treads (56° models); 10” deep platform (56° models); 17” deep platform (50° models); 8.5” deep treads (56° models); Step-lock standard on all models; Powder-coated gray finish; Ships unassembled.
Reference: 2026 ladder and access catalog, PDF page 43. The tables reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Compare the documented model dimensions and capacities with your application. Include the selected reference, quantity, required load, power supply and site constraints with your request.
These specifications come from the 2026 ladder and access catalog. Ask for current model-specific drawings, installation requirements and any required compliance documents before ordering.
Choose a listed configuration or request selection help. Include quantity, application, delivery destination, unloading restrictions and your needed-by date.
