Equipment details

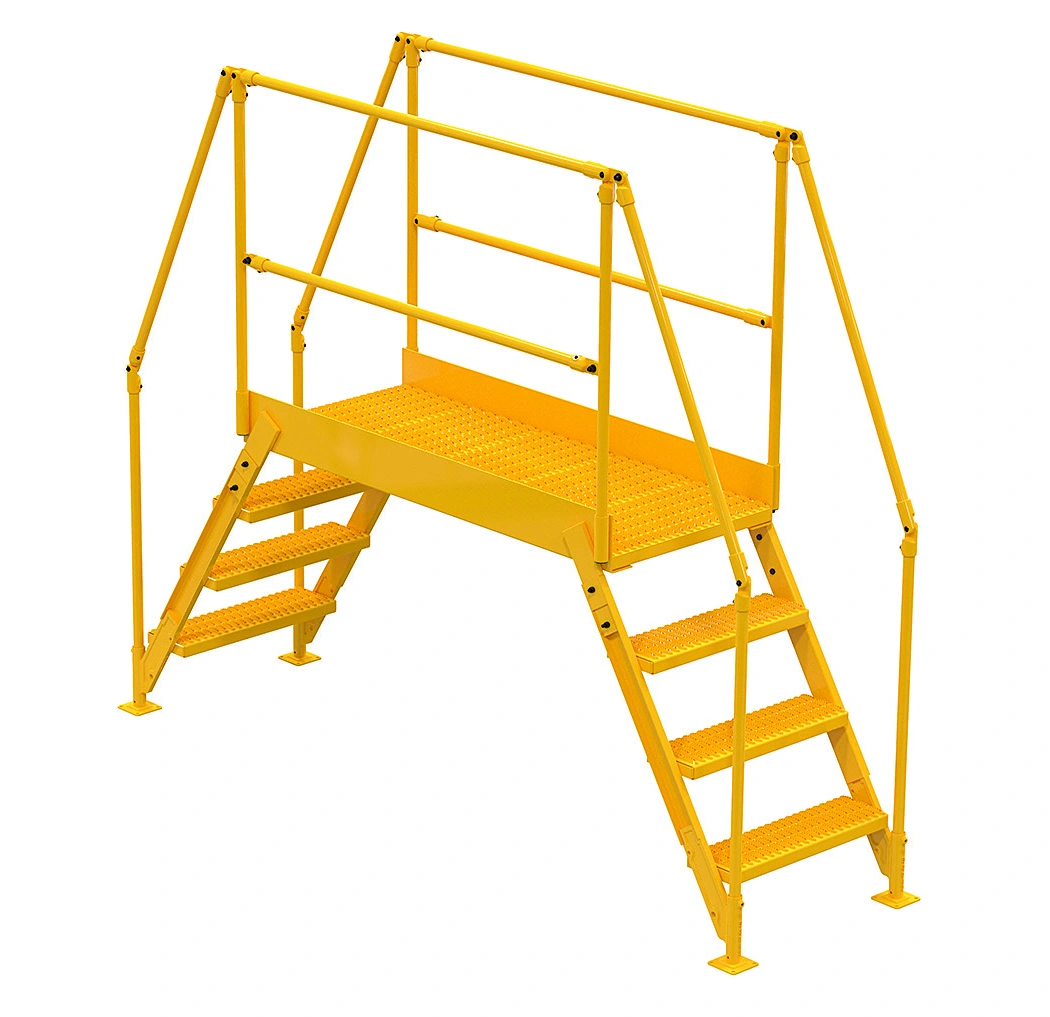

Heavy-Duty Industrial Crossover Ladders
Heavy-Duty Industrial Crossover Ladders. Documented model configurations: 18.
- Documented model configurations
- 18
Open an image to inspect its original detail.
Specifications & options
| MODEL NUMBER | NUMBER OF STEPS | A | B | C | D | E | F | WEIGHT (POUND) |
|---|---|---|---|---|---|---|---|---|
| COL-3-26-14 | 3 | 28¼" | 14 1/8" | 54½" | 72 7/8" | 30" | 24" | 264 |
| COL-3-26-23 | 3 | 28¼" | 26 1/8" | 66½" | 72 7/8" | 30" | 36" | 282 |
| COL-3-26-33 | 3 | 28¼" | 38 1/8" | 78½" | 72 7/8" | 30" | 48" | 315 |
| COL-3-26-44 | 3 | 28¼" | 50 1/8" | 90½" | 73" | 30" | 60" | 349 |
| COL-4-36-14 | 4 | 38¼" | 14 1/8" | 67" | 82 7/8" | 40" | 24" | 326 |
| COL-4-36-23 | 4 | 38¼" | 26 1/8" | 79" | 82 7/8" | 40" | 36" | 348 |
| COL-4-36-33 | 4 | 38¼" | 38 1/8" | 91" | 82 7/8" | 40" | 48" | 380 |
| COL-4-36-44 | 4 | 38¼" | 50 1/8" | 103" | 83" | 40" | 60" | 385 |
| COL-5-46-14 | 5 | 48¼" | 14 1/8" | 79½" | 92 7/8" | 50" | 24" | 340 |
| COL-5-46-23 | 5 | 48¼" | 26 1/8" | 91½" | 92 7/8" | 50" | 36" | 380 |
| COL-5-46-33 | 5 | 48¼" | 38 1/8" | 103½" | 92 7/8" | 50" | 48" | 420 |
| COL-5-46-44 | 5 | 48¼" | 50 1/8" | 115½" | 93" | 50" | 60" | 440 |
| COL-6-56-14 | 6 | 58¼" | 14 1/8" | 92" | 102 7/8" | 60" | 24" | 348 |
| COL-6-56-23 | 6 | 58¼" | 26 1/8" | 104" | 102 7/8" | 60" | 36" | 398 |
| COL-6-56-33 | 6 | 58¼" | 38 1/8" | 116" | 102 7/8" | 60" | 48" | 401 |
| COL-6-56-44 | 6 | 58¼" | 50 1/8" | 128" | 103" | 60" | 60" | 460 |
| Number Of Steps | 3; 4; 5; 6 |
|---|---|
| A | 28¼"; 38¼"; 48¼"; 58¼" |
| B | 14 1/8"; 26 1/8"; 38 1/8"; 50 1/8" |
| D | 72 7/8"; 73"; 82 7/8"; 83"; 92 7/8"; 93"; 102 7/8"; 103" |
| E | 30"; 40"; 50"; 60" |
| F | 24"; 36"; 48"; 60" |
Source: 2018 catalog, page 237. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists COL-3-26-14 through COL-6-56-44 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Number Of Steps: 3; 4; 5; 6; A: 28¼"; 38¼"; 48¼"; 58¼". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 237. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for cross-over ladders?
The catalog records 16 model references for this family. The first listed model is COL-3-26-14. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right cross-over ladders configuration?
Choose an access configuration around the required standing height, approach and available floor space. Check the model’s dimensions against the work area before selecting it.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
