Equipment details
Heavy-Duty Industrial Crossover Ladders
Heavy-Duty Industrial Crossover Ladders. Documented model configurations: 18.
- Documented model configurations
- 18

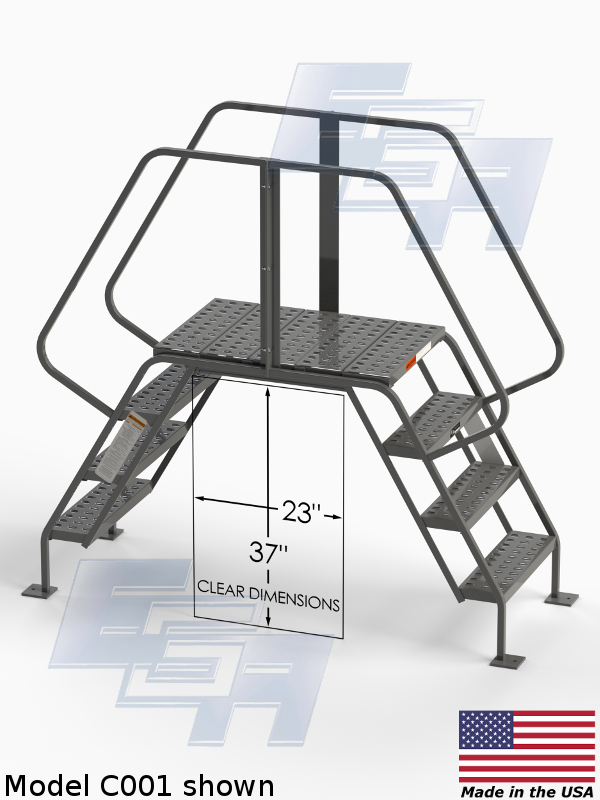

EGA manufacturer photograph from Crossovers ∠60º (C – SERIES). Confirm the model and selected configuration with your quote.
Specifications & options
| Model / reference | Configuration | Clearance height | Clearance width | Number of steps | Step width | Width × length × height | Weight (lb) | Listed capacity |
|---|---|---|---|---|---|---|---|---|
| C001 | Crossovers - EZY Tread | 37 | 23 | 4 | 24" | 29x76x70 | 84 | 300 lbs |
| C002 | Crossovers - EZY Tread | 37 | 30 | 4 | 24" | 29x84x70 | 89 | 300 lbs |
| C003 | Crossovers - EZY Tread | 37 | 37 | 4 | 24" | 29x91x70 | 96 | 300 lbs |
| C004 | Crossovers - EZY Tread | 47 | 23 | 5 | 24" | 29x88x80 | 145 | 300 lbs |
| C005 | Crossovers - EZY Tread | 47 | 30 | 5 | 24" | 29x95x80 | 151 | 300 lbs |
| C006 | Crossovers - EZY Tread | 47 | 37 | 5 | 24" | 29x102x80 | 160 | 300 lbs |
| C007 | Crossovers - EZY Tread | 57 | 23 | 6 | 24" | 29x100x90 | 180 | 300 lbs |
| C008 | Crossovers - EZY Tread | 57 | 30 | 6 | 24" | 29x107x90 | 186 | 300 lbs |
| C009 | Crossovers - EZY Tread | 57 | 37 | 6 | 24" | 29x114x90 | 199 | 300 lbs |
| Model / reference | Configuration | Clearance height | Clearance width | Number of steps | Step width | Width × length × height | Weight (lb) | Listed capacity |
|---|---|---|---|---|---|---|---|---|
| C010 | Crossovers - Grip Strut | 37 | 23 | 4 | 24" | 29x76x70 | 84 | 300 lbs |
| C011 | Crossovers - Grip Strut | 37 | 30 | 4 | 24" | 29x84x70 | 89 | 300 lbs |
| C012 | Crossovers - Grip Strut | 37 | 37 | 4 | 24" | 29x91x70 | 96 | 300 lbs |
| C013 | Crossovers - Grip Strut | 47 | 23 | 5 | 24" | 29x88x80 | 145 | 300 lbs |
| C014 | Crossovers - Grip Strut | 47 | 30 | 5 | 24" | 29x95x80 | 151 | 300 lbs |
| C015 | Crossovers - Grip Strut | 47 | 37 | 5 | 24" | 29x102x80 | 160 | 300 lbs |
| C016 | Crossovers - Grip Strut | 57 | 23 | 6 | 24" | 29x100x90 | 180 | 300 lbs |
| C017 | Crossovers - Grip Strut | 57 | 30 | 6 | 24" | 29x107x90 | 186 | 300 lbs |
| C018 | Crossovers - Grip Strut | 57 | 37 | 6 | 24" | 29x114x90 | 199 | 300 lbs |
| Published model references | 18 |
|---|---|
| Step width | 24" |
| Listed capacity | 300 lbs |
Source: EGA Products product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Equipment overview
Create a crossing route over an obstruction such as piping or a conveyor. The C series brings stairs and a top crossing platform together, with model dimensions that can be checked against the obstacle.
The two halves bolt together. EGA lists 21-, 28- and 35-inch top-platform depth options, floor-mounting provisions and two tread choices. Confirm the usable clearance beneath the crossing separately from the overall platform height.
The manufacturer lists 18 model references on this page. Keep the selected reference with its configuration and specifications; a listed height or capacity for one row does not apply automatically to every option.
For a industrial crossover stairs quote, include obstruction envelope, required underside clearance, approach space and floor anchoring. Factory Equipment will review the request and respond as quickly as possible.
Documentation & drawings
Manufacturer reference: EGA Crossovers ∠60º (C – SERIES) reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
How do I choose a model from industrial crossover stairs?
Start with obstruction envelope, required underside clearance, approach space and floor anchoring. Compare the model rows and request the exact reference so the required configuration can be confirmed.
Does the photograph show every option for industrial crossover stairs?
No. Supplier photos are configuration examples. The model reference, comparison row and current drawing determine the arrangement being requested.
How do I request industrial crossover stairs?
Choose a reference in the model selector and use the quote link. Include quantity, application, delivery location and required timing. Our team will review the details and respond as quickly as possible.
