EGA manufacturer photograph from Dual Access Mobile Platform Rolling Ladder (D – SERIES). Confirm the model and selected configuration with your quote.
| Model / reference | Configuration | Step width | Number of steps | Platform width × depth × height | Weight (lb) | Overall width × depth × height | Listed capacity |
|---|---|---|---|---|---|---|---|
| CA-D007 | Dual Access Mobile Platforms - Grip Strut | 24" | 5 | 24x50x50 | 252 | 27x98x92 | 800 lbs |
| D001 | Dual Access Mobile Platforms - Grip Strut | 24" | 3 | 24x50x30 | 198 | 27x75x60 | 800 lbs |
| D004 | Dual Access Mobile Platforms - Grip Strut | 24" | 4 | 24x50x40 | 225 | 27x86x70 | 800 lbs |
| Published model references | 3 |
|---|---|
| Step width | 24" |
| Listed capacity | 800 lbs |
Source: EGA Products product information, reviewed 2026-10-08. Confirm the current selected configuration with your quote.
PRODUCT INFORMATION
Approach the working platform from either end when the work area needs two access routes. The D series is a mobile platform family with several documented standing heights.

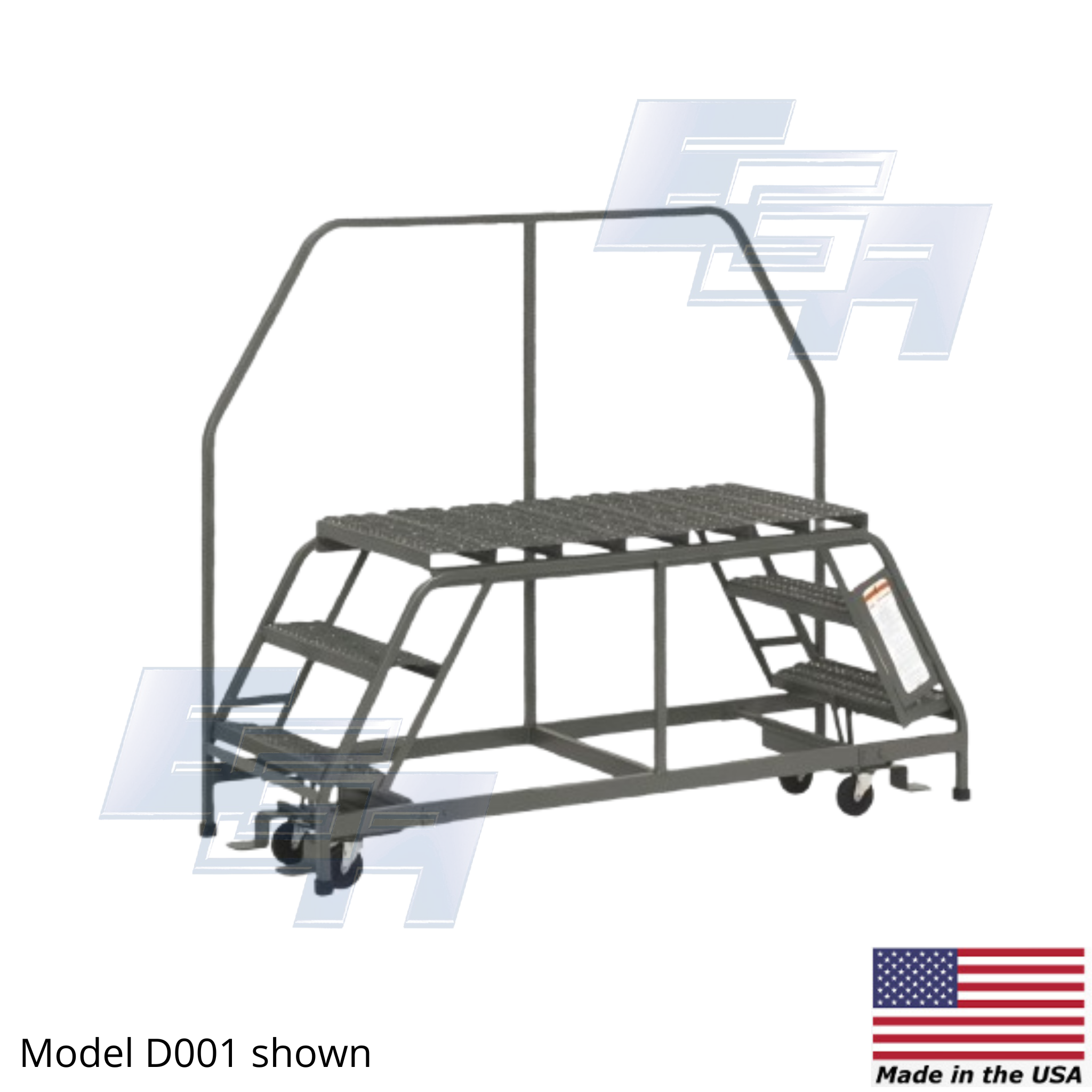

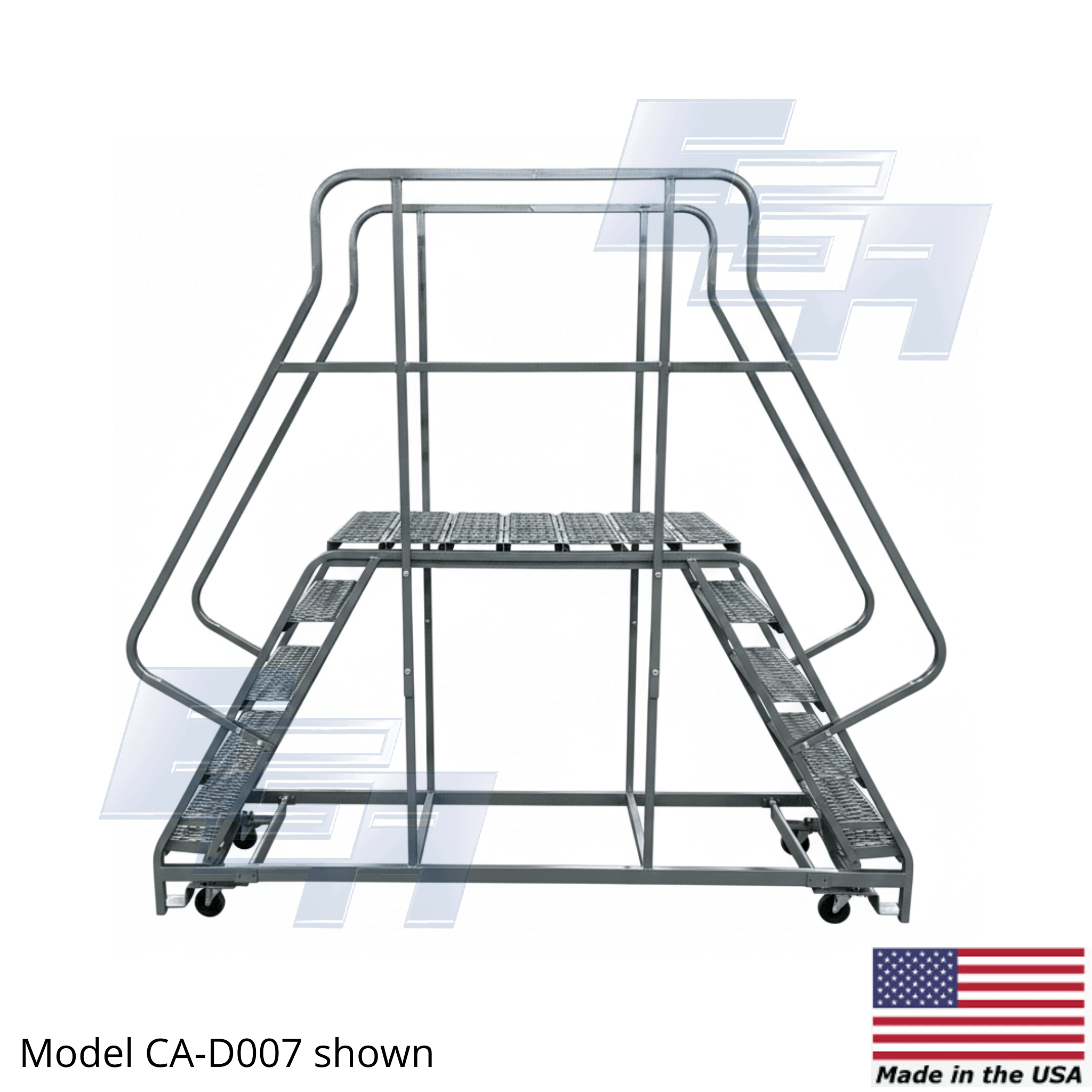

The listed D001 and D004 examples have a handrail on one side; the CA-D007 image shows a different rail arrangement. EGA documents 4-inch casters and an EZY-Lock mechanism. Match the exact model's rail layout and dimensions with the intended task.
The manufacturer lists 3 model references on this page. Keep the selected reference with its configuration and specifications; a listed height or capacity for one row does not apply automatically to every option.
For a dual-access mobile work platforms quote, include platform height, access direction, rail arrangement, work-area clearance and load. Factory Equipment will review the request and respond as quickly as possible.
Manufacturer reference: EGA Dual Access Mobile Platform Rolling Ladder (D – SERIES) reference ↗. Reviewed 2026-10-08.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Start with platform height, access direction, rail arrangement, work-area clearance and load. Compare the model rows and request the exact reference so the required configuration can be confirmed.
No. Supplier photos are configuration examples. The model reference, comparison row and current drawing determine the arrangement being requested.
Choose a reference in the model selector and use the quote link. Include quantity, application, delivery location and required timing. Our team will review the details and respond as quickly as possible.
