SKU RMH-C-5020-3
Reel Mover Handle
Reel Mover Handle: 1 catalog model references. Max Reel Height: 54"; Max Reel Length: 20 11/16".
- Max Reel Height
- 54"
- Max Reel Length
- 20 11/16"
Open an image to inspect its original detail.
Specifications & options
| MODEL NUMBER | DESCRIPTION | CORD LENGTH | WIRE GAUGE | WEIGHT (POUND) |
|---|---|---|---|---|
| ECR-45-S | SINGLE RECEPTACLE | 45 FEET | 12 | 24 |

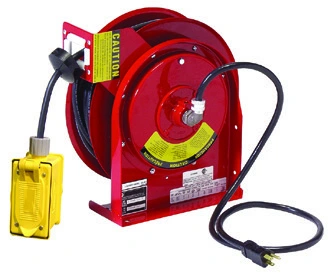

| ECR-45-D | DOUBLE RECEPTACLE | 45 FEET | 12 | 31 |

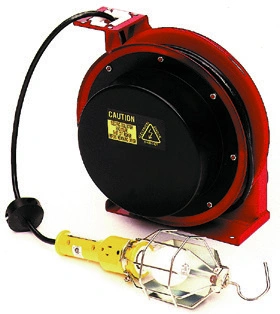

| ECR-50 | LAMP WITH RECEPTACLE | 50 FEET | 16 | 25 |
| Cord Length | 45 FEET; 50 FEET |
|---|---|
| Wire Gauge | 12; 16 |
Source: 2018 catalog, page 72. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The catalog lists ECR-45-S through ECR-50 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Cord Length: 45 FEET; 50 FEET; Wire Gauge: 12; 16. These values cover multiple models; consult the individual row for the model being quoted.
Power details mentioned in the catalog entry include 115V, 60 Hz. Confirm which apply to the selected model or optional power package.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 72. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for electric cord reels?
The catalog records 3 model references for this family. The first listed model is ECR-45-S. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right electric cord reels configuration?
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
