| MODEL NUMBER | UNDER I-BEAM FLOOR | USABLE I-BEAM LENGTH | I-BEAM FLANGE WIDTH x HEIGHT | OVERALL HEIGHT | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|---|
| JIB-FM-3 | 99¼" | 69¾" | 2 11/16" x 4" | 103¼" | 300 lb. | 428 |
| JIB-FM-6 | 99¼" | 69¾" | 4" x 6" | 105¼" | 600 lb. | 458 |
| JIB-FM-10 | 99½" | 67¾" | 4" x 6" | 105½" | 1,000 lb. | 610 |
| JIB-FM-20 | 99½" | 67¾" | 4" x 10 1/8" | 109 5/8" | 2,000 lb. | 651 |
| JIB-FM-40 | 99¼" | 66 1/8" | 6½" x 12¼" | 111½" | 4,000 lb. | 783 |
| Under I-Beam Floor | 99¼"; 99½" |
|---|---|
| Usable I-Beam Length | 69¾"; 67¾"; 66 1/8" |
| I-Beam Flange Width X Height | 2 11/16" x 4"; 4" x 6"; 4" x 10 1/8"; 6½" x 12¼" |
| Overall Height | 103¼"; 105¼"; 105½"; 109 5/8"; 111½" |
| Uniform Capacity | 300 lb.; 600 lb.; 1,000 lb.; 2,000 lb.; 4,000 lb. |
Source: 2018 catalog, page 207. Confirm current specifications and options for the selected model.

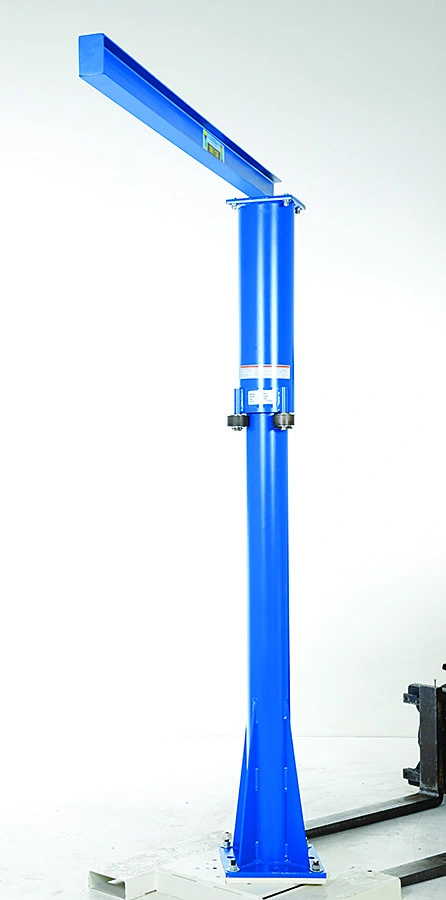

PRODUCT INFORMATION
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The catalog lists JIB-FM-3 through JIB-FM-40 within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Under I-Beam Floor: 99¼"; 99½"; Usable I-Beam Length: 69¾"; 67¾"; 66 1/8". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Reference: 2018 product catalog, page 207. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗The catalog records 5 model references for this family. The first listed model is JIB-FM-3. Compare the model rows and confirm the required configuration when quoting.
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
