SKU STPC-CD

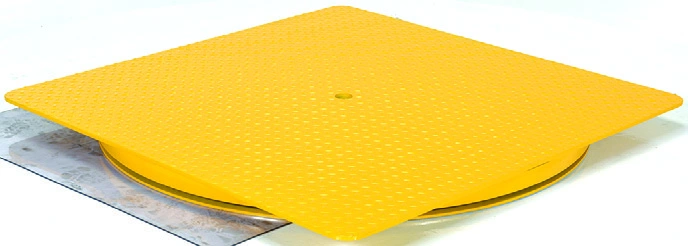

Stand Alone Powered Carousels
Stand Alone Powered Carousels: 2 catalog model references. R.P.M.: 3-12; 8; Height: 24"; 13½".
- R.P.M.
- 3-12; 8
- Height
- 24"; 13½"
Open an image to inspect its original detail.
Specifications & options
| MODEL NUMBER | SIZE (W x L) | HEIGHT | PLATE THICKNESS | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|
| CA-KP-3636-4 | 36" x 36" | 2 11/16" | ¼" | 4,000 lb. | 269 |
| CA-KP-3636-6 | 36" x 36" | 2 13/16" | 3/ " 8 | 6,000 lb. | 306 |
| CA-KP-4848-4 | 48" x 48" | 2 11/16" | ¼" | 4,000 lb. | 422 |
| CA-KP-4848-6 | 48" x 48" | 2 13/16" | 3/ " 8 | 6,000 lb. | 506 |
| CA-KP-6060-4 | 60" x 60" | 2 11/16" | ¼" | 4,000 lb. | 641 |
| CA-KP-6060-6 | 60" x 60" | 2 13/16" | 3/8" | 6,000 lb. | 749 |
| CA-HOD | HAND OPERATED LOCKING DETENT | (FACTORY INSTALLED) | 2 |
| Size (W X L) | 36" x 36"; 48" x 48"; 60" x 60" |
|---|---|
| Height | 2 11/16"; 2 13/16"; HAND OPERATED LOCKING DETENT |
| Plate Thickness | ¼"; 3/ " 8; 3/8" |
| Uniform Capacity | 4,000 lb.; 6,000 lb.; (FACTORY INSTALLED) |
Source: 2018 catalog, page 157. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists CA-KP-3636-4 through CA-HOD within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Size (W X L): 36" x 36"; 48" x 48"; 60" x 60"; Height: 2 11/16"; 2 13/16"; HAND OPERATED LOCKING DETENT. These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, page 157. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for heavy-duty kingpin carousels?
The catalog records 7 model references for this family. The first listed model is CA-KP-3636-4. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right heavy-duty kingpin carousels configuration?
Compare the documented model configurations with the task, available space and installation conditions. Include the relevant dimensions and operating requirements in your quote request.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
