SKU STPC-CD
Stand Alone Powered Carousels
Stand Alone Powered Carousels: 2 catalog model references. R.P.M.: 3-12; 8; Height: 24"; 13½".
- R.P.M.
- 3-12; 8
- Height
- 24"; 13½"
Open an image to inspect its original detail.
Specifications & options
| MODEL NUMBER | USABLE DIAMETER | OVERALL DIAMETER | HEIGHT | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|

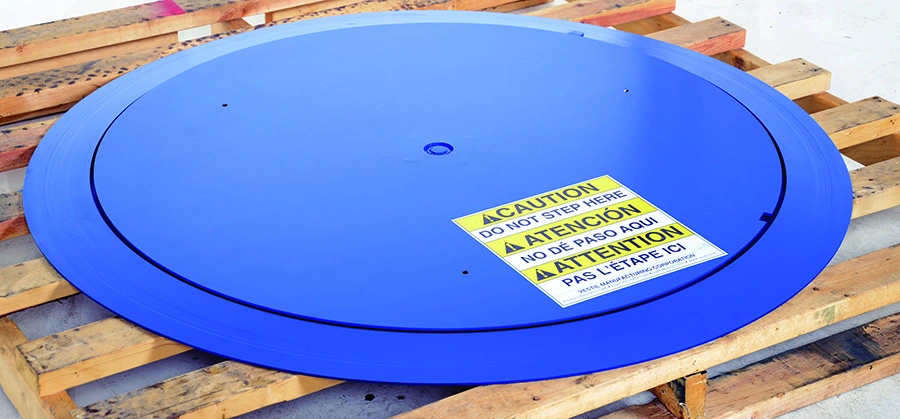

| LP-4000T | 51" | 59 11/16" | 7/8" | 4,000 lb. | 300 |
| LP-4000T-45 | 45" | 53 11/16" | 7/8" | 4,000 lb. | 278 |
| LP-4000T-39 | 39" | 47 11/16" | 7/8" | 4,000 lb. | 232 |

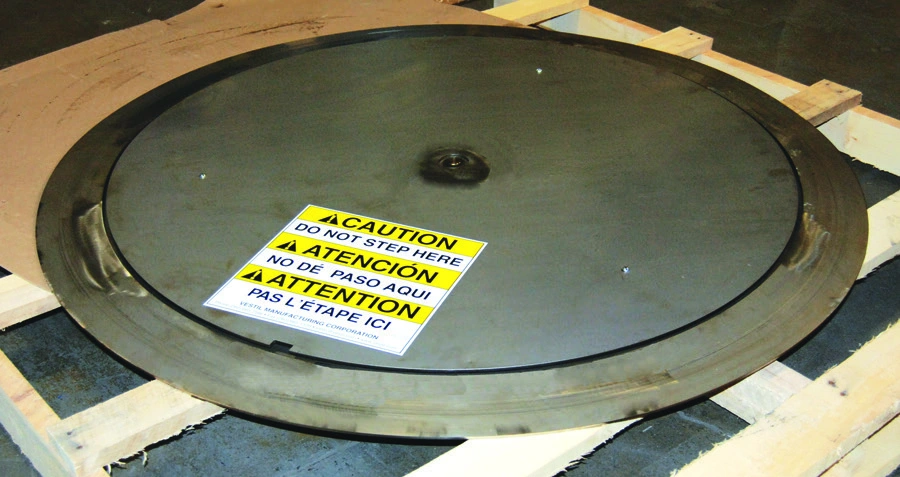

| LP-4000T-SS | 51" | 59 11/16" | 7/8" | 4,000 lb. | 300 |
| LP-4000T-45-SS | 45" | 53 11/16" | 7/8" | 4,000 lb. | 253 |
| LP-4000T-39-SS | 39" | 47 11/16" | 7/8" | 4,000 lb. | 206 |
| MODEL NUMBER | USABLE DIAMETER | OVERALL DIAMETER | HEIGHT | UNIFORM CAPACITY | WEIGHT (POUND) |
|---|---|---|---|---|---|
| LP-4000T-SS | 51" | 59 11/16" | 7/8" | 4,000 lb. | 300 |
| LP-4000T-45-SS | 45" | 53 11/16" | 7/8" | 4,000 lb. | 253 |
| LP-4000T-39-SS | 39" | 47 11/16" | 7/8" | 4,000 lb. | 206 |
| Usable Diameter | 51"; 45"; 39" |
|---|---|
| Overall Diameter | 59 11/16"; 53 11/16"; 47 11/16" |
| Height | 7/8" |
| Uniform Capacity | 4,000 lb. |
Source: 2018 catalog, pages 157, 410. Confirm current specifications and options for the selected model.
PRODUCT INFORMATION
Equipment overview
Compare the documented dimensions, capacities and model options with the intended application. Include installation, access and operating requirements when requesting a quote.
The catalog lists LP-4000T through LP-4000T-39-SS within this family. Use the comparison tables below to check the documented specifications for each reference. Accessories and optional configurations are identified separately where the source provides them.
Configuration details in this range include Usable Diameter: 51"; 45"; 39"; Overall Diameter: 59 11/16"; 53 11/16"; 47 11/16". These values cover multiple models; consult the individual row for the model being quoted.
These specifications come from the 2018 catalog. Current design, options and availability must be confirmed with your quote. Include the model reference, quantity, application, delivery address and required timing.
Documentation & drawings
Reference: 2018 product catalog, pages 157, 410. The model tables above reproduce the documented configurations.
Request the current model-specific manual, dimensional drawings and installation requirements for your application. Confirm any required compliance documentation with the quote.
Request model documentation ↗Questions about this equipment
Which models are listed for thin spins - pallet truck loadable carousel?
The catalog records 6 model references for this family. The first listed model is LP-4000T. Compare the model rows and confirm the required configuration when quoting.
How do I choose the right thin spins - pallet truck loadable carousel configuration?
Consider the load dimensions, route width and loading or unloading method together. Check the selected configuration’s listed capacity and dimensions against the job.
Are these current product specifications?
The comparison tables reflect the 2018 catalog. Current specifications, options and availability require confirmation for the selected model.
